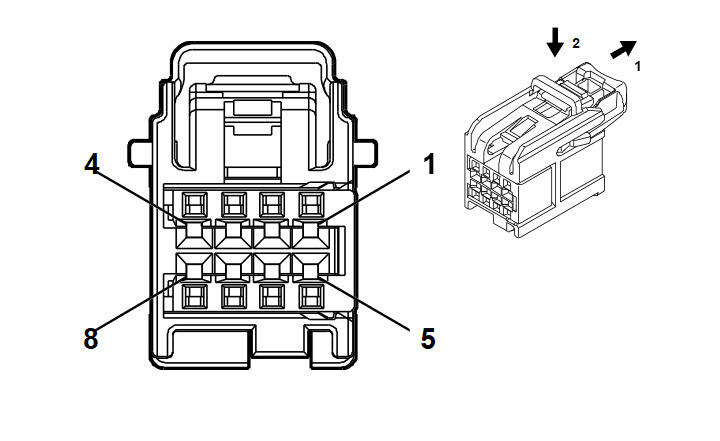

K194 Rear Gate Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 13591515
- Service Connector: 19370429
- Description: 8-Way F 0.64 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
WH |
4100 |
AUTOSAR CAN Bus [-] 4 Serial Data |
I |
- |
| 3 |
0.35 |
WH |
4100 |
AUTOSAR CAN Bus [-] 4 Serial Data |
I |
- |
| 4 |
0.35 |
BU / VT |
4101 |
AUTOSAR CAN Bus [+] 4 Serial Data |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
BU / VT |
4101 |
AUTOSAR CAN Bus [+] 4 Serial Data |
I |
- |
| 7 |
0.35 |
WH |
4100 |
AUTOSAR CAN Bus [-] 4 Serial Data |
I |
- |
| 8 |
0.35 |
BU / VT |
4101 |
AUTOSAR CAN Bus [+] 4 Serial Data |
I |
- |
