Fastener Specifications

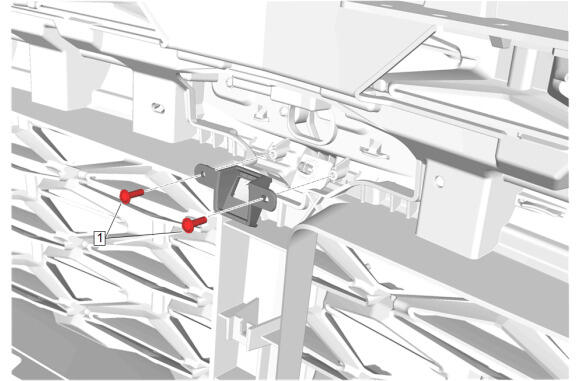

Front View Driver Information Camera
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Grille Bolt [2x] | - | - | 2.5 N.m (29 lb in) | Front View Driver Information Camera Replacement |

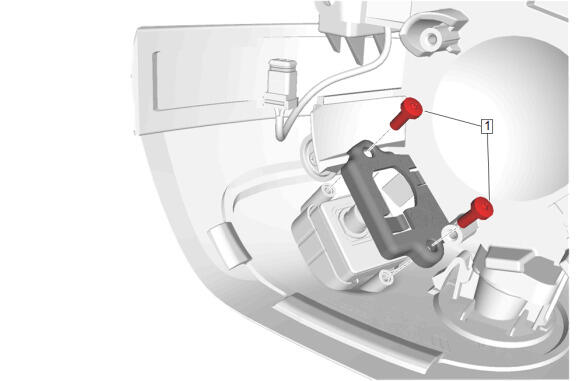

Side View Driver Information Camera
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Side View Driver Information Camera Bolt [2x] | - | - | 0.76 N.m (7 lb in) | Side View Driver Information Camera Replacement |

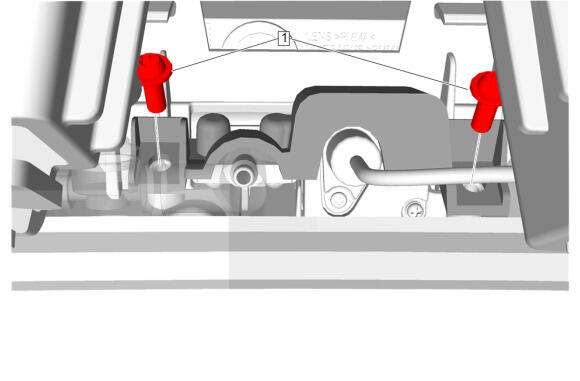

Video Display Inside Rearview Mirror Camera
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Video Display Inside Rearview Mirror Camera Bracket Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Video Display Inside Rearview Mirror Camera Replacement |

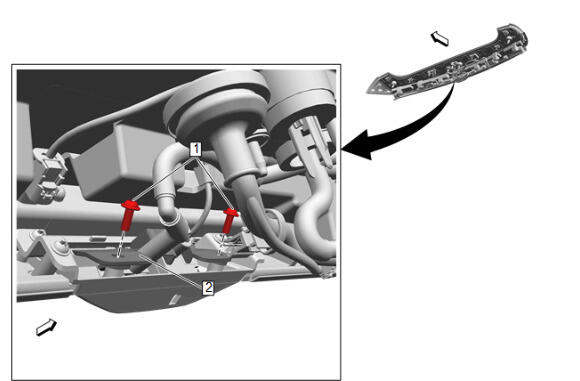

Video Display Inside Rearview Mirror Camera Nozzle
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Video Display Inside Rearview Mirror Camera Bracket Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Video Display Inside Rearview Mirror Camera Nozzle Replacement |
Video Display Inside Rearview Mirror Camera Nozzle
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Video Display Inside Rearview Mirror Camera Bracket Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Video Display Inside Rearview Mirror Camera Nozzle Replacement |
