Installation Procedure

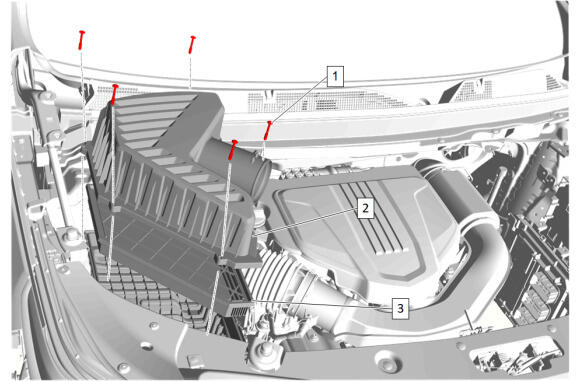

  1. GM6382544Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Element (3) - Install

  2. Air Cleaner Upper Housing (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Air Cleaner Upper Housing Bolt (1) - Install and tighten [5x] - Fastener Specifications
  4. Connect the electrical connector.

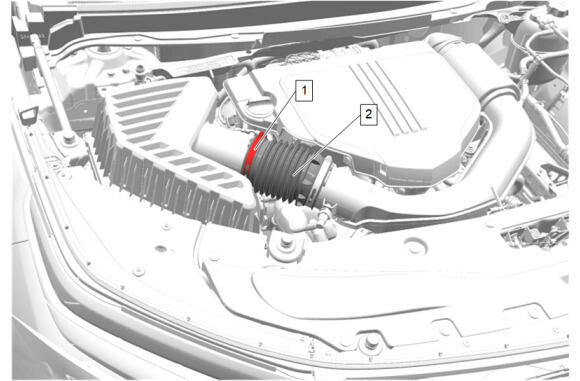

  5. GM6528681Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
