Installation Procedure

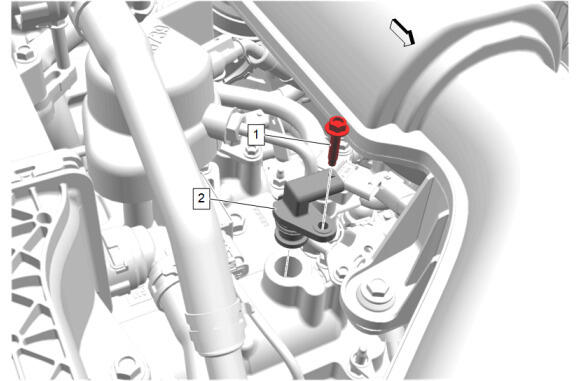

GM6396099Courtesy of GENERAL MOTORS COMPANY
  1. Camshaft Position Sensor (2) - Install
    2. CAUTION:

    Refer to Fastener Caution .

  2. Camshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.
  4. GM6382159Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap (1) - Remove

  5. GM6382158Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) - Install

  6. Oil Filler Cap - Install
