Installation Procedure

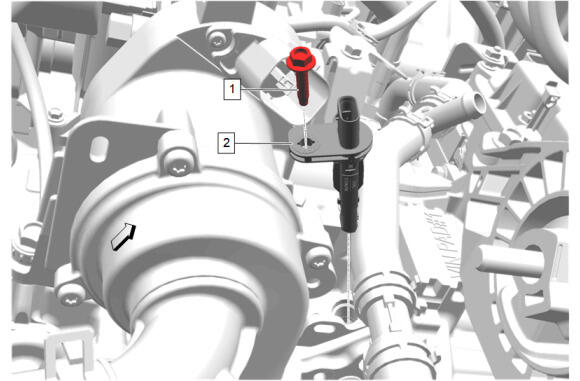

Crankshaft Position Sensor (2) - Install
- Crankshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
- Connect the electrical connector.

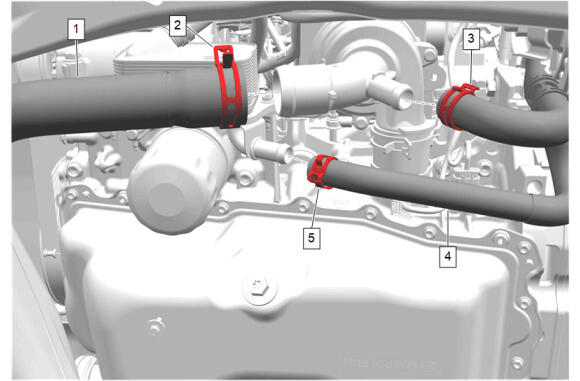

Water Pump Inlet Hose (4) @ Engine Oil Cooler - Install
- Hose Clamp (5) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Water Pump Inlet Hose (4) @ Water Pump Module - Install
- Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Install underbody panels as necessary. Underbody Panel Component Locator
- Fill the cooling system. Cooling System Draining and Filling (GE 47716)
- Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
CAUTION:
Refer to Fastener Caution .
