Removal Procedure

Relieve the fuel system pressure. Fuel Pressure Relief
Drain the fuel tank. Fuel Tank Draining
Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the propeller shaft. Two-Piece Propeller Shaft Replacement
Using a suitable jack stand, support the differential carrier assembly.
Courtesy of GENERAL MOTORS COMPANY

Differential Carrier Front Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Lower the support stand to gain access to the 6 driveline torque tube bolts.
Remove the 6 driveline torque tube bolts (1) from the differential carrier assembly.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The driveline torque tube and differential carrier are balanced as an assembly. When re-using the original driveline torque tube it should be re-installed in the same position in relation the pinion splines.

Slowly separate the driveline torque tube from the differential carrier and use a paint pen, or a suitable marker, to mark the relationship of the driveline torque tube splined shaft to the differential carrier pinion (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
If any fluid is found in the torque tube, check the condition of pinion oil seal.

Driveline Torque Tube (1) @ Differential Carrier Assembly - Remove
Rear Wheel Drive Differential Carrier Housing Gasket (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

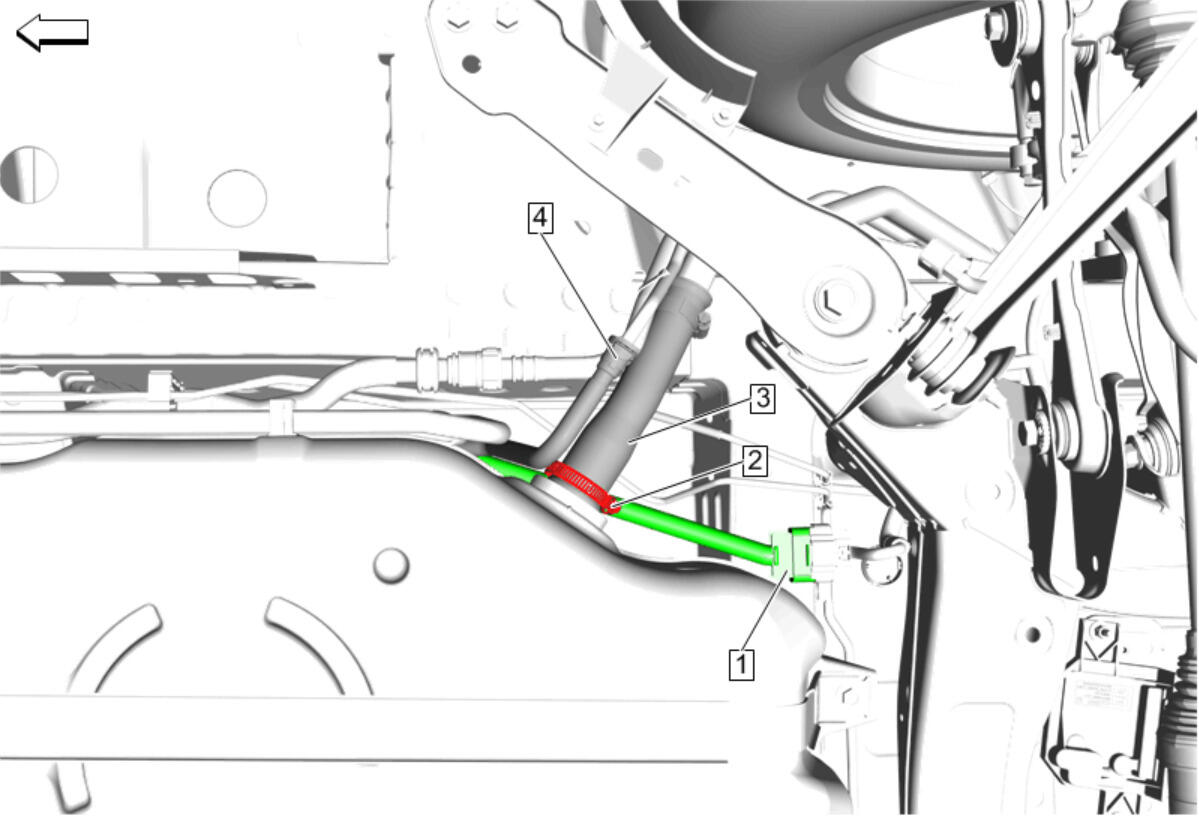

Wiring Harness (1) - Disconnect
Fuel Tank Filler Hose Clamp (2) - Loosen
Fuel Tank Filler Hose (3) - Remove
Evaporative Emission Canister Vent Hose (4) - Disconnect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

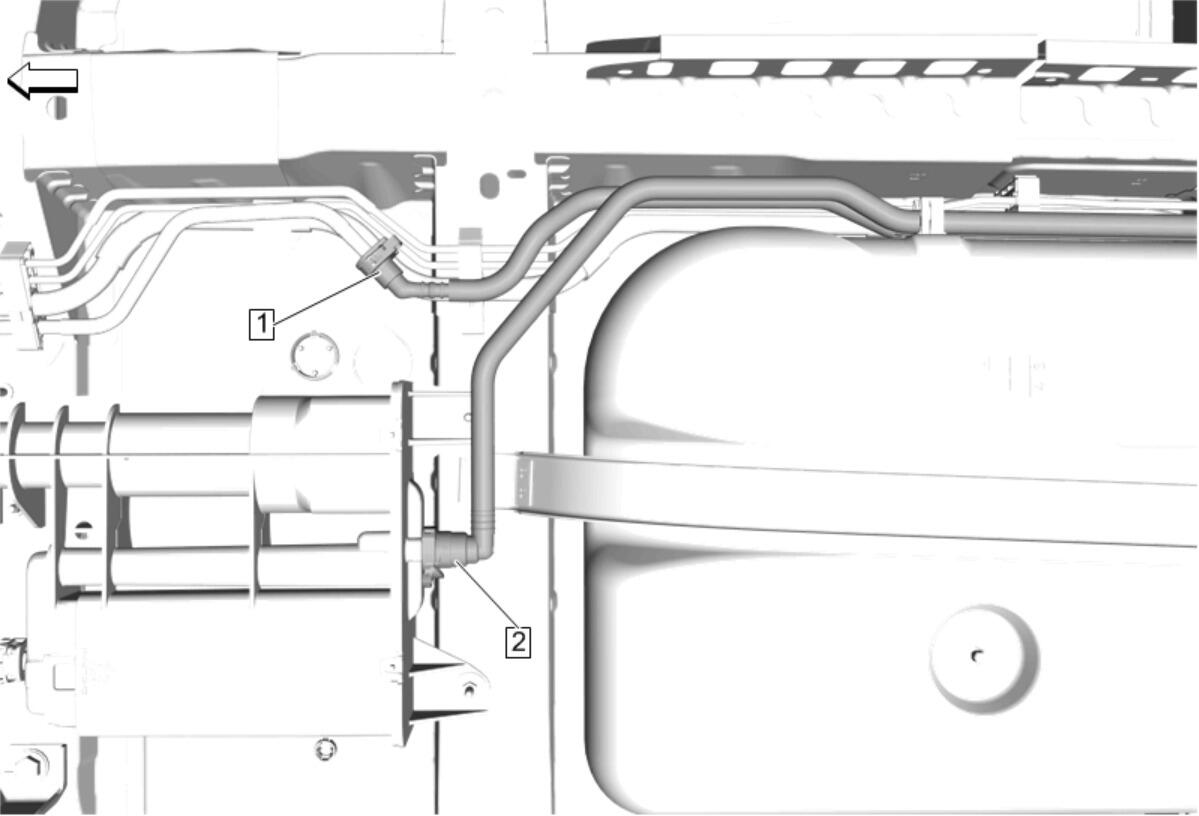

Fuel Pump Fuel Feed Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Vent Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Disconnect the hose and wiring harness retainers as necessary.
Courtesy of GENERAL MOTORS COMPANY

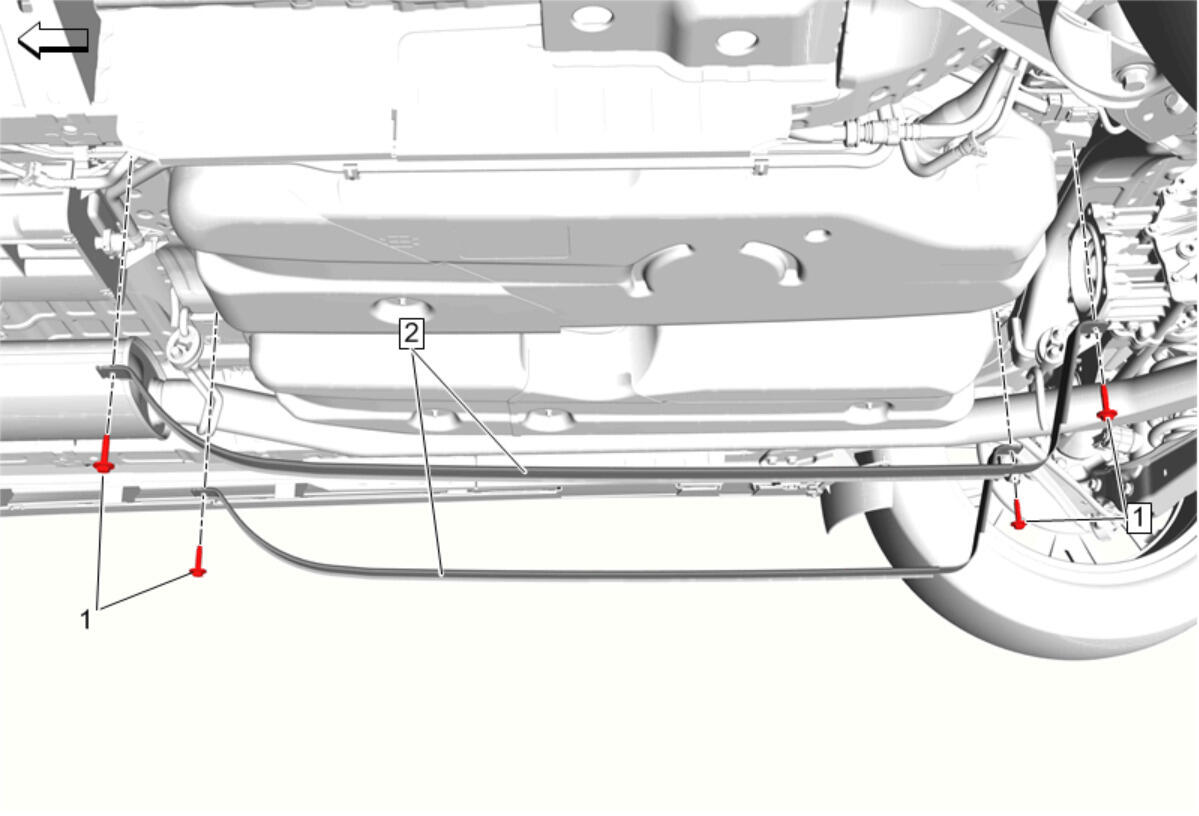

Place a suitable adjustable jack under the fuel tank.
Fuel Tank Strap Bolt (1) - Remove [4x]
Fuel Tank Strap (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

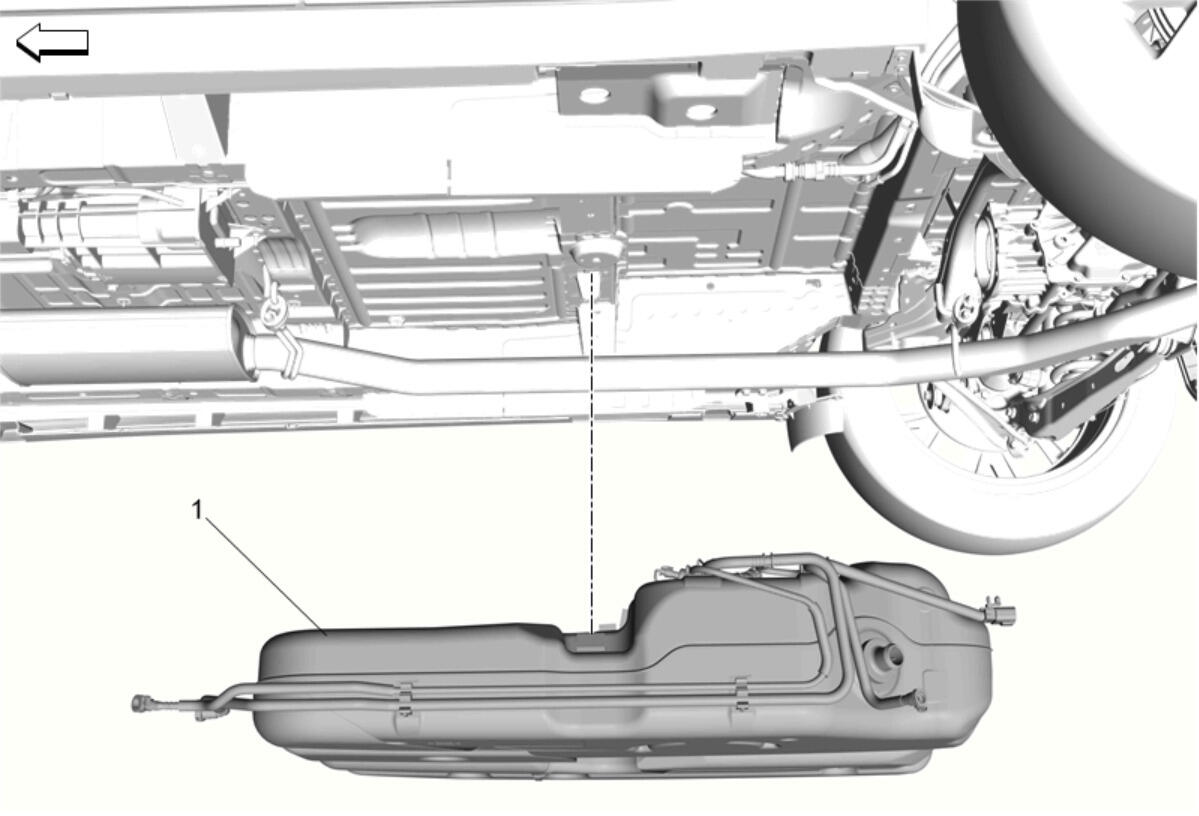

Fuel Tank (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

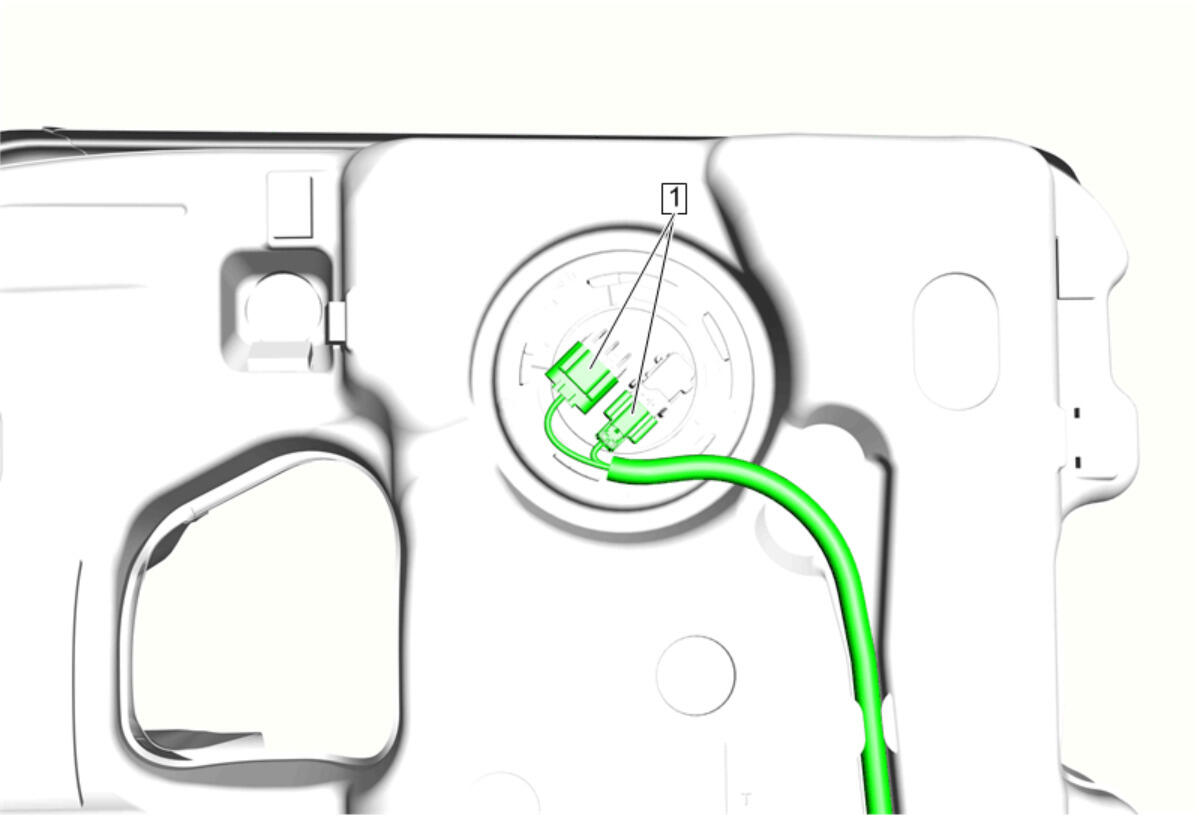

Electrical Connector (1) - Disconnect [2x]
Courtesy of GENERAL MOTORS COMPANY

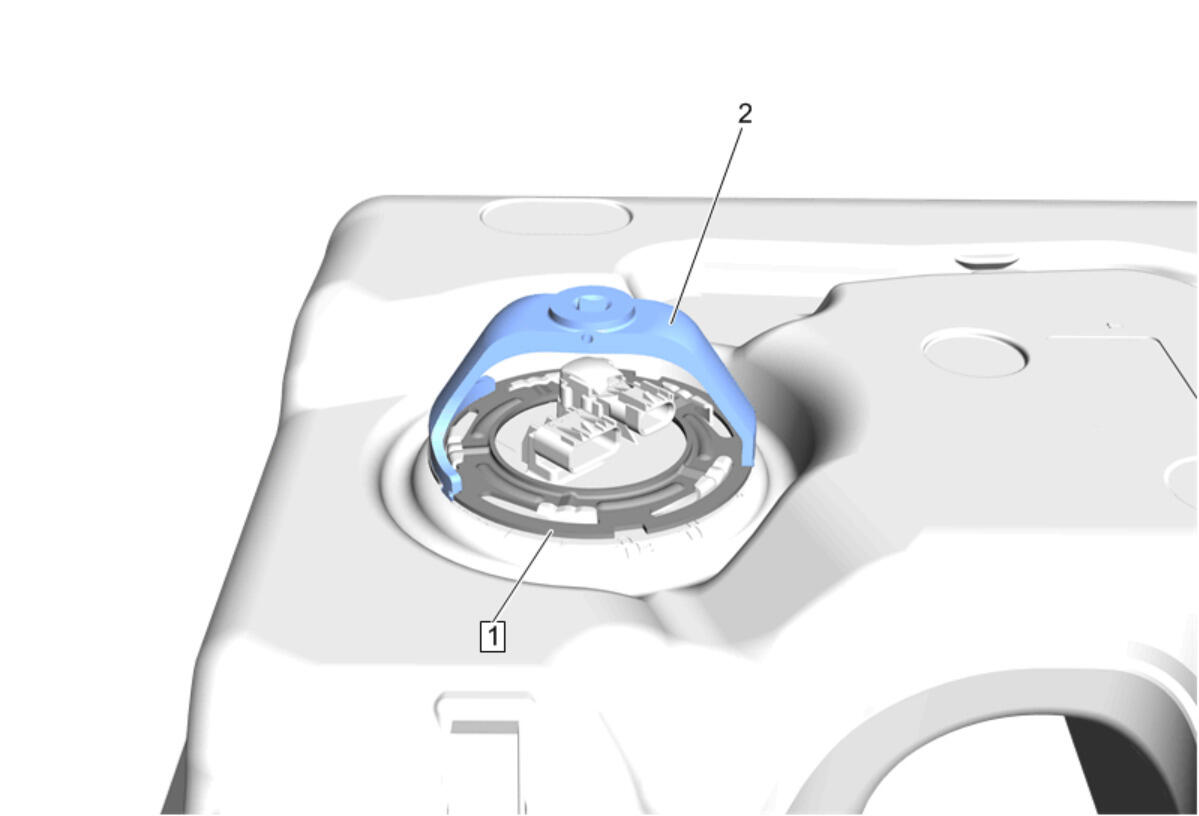

Fuel Sender Retaining Ring (1) - Remove - CH - 48482 Fuel Sender Lock Ring Wrench (2)
Courtesy of GENERAL MOTORS COMPANY

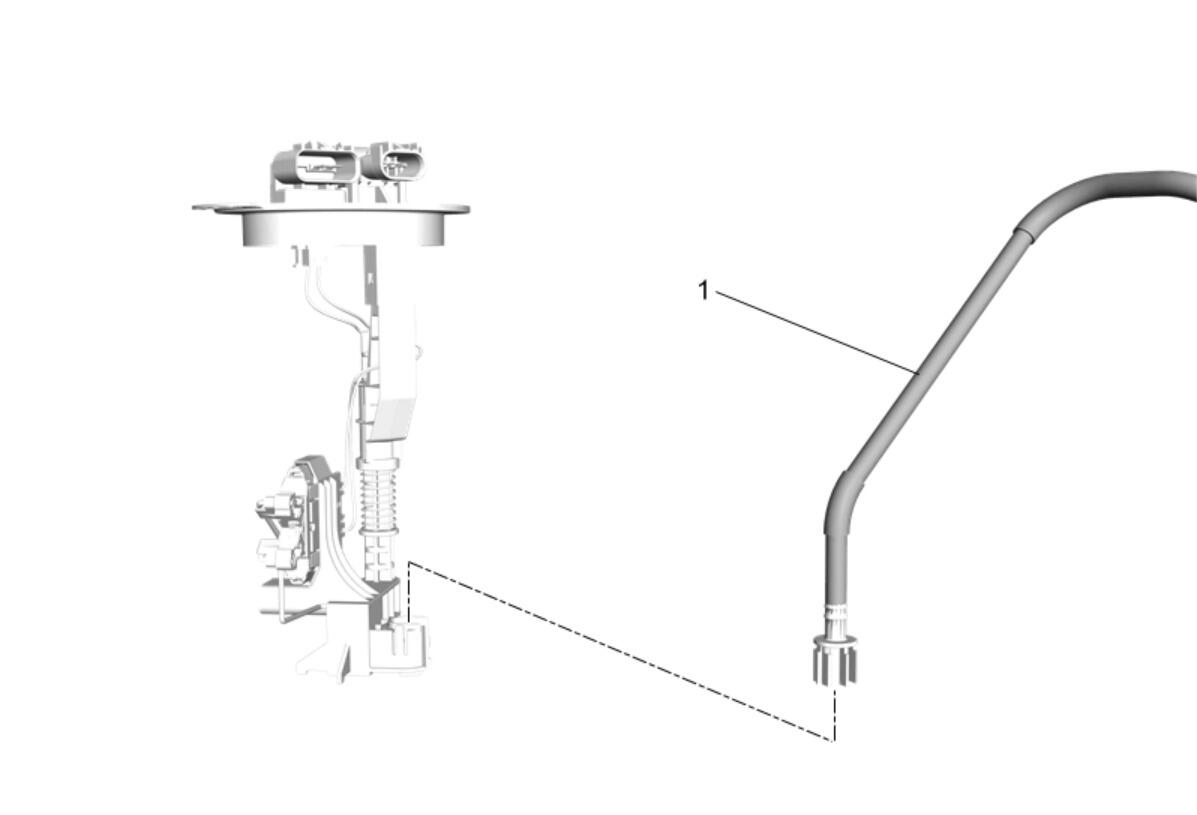

Transfer Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

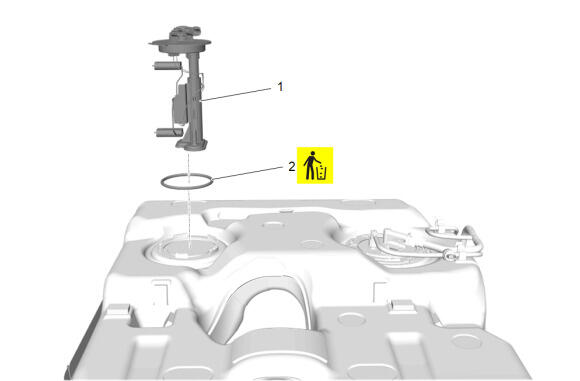

Fuel Sender (1) - Remove
Fuel Sender Seal (2) - Remove and DISCARD
