Installation Procedure

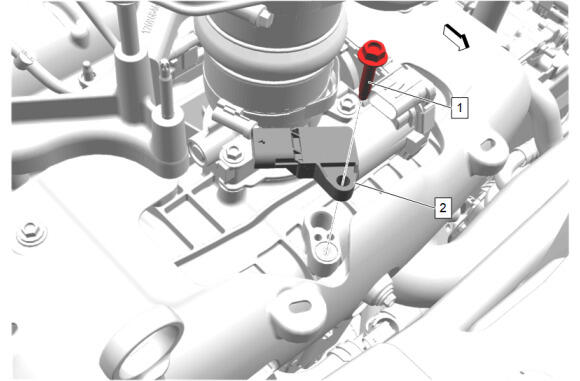

GM6397526Courtesy of GENERAL MOTORS COMPANY
  1. Intake Air Pressure and Temperature Sensor (2) - Install
    2. CAUTION:

    Refer to Fastener Caution .

  2. Intake Air Pressure and Temperature Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.
  4. GM6405033Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (4) - Install

  5. Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
  6. Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
  7. Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
  8. Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
  9. GM6396380Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service

  10. GM6382159Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap (1) - Remove

  11. GM6382158Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) - Install

  12. Oil Filler Cap - Install
