Installation Procedure

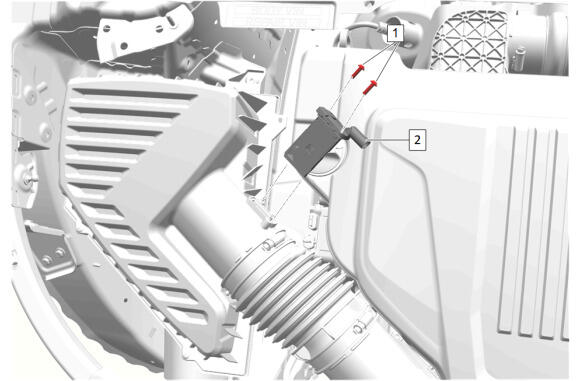

  1. GM6382301Courtesy of GENERAL MOTORS COMPANY

    Mass Airflow Sensor (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Mass Airflow Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
