Fastener Specifications

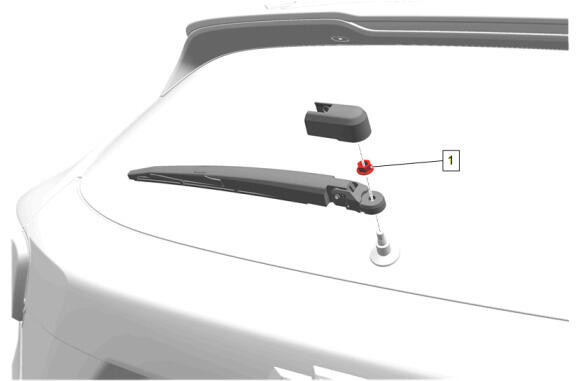

GM5950515Courtesy of GENERAL MOTORS COMPANY
Rear Window Wiper Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Window Wiper Arm Nut - - 10 N.m (89 lb in) Rear Window Wiper Arm Replacement

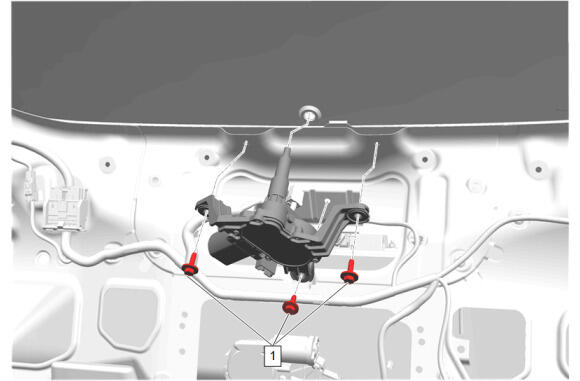

GM5950514Courtesy of GENERAL MOTORS COMPANY
Rear Window Wiper Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Window Wiper Motor Bolt [3x] - - 9 N.m (80 lb in) Rear Window Wiper Motor Replacement

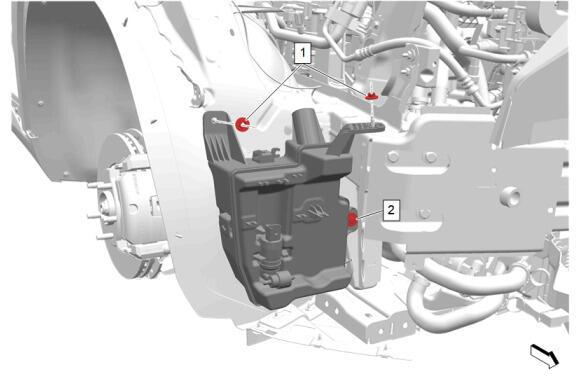

GM5950513Courtesy of GENERAL MOTORS COMPANY
Windshield Washer Solvent Container

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Washer Solvent Container Nut [2x] - - 5 N.m (44 lb in) Windshield Washer Solvent Container Replacement
2 Windshield Washer Solvent Container Bolt - - 5 N.m (44 lb in)

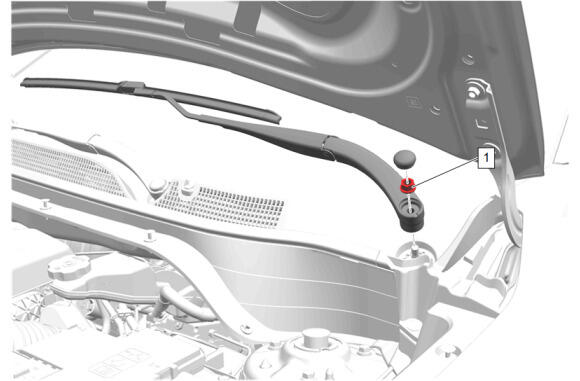

GM5950516Courtesy of GENERAL MOTORS COMPANY
Windshield Wiper Arm

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper Arm Nut - - 25 N.m (18 lb ft) Windshield Wiper Arm Replacement
GM5950517Courtesy of GENERAL MOTORS COMPANY
Windshield Wiper Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper Motor Bolt [2x] - - 13.5 N.m (119 lb in) Windshield Wiper Motor Replacement

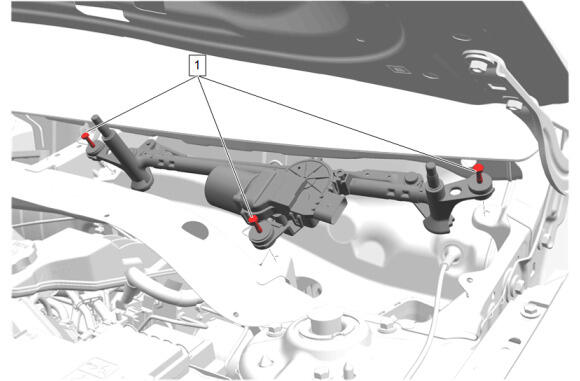

GM5950518Courtesy of GENERAL MOTORS COMPANY
Windshield Wiper System Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Wiper System Module Bolt [3x] - - 9 N.m (80 lb in) Windshield Wiper Transmission Replacement

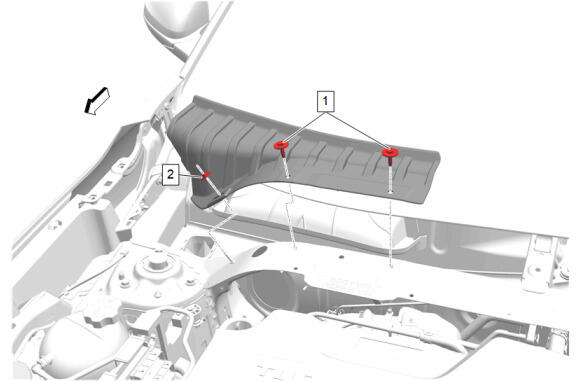

GM5950512Courtesy of GENERAL MOTORS COMPANY
Air Inlet Grille Panel Water Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Inlet Grille Panel Water Deflector Bolt [2x] - - 4.7 N.m (42 lb in) Air Inlet Grille Panel Water Deflector Replacement
2 Air Inlet Grille Panel Water Deflector Nut - - 4.7 N.m (42 lb in)
