Accelerator Pedal Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

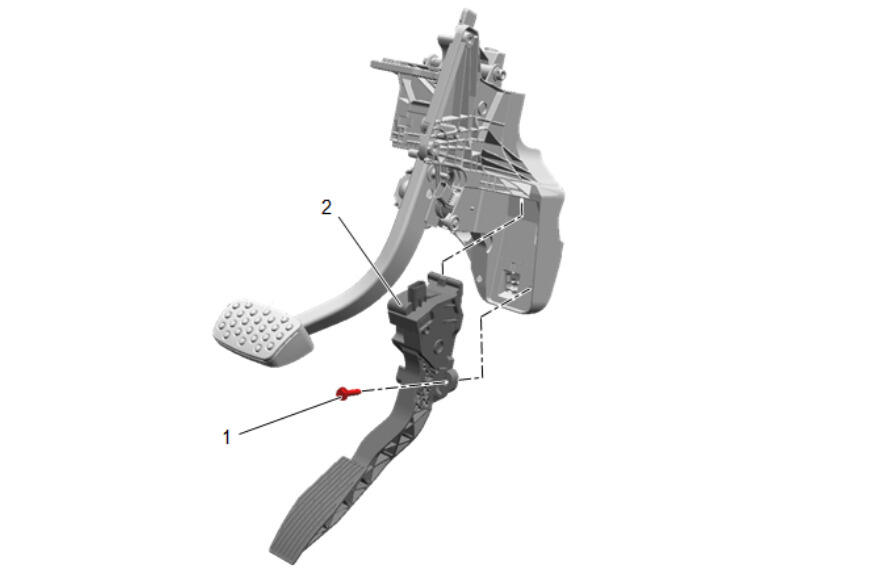

Callout	Component Name
1	Accelerator Pedal Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Accelerator Pedal Position Sensor Procedure Disconnect the electrical connector. Transfer accelerator pedal pad to pedal.

Callout

Component Name

Accelerator Pedal Position Sensor Fastener

CAUTION:

Tighten
3.5 N.m (31 lb in)

Accelerator Pedal Position Sensor

Procedure
