Installation Procedure

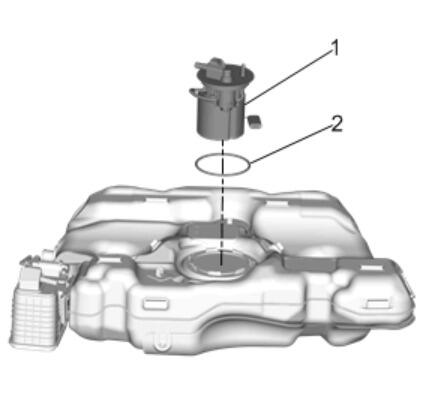

  1. GM4230590Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install New

  2. Fuel Tank Fuel Pump Module (1) - Install

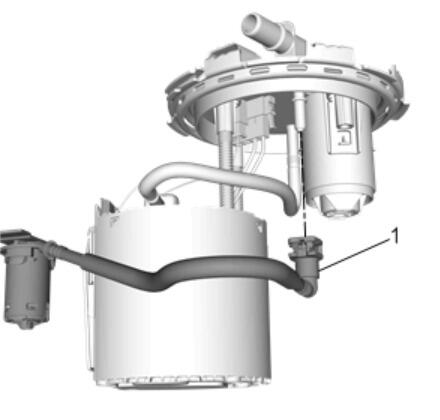

  3. GM4240201Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Vent Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

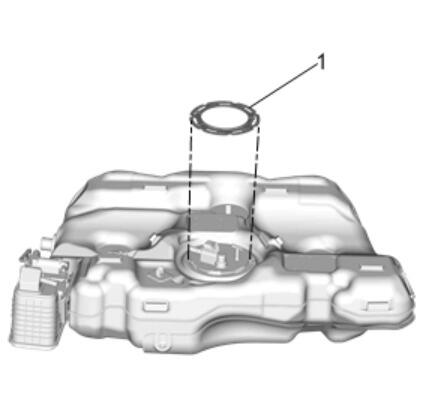

  4. GM4230523Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Install - CH 45722  Fuel Sender Lock Ring Wrench

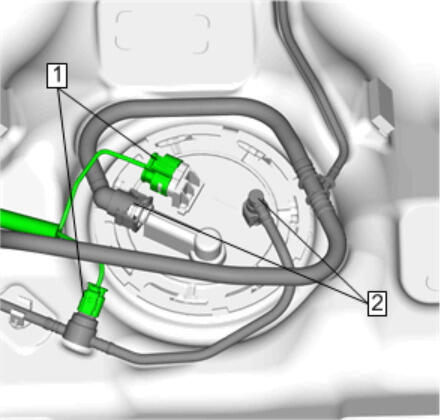

  5. GM4230507Courtesy of GENERAL MOTORS COMPANY

    Fuel and EVAP Pipe (2) - Connect [2x] - Plastic Collar Quick Connect Fitting Service

  6. Electrical Connector (1) @ Fuel Tank Fuel Pump Module - Connect [2x]
  7. Fuel Tank Replacement  - Install
