Fuel Tank Pressure Sensor Replacement

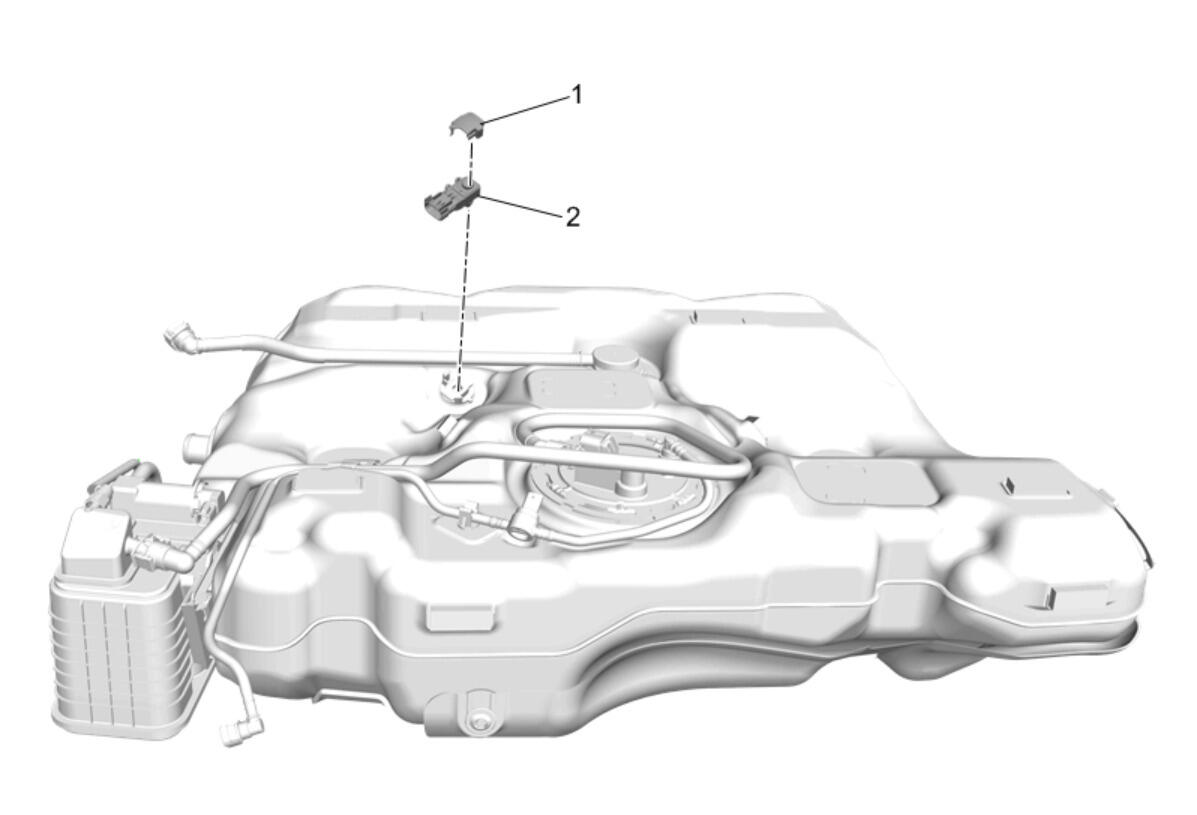

GM5126071Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement
1 Fuel Tank Pressure Sensor Cover
Procedure
Release the retaining tabs.
2 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
