Installation Procedure

WARNING: This page is about a different car, the 2024 Chevrolet Silverado EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure all retaining tabs are fully engaged.

Driver Monitoring Camera (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

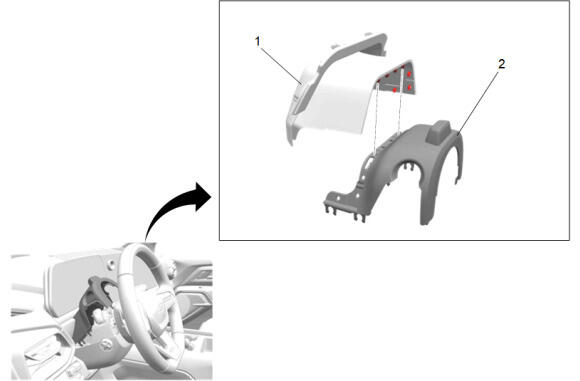

Clip the instrument panel steering column opening closeout (1) to the instrument panel steering column upper trim cover (2).
Courtesy of GENERAL MOTORS COMPANY

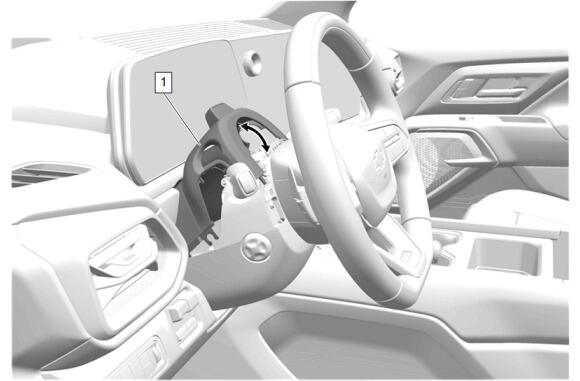

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
