Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5569954Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Opening Bezel (1) - Disengage

  3. GM5569956Courtesy of GENERAL MOTORS COMPANY

    Quarter Window Trim Finish Panel Bolt Cap (1) - Remove

  4. Quarter Window Trim Finish Panel Bolt (2) - Remove
  5. GM5569959Courtesy of GENERAL MOTORS COMPANY

    Using a flat bladed plastic trim tool, release the retaining clips.

    6. NOTE:

    The body lock pillar upper trim panel does not need to be fully removed from the vehicle.

  6. Body Lock Pillar Upper Trim Panel (1) - Reposition

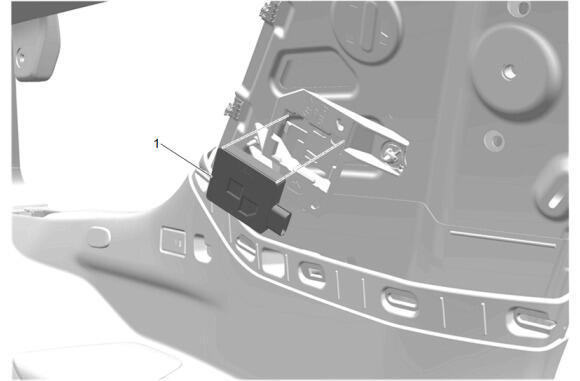

  7. GM6742058Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, release the retaining tabs.

  8. Interior Object Detection Module (1) - Remove
  9. Disconnect the electrical connector.
