Installation Procedure

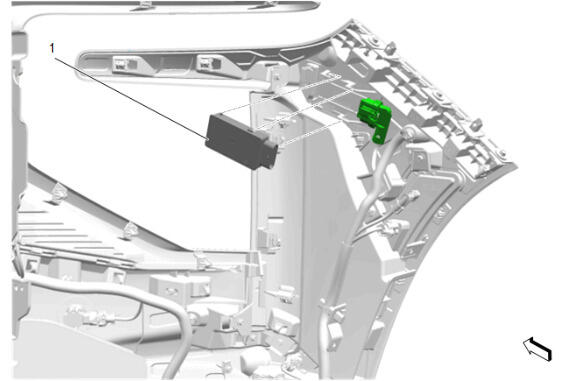

  1. GM6681178Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver - Position 1 (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.

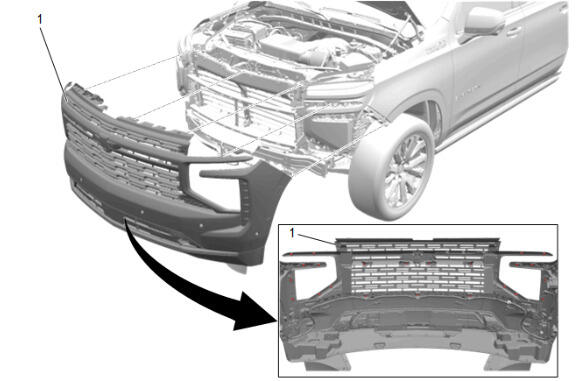

  4. GM6676923Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the fascia. (1) - Front Bumper Fascia Removal and Installation (- G0Q) , or Front Bumper Fascia Removal and Installation (G0Q)

  5. Perform the necessary programming and setup procedure: Digital Key Sensor Position Learn
