Installation Procedure

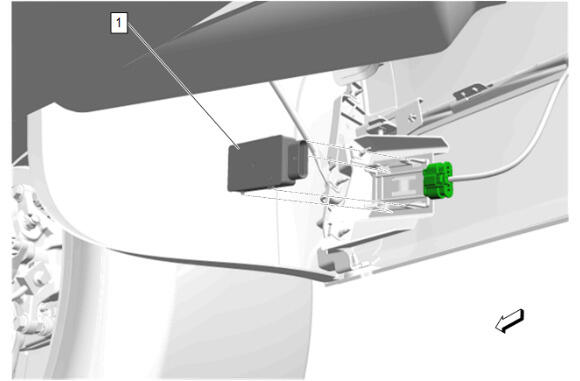

  1. GM6688307Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver - Position 2 (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector.
  4. Lower the vehicle.
  5. Perform the necessary programming and setup procedure: Digital Key Sensor Position Learn
