Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Wheel Speed Sensor Wiring Harness (1) - Install
Connect the electrical connector. (2)
Front Wheel Speed Sensor Retainer (3) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Wheel Speed Sensor Retainer (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Typical front wheel speed sensor bracket shown, actual image may vary based on option content.

NOTE:
Some components not shown for graphic clarity.

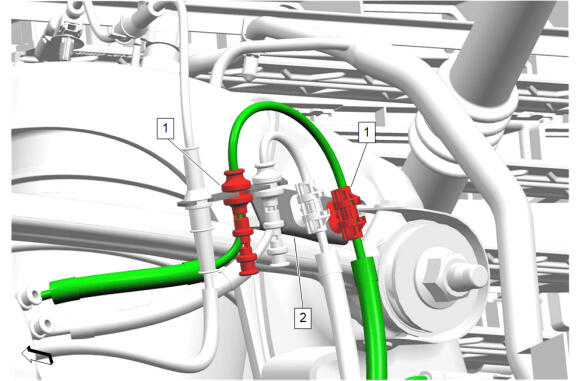

{If equipped} Wiring Harness (1) @ Front Wheel Speed Sensor Bracket (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket - Install
Courtesy of GENERAL MOTORS COMPANY

Front Wheel Speed Sensor Bracket (2) - Install

CAUTION:

Front Wheel Speed Sensor Bracket Bolt (1) - Install and tighten - Fastener Specifications
Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (3) and mounting pad on the front steering knuckle. Adhesives, Fluids, Lubricants, and Sealers
Front Wheel Speed Sensor (3) - Install
Front Wheel Speed Sensor Bolt (4) - Install and tighten - Fastener Specifications
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
Verify the repair is complete. Diagnostic Repair Verification
