Removal Procedure

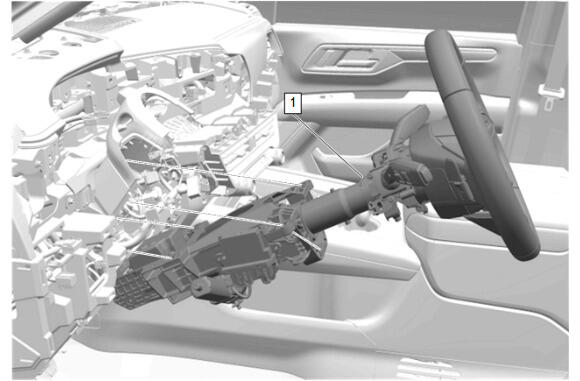

  1. GM6729984Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Remove - Steering Column Removal and Installation (UV6) , or Steering Column Removal and Installation (- UV6)

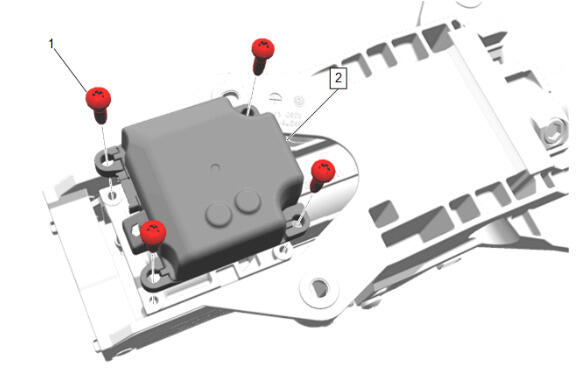

  2. GM6612304Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lock Control Module Bolt (1) - Remove [4x]

  3. Column Lock Module (2) - Remove
