Removal Procedure

  1. GM5515684Courtesy of GENERAL MOTORS COMPANY

    Use a flat-bladed plastic tool to remove the push-in retainers.

  2. Instrument Panel Lower Insulator Retainer (1) - Remove [2x]
  3. Disconnect the electrical connectors and reposition the wiring harness as necessary.
  4. GM5515685Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Remove

  5. GM5002004Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Bolt (1) - Remove

  6. GM5568663Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct (1) - Remove

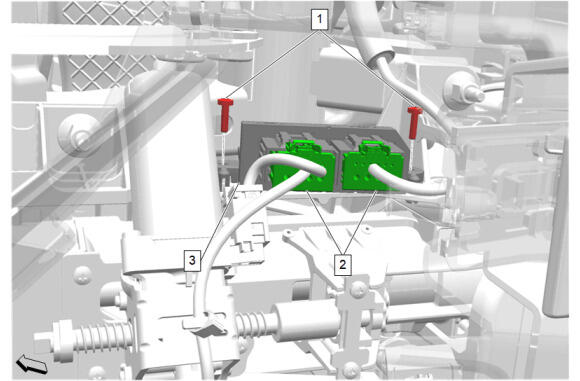

  7. GM6730261Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Disconnect the electrical connectors. (2)

  8. Steering Column Control Module Bracket Bolt (1) - Remove [2x]

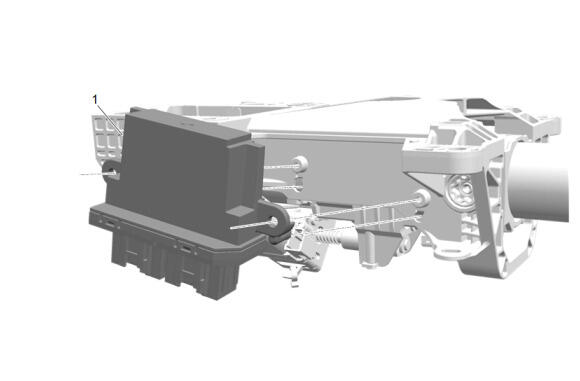

  9. GM6730281Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Steering Column Control Module (1) - Remove
