Installation Procedure
Connect the electrical connector.

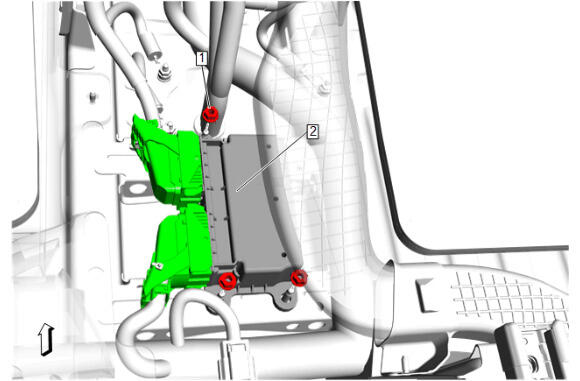

- Restraints Control Module (2) - Install
- Airbag Sensing and Diagnostic Module Nut (1) - Install and tighten [3x] - Fastener Specifications

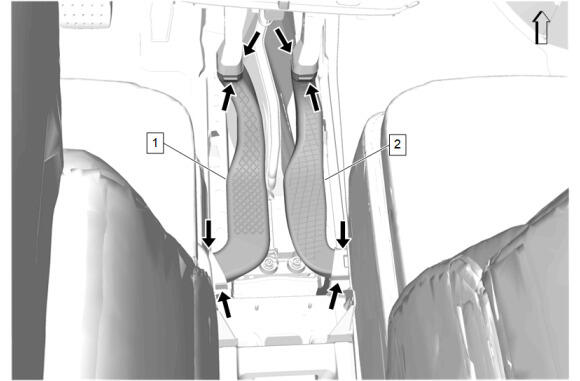

Floor Rear Air Outlet Duct Adapter - Left Side and Right Side (1, 2) - Install [2x]
- Front Floor Console - Install - Front Floor Console Removal and Installation
- Enable the SIR System. SIR Disabling and Enabling
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
