Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.

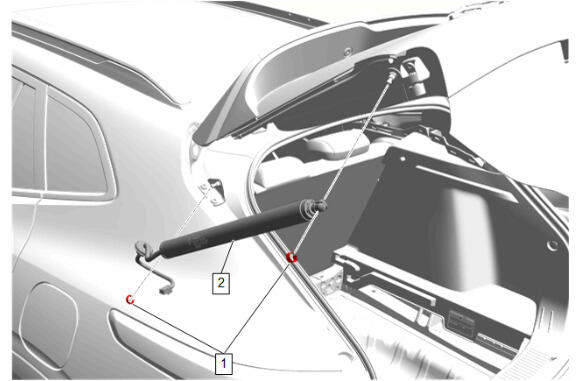

Liftgate Power Assist Actuator (2) - Install
Install the 2 metal clips (1) to end of the liftgate power assist actuator (2).
Courtesy of GENERAL MOTORS COMPANY

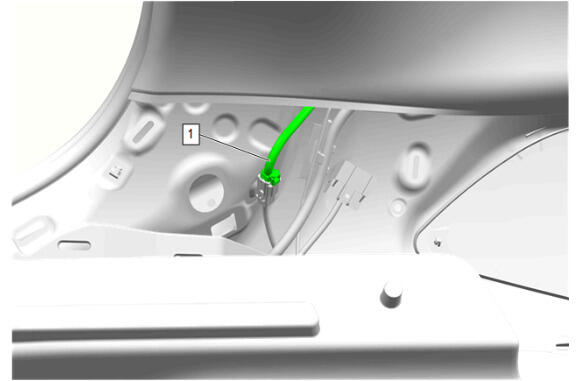

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Body Lock Pillar Upper Trim Panel (2) - Install
Quarter Window Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
Close the quarter window trim finish panel bolt cap.
