Installation Procedure

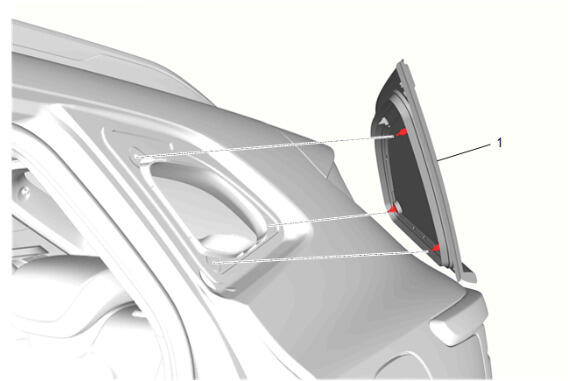

  1. GM5931167Courtesy of GENERAL MOTORS COMPANY

    Quarter Window (1) - Install - Adhesive Installation of Quarter Windows

  2. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  3. Remove any remaining adhesive residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe the surface dry with a clean lint-free towel.
