Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Rear Window (2) - Install - Adhesive Installation of Rear Windows
Courtesy of GENERAL MOTORS COMPANY

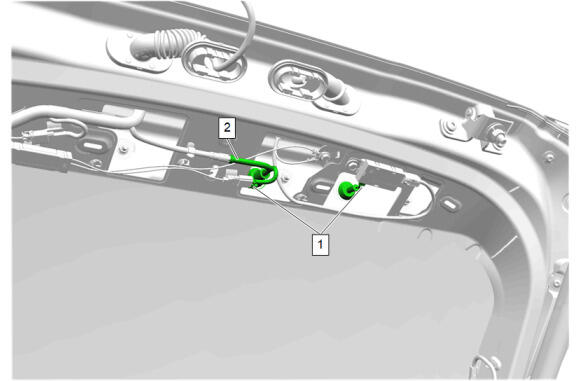

Rear Window Wiper Motor Grommet (1) - Install
Courtesy of GENERAL MOTORS COMPANY

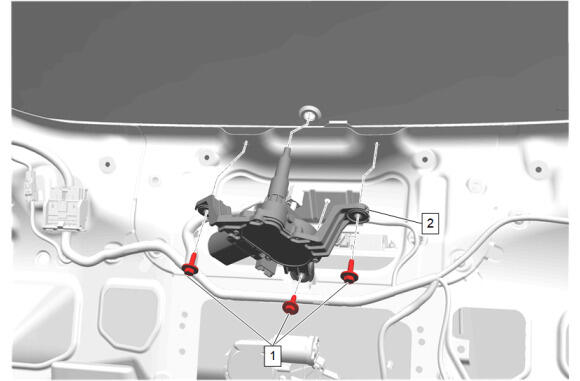

Rear Window Wiper Motor (2) - Install
Connect the electrical connector.

CAUTION:

Rear Window Wiper Motor Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

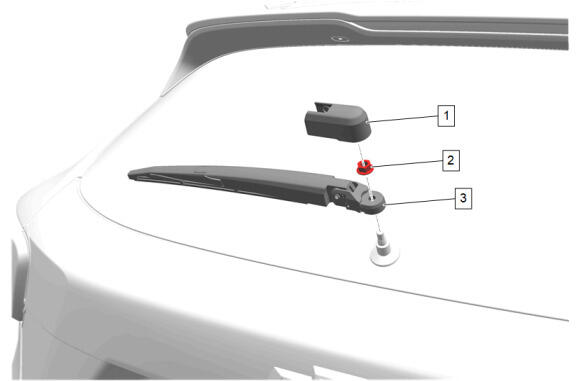

Rear Window Wiper Arm (3) - Install
Rear Window Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
Rear Window Wiper Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

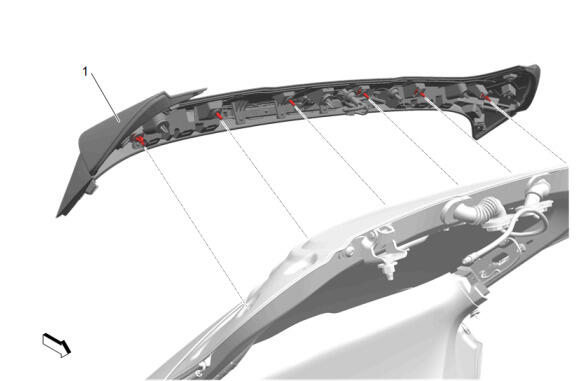

Rear End Spoiler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

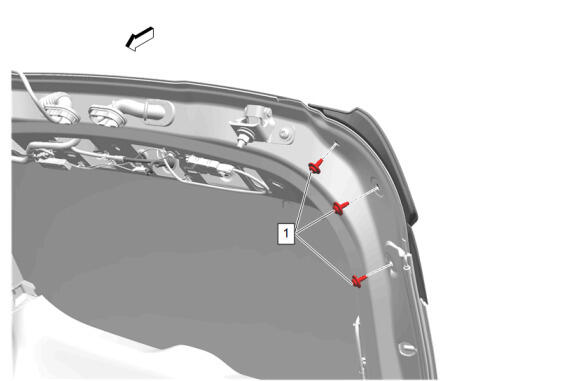

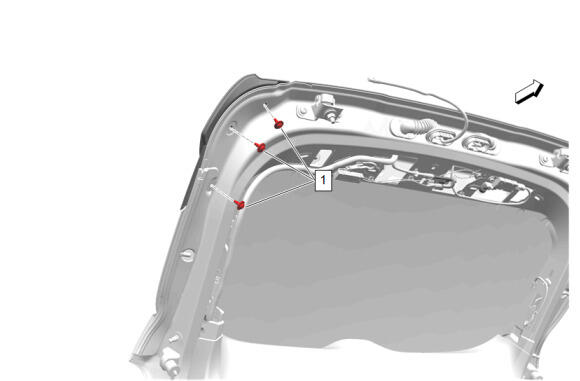

Rear End Spoiler Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear End Spoiler Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

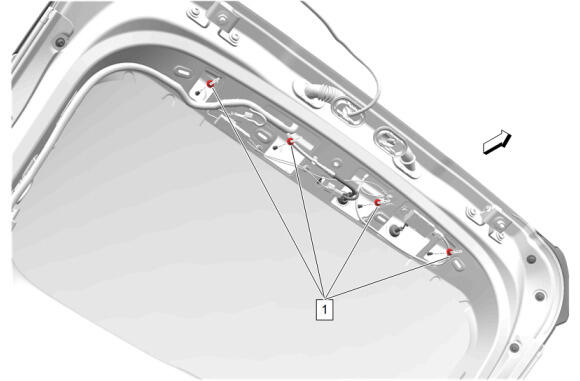

Rear End Spoiler Nut (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors. (1)
Rear Window Washer Nozzle Hose (2) - Connect
{If equipped} Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

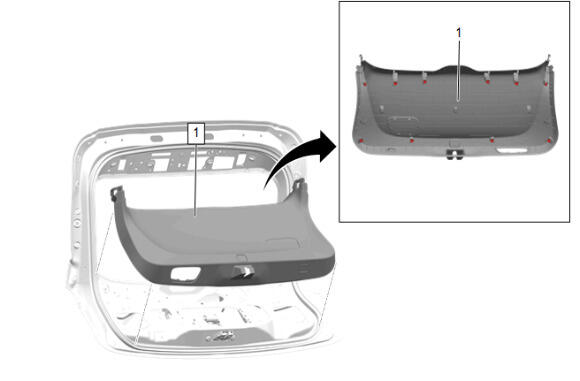

Liftgate Lower Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

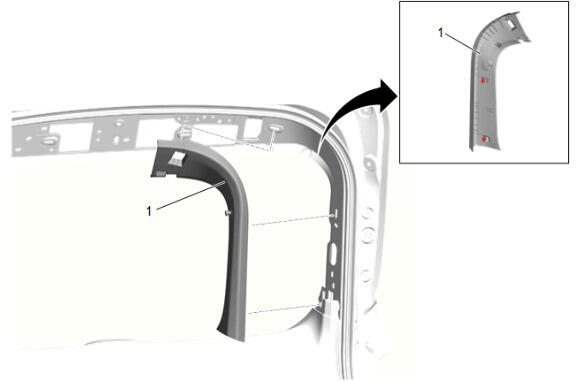

Liftgate Upper Side Trim Finish Panel (1) - Left Side and Right Side - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

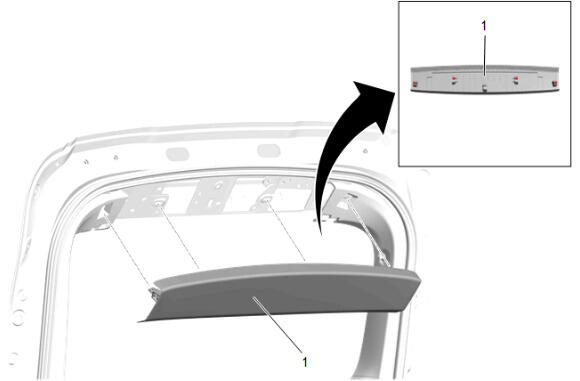

Liftgate Upper Center Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the liftgate trim finish panel pull cup (2).
Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
Close the liftgate.
