Wiring Harness

Disconnect wire harness connector under seat. Check for power between RED and BLK wires in female connector. If power is present, wiring to seat is good.

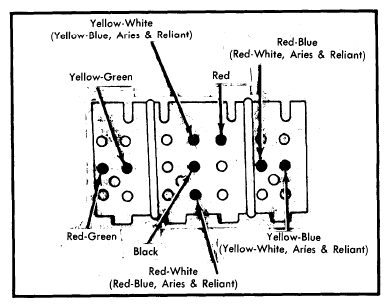

Fig 1: Master Switch Connector Test Points
G09317006Courtesy of CHRYSLER GROUP, LLC
