Computers and Control Systems: Locations

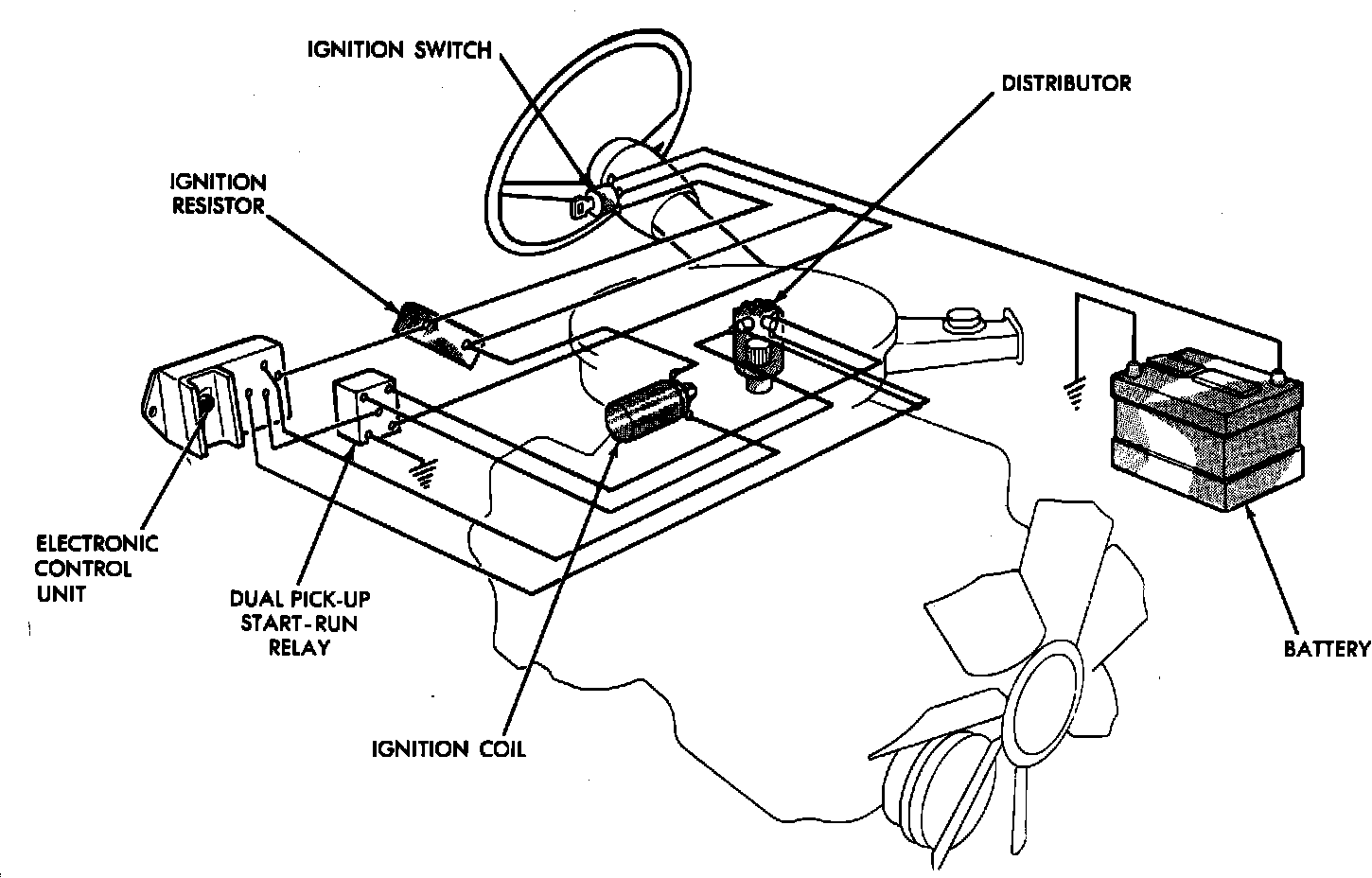

Electronic Ignition System Components:

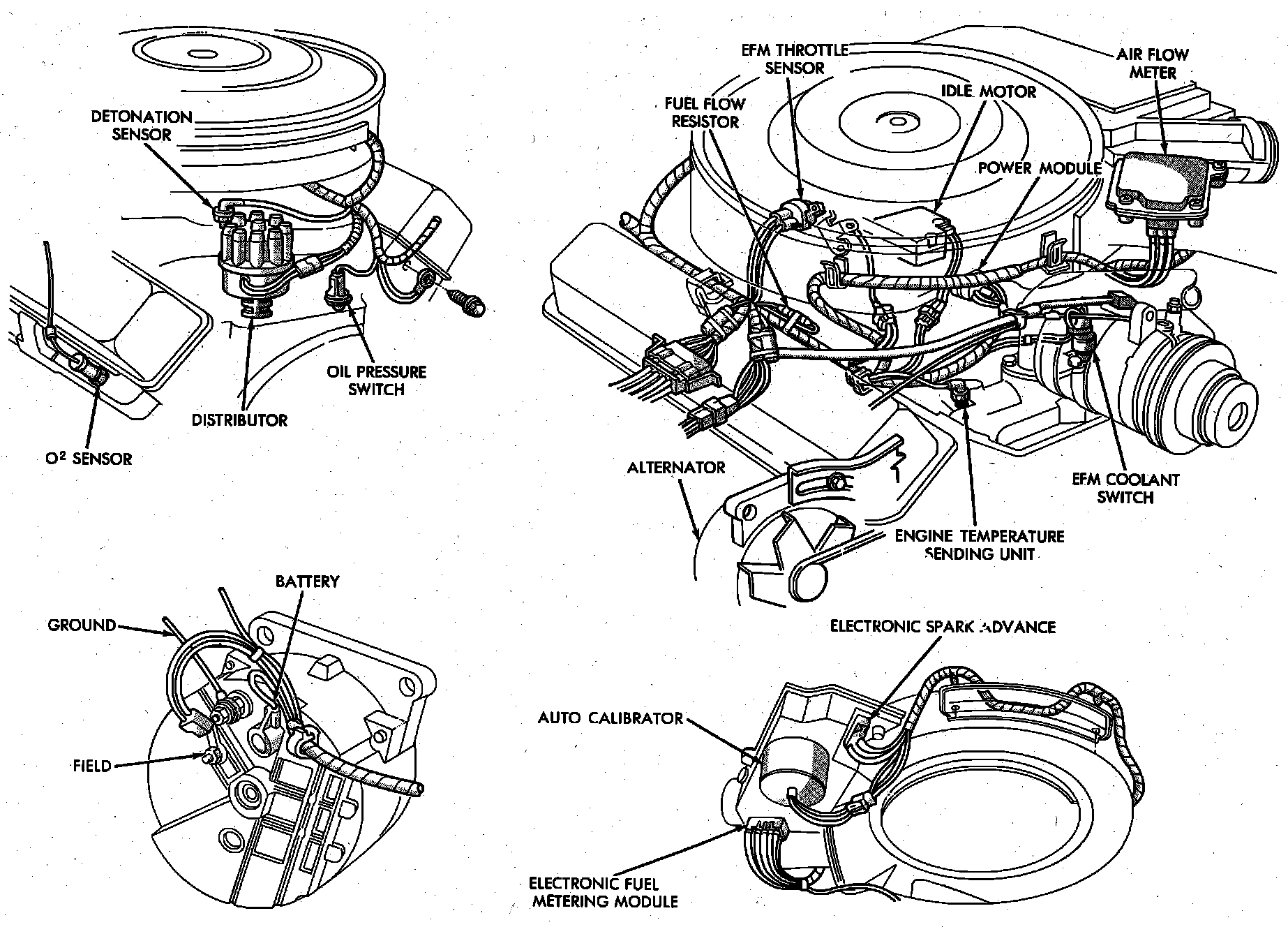

Engine Mounted Components:

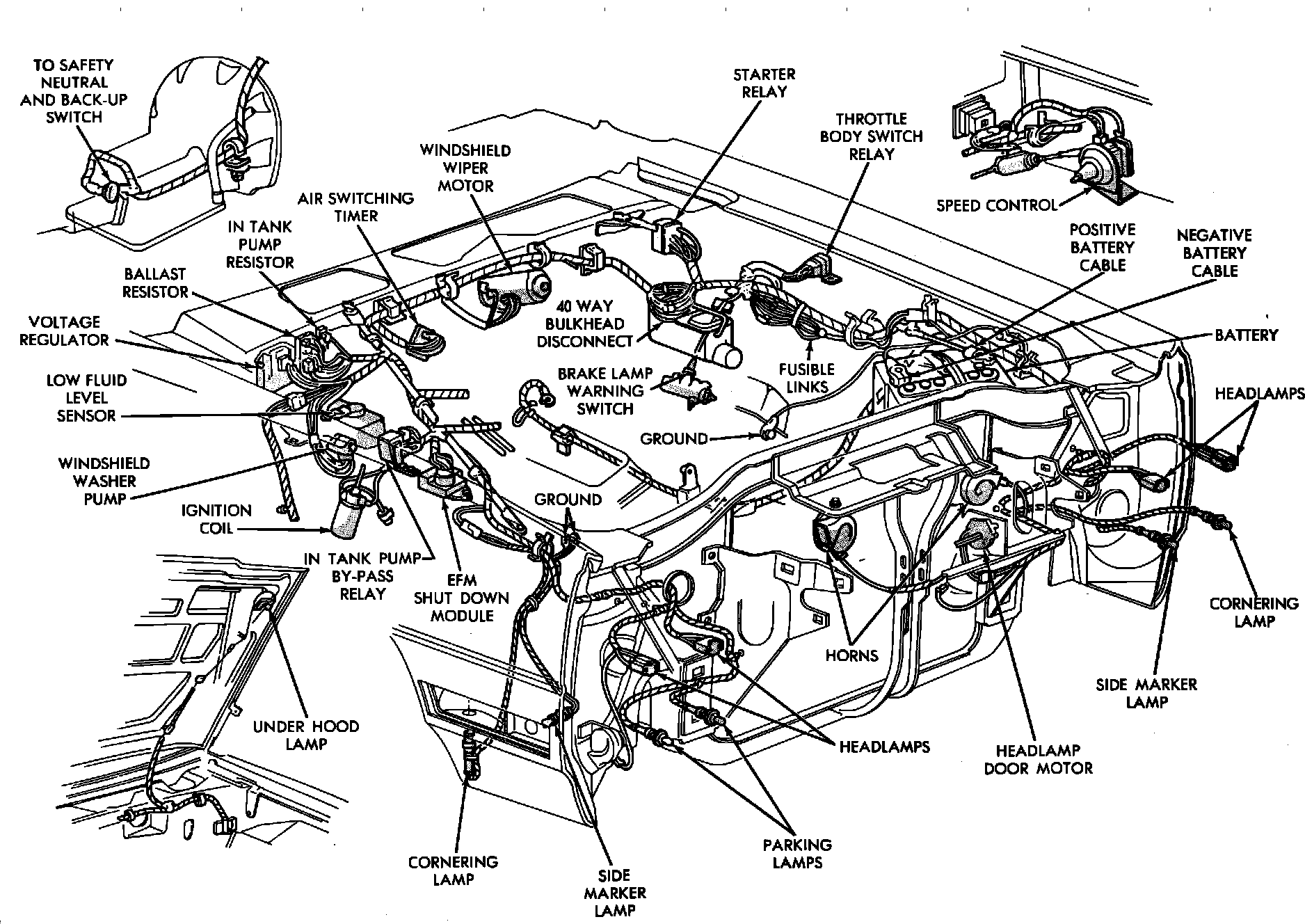

Engine Compartment Electrical Components:
