Emission Control Systems: Locations

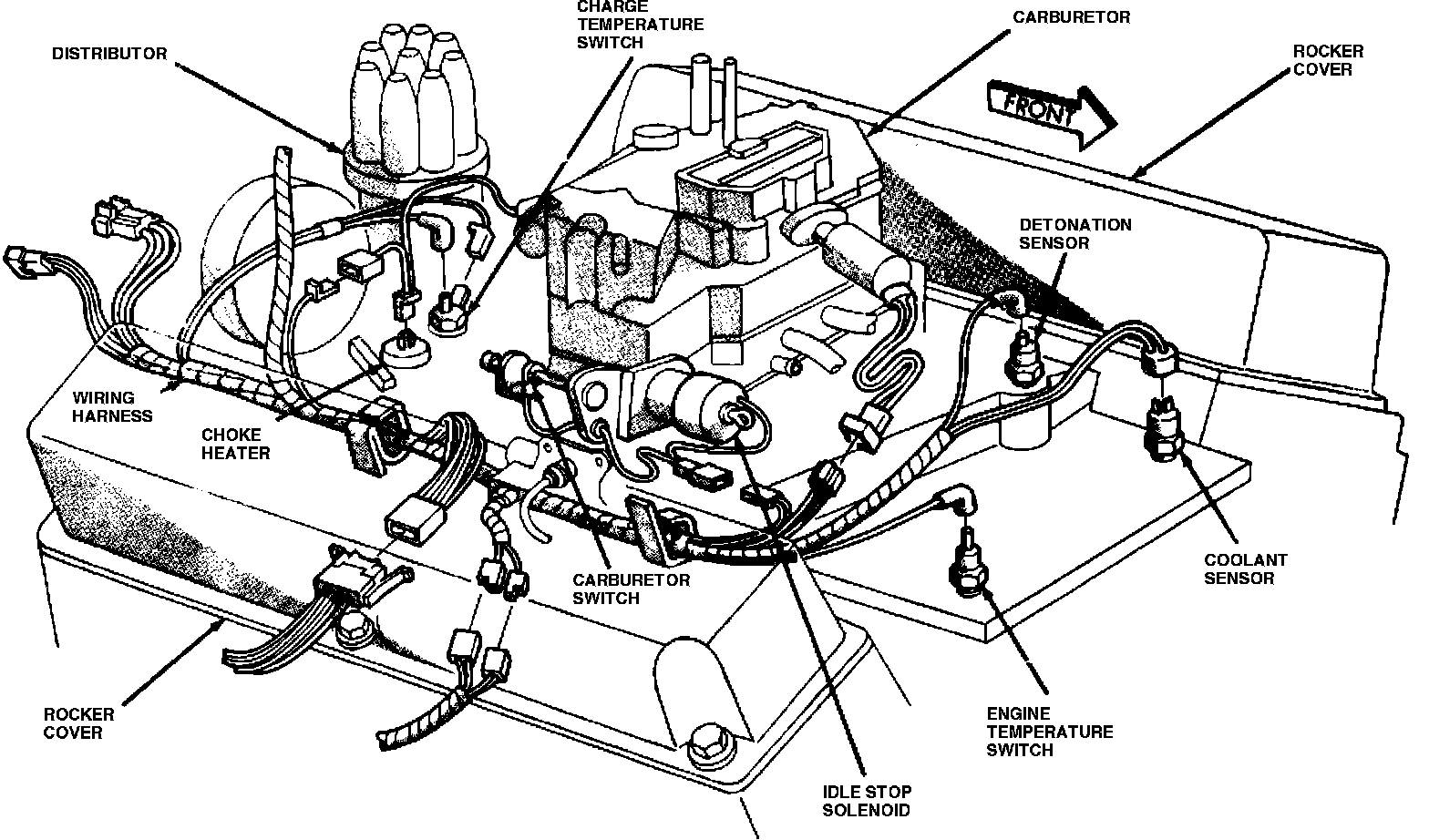

Electronic Feedback Carb. system. Component location. 8 cyl. engine:

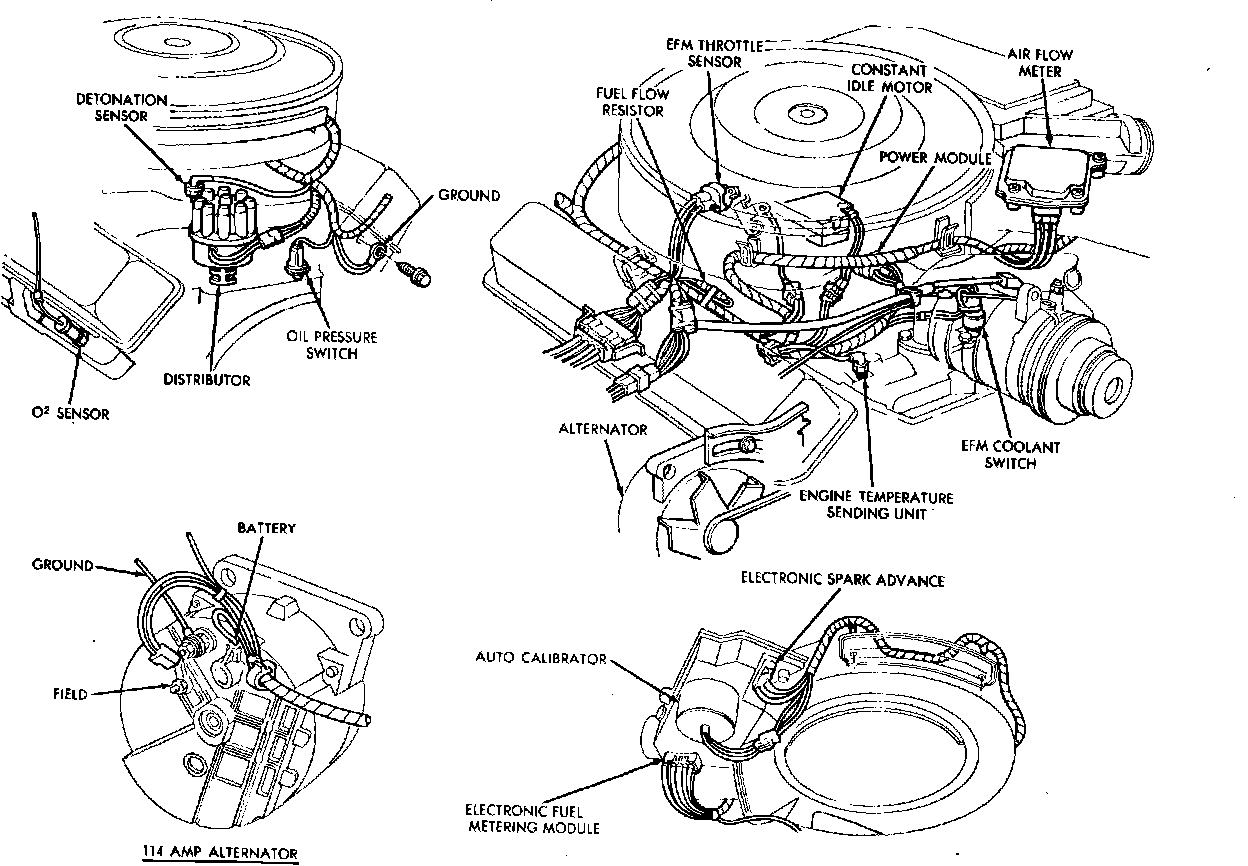

Component location 1982-83 Imperial:
