Service Indicator & Warning Lights: Notes

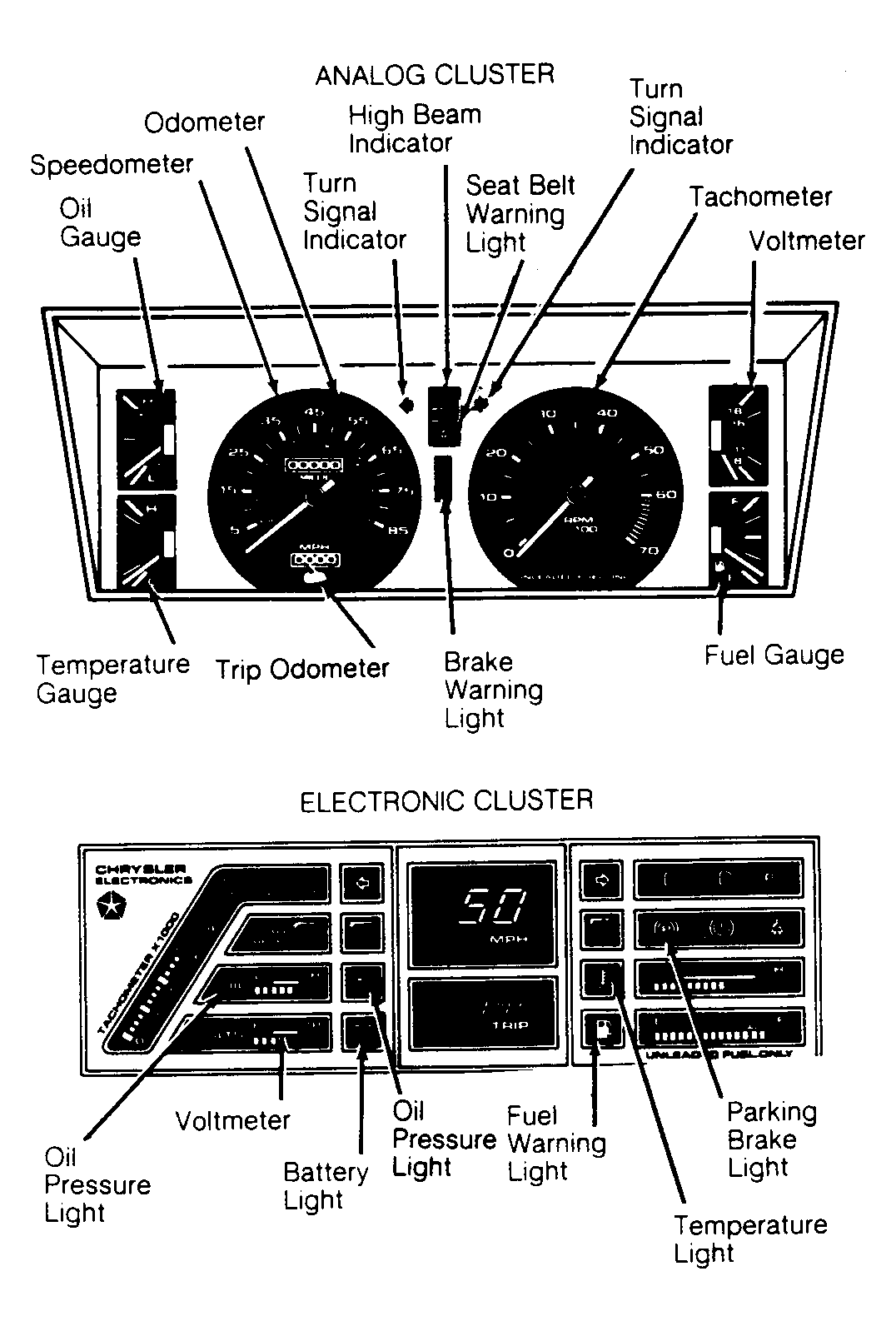

Fig 1: Instrument Panel Identification (1984-86)
G90J06657Courtesy of CHRYSLER MOTORS.

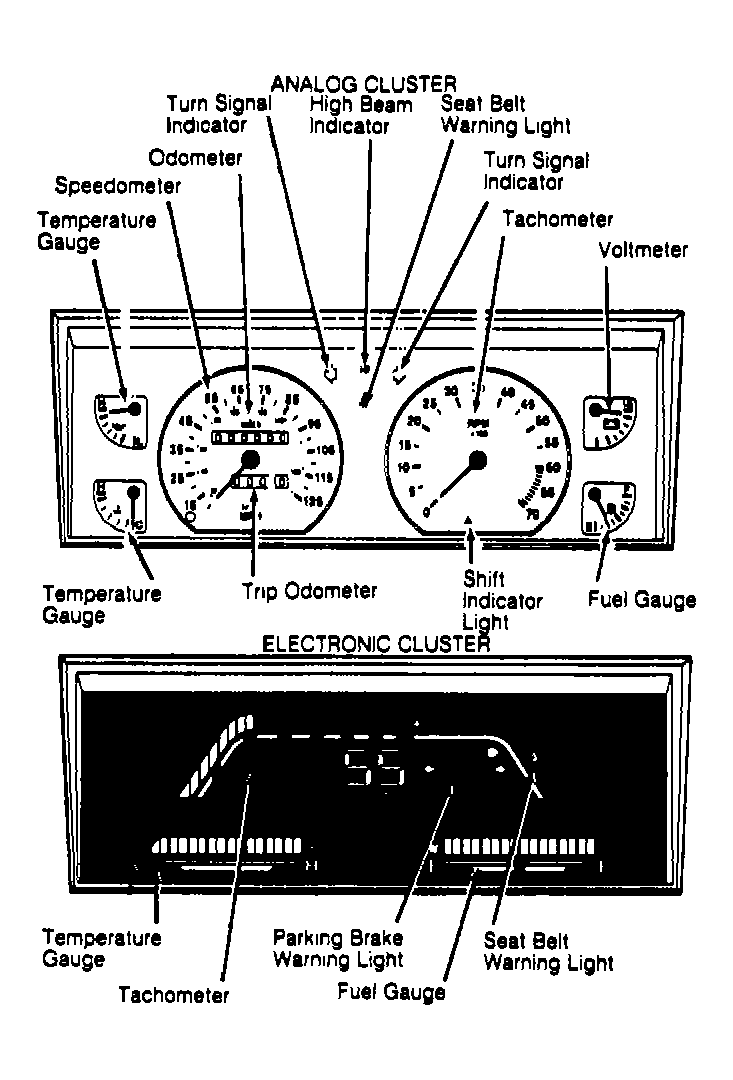

Fig 2: Instrument Panel Identification (1987-89)
G90D06659Courtesy of CHRYSLER MOTORS.

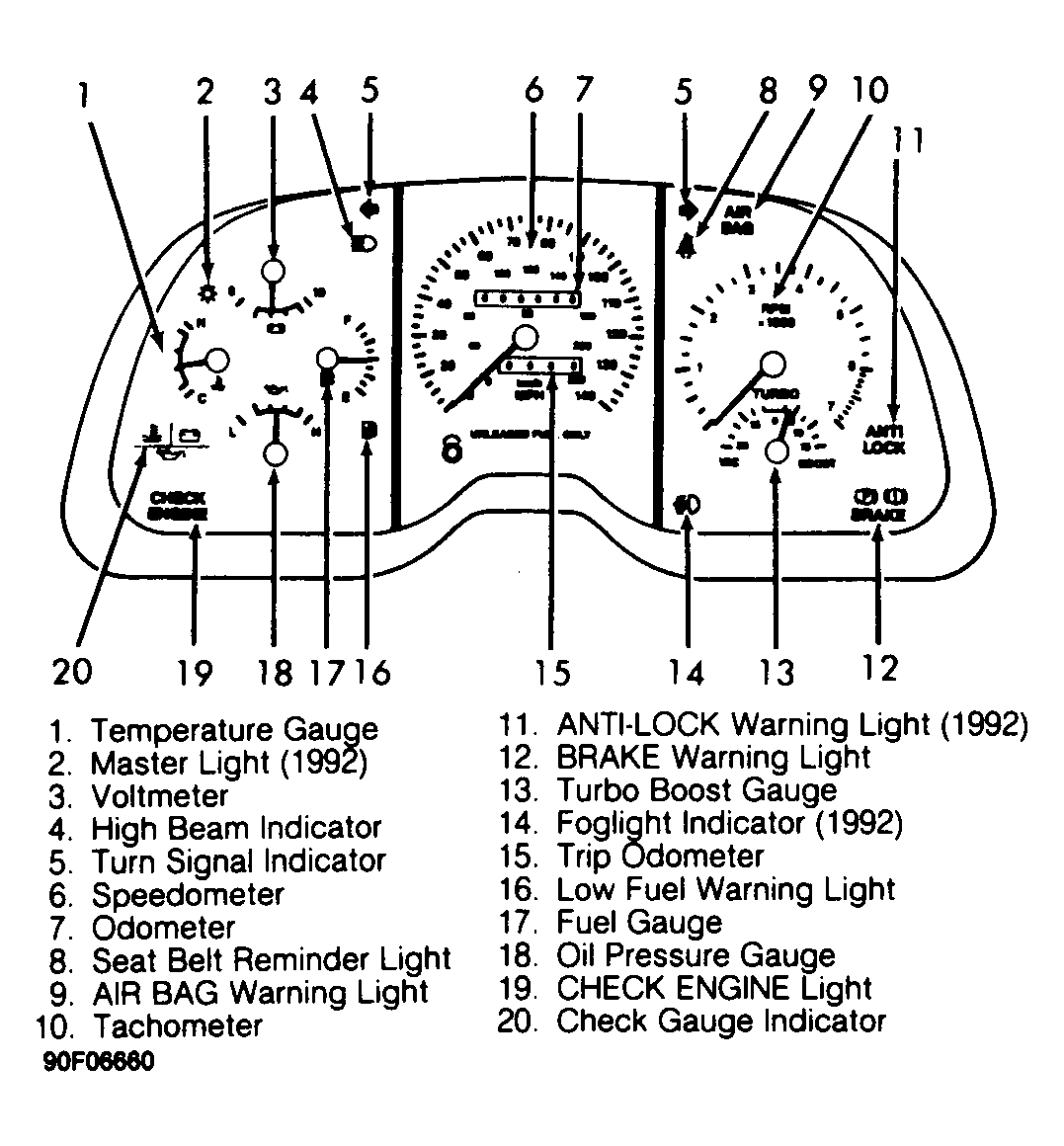

Fig 3: Instrument Panel Identification (1990-92)
G90F06660Courtesy of CHRYSLER MOTORS.
