Wiring Diagrams

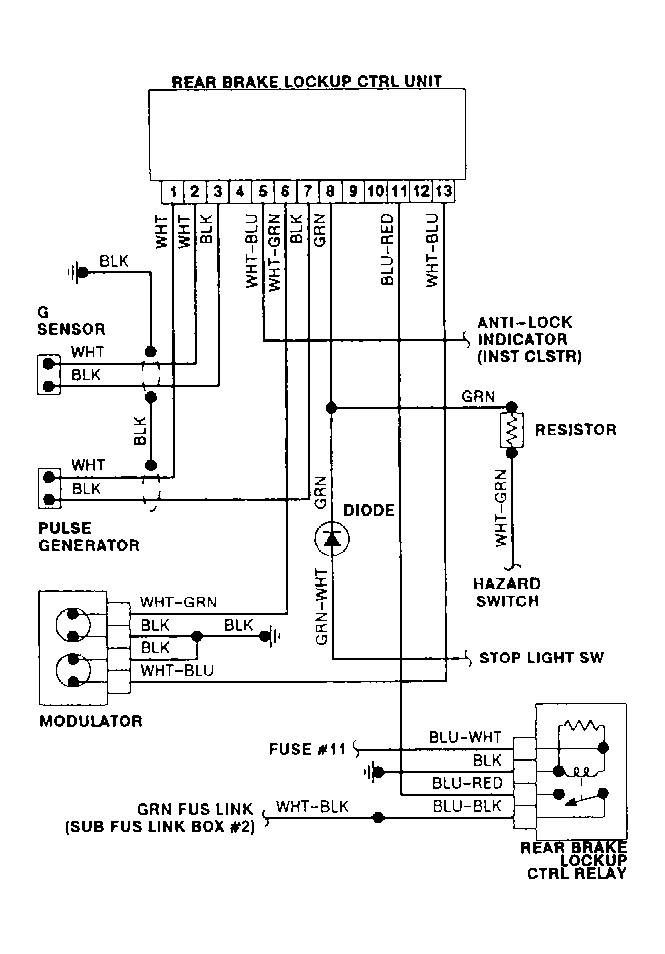

Fig 1: Conquest & Starion Rear Wheel Lock-up Wiring Diagram
G90J00322

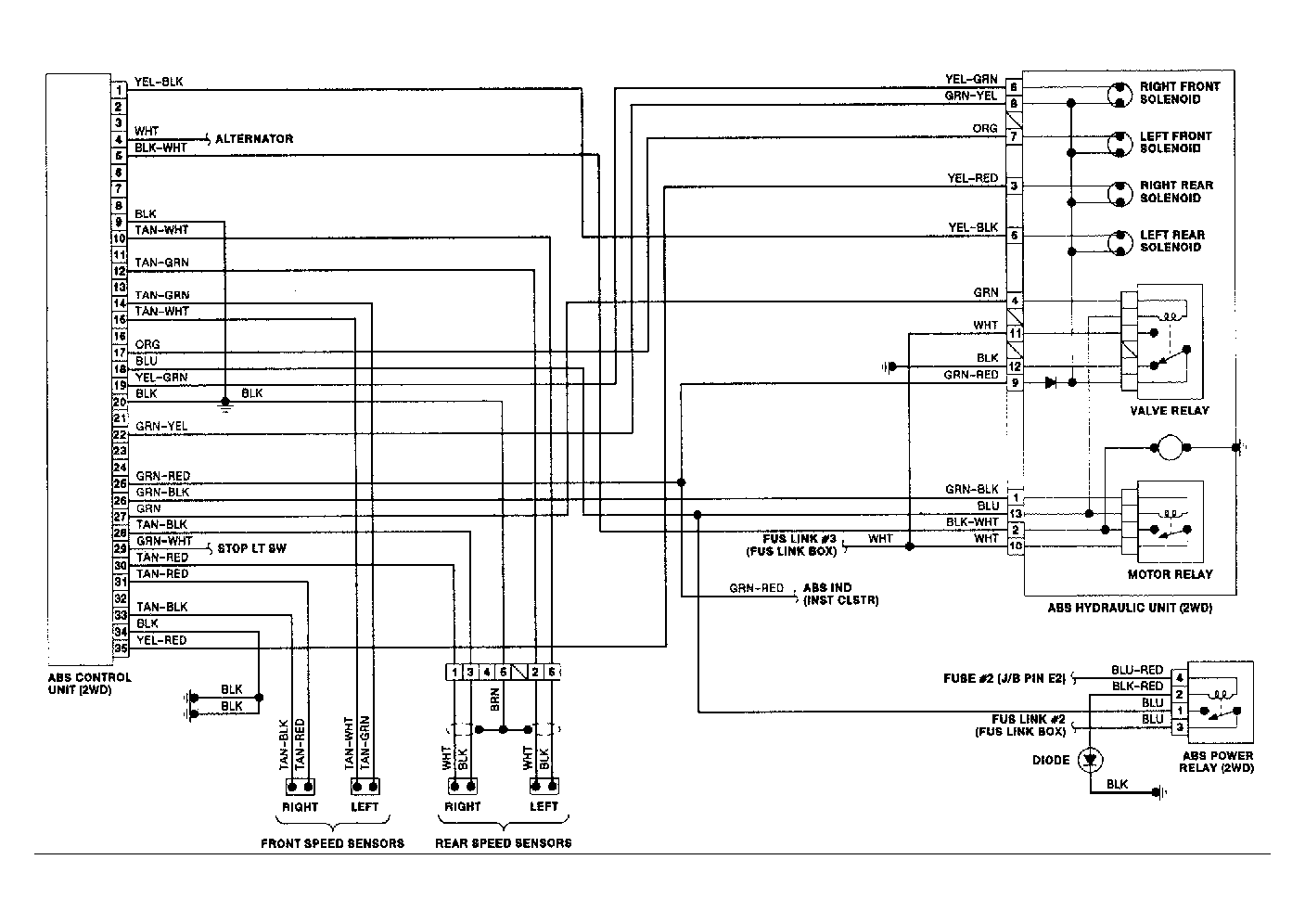

Fig 2: Galant FWD ABS Wiring Diagram
G91G03723

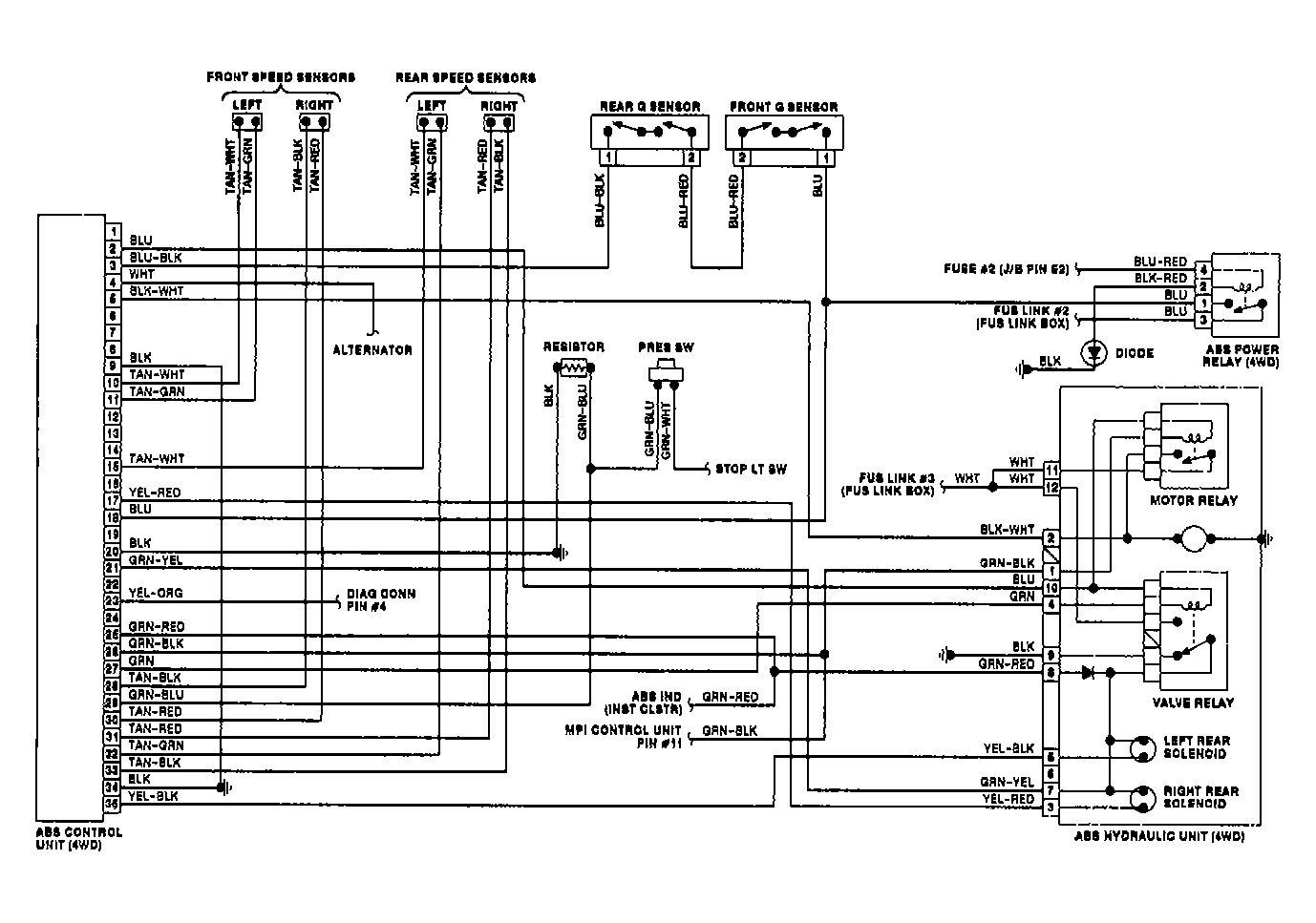

Fig 3: Galant AWD ABS Wiring Diagram
G91I03724
