Test 21C: Hydraulic Pump/Motor Circuit Test
Fig 1: Test 21C - Hydraulic Pump/Motor Circuit Test, Schematic

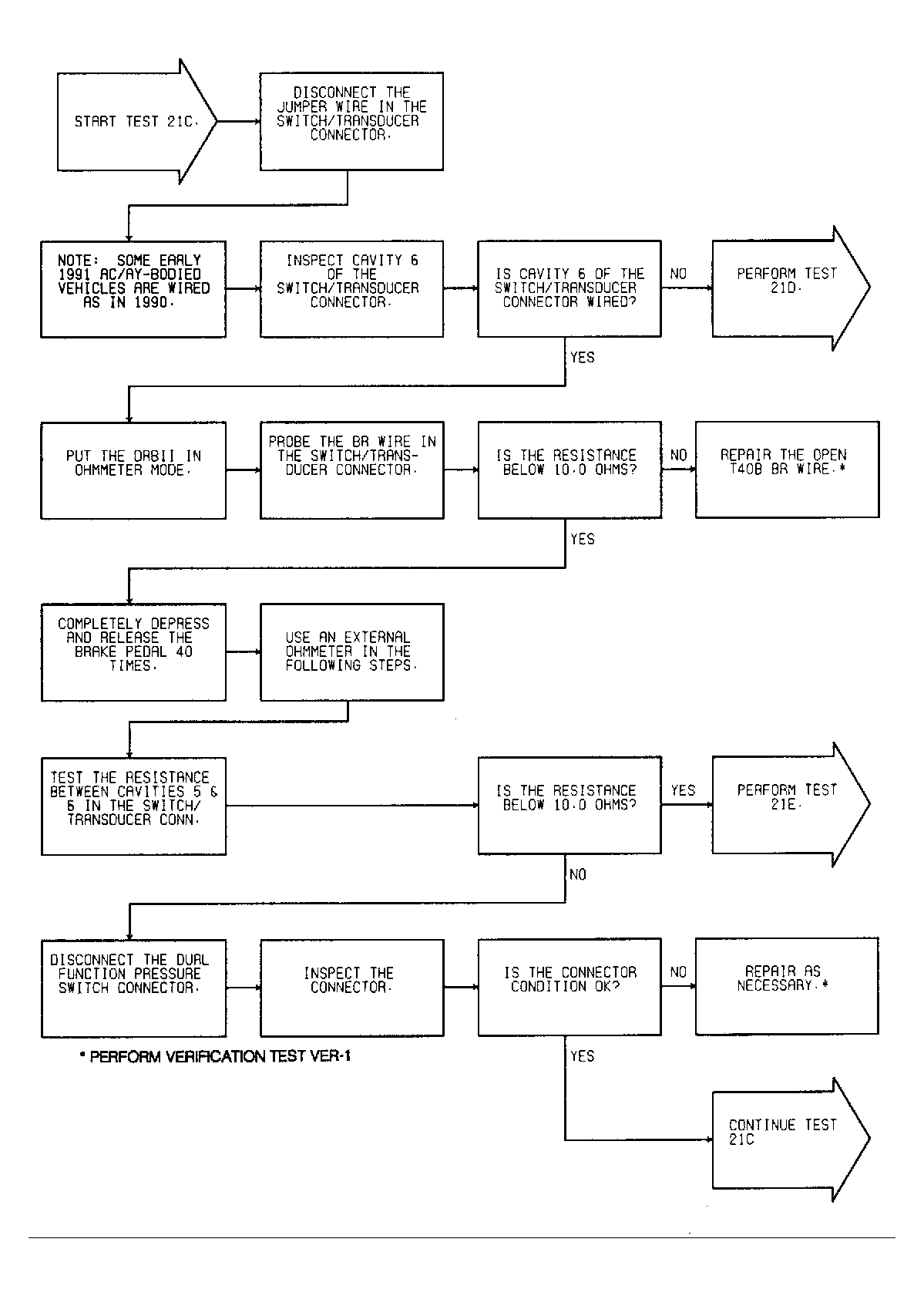

Fig 2: Test 21C - Hydraulic Pump/Motor Circuit Test, Flow Chart

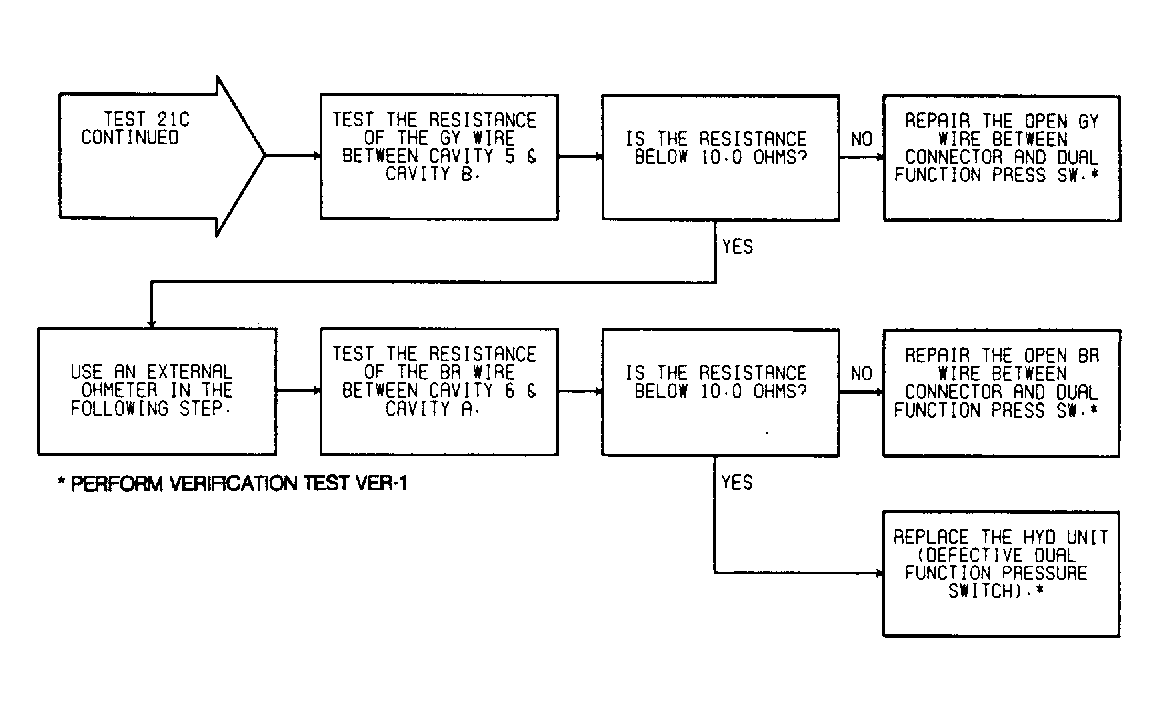

Fig 3: Test 21C - Hydraulic Pump/Motor Circuit Test , Flow Chart
