NS10: System Power & Ground, Map Sensor & Controller

Fig 1: NS10: Circuit Diagram
G90C16396

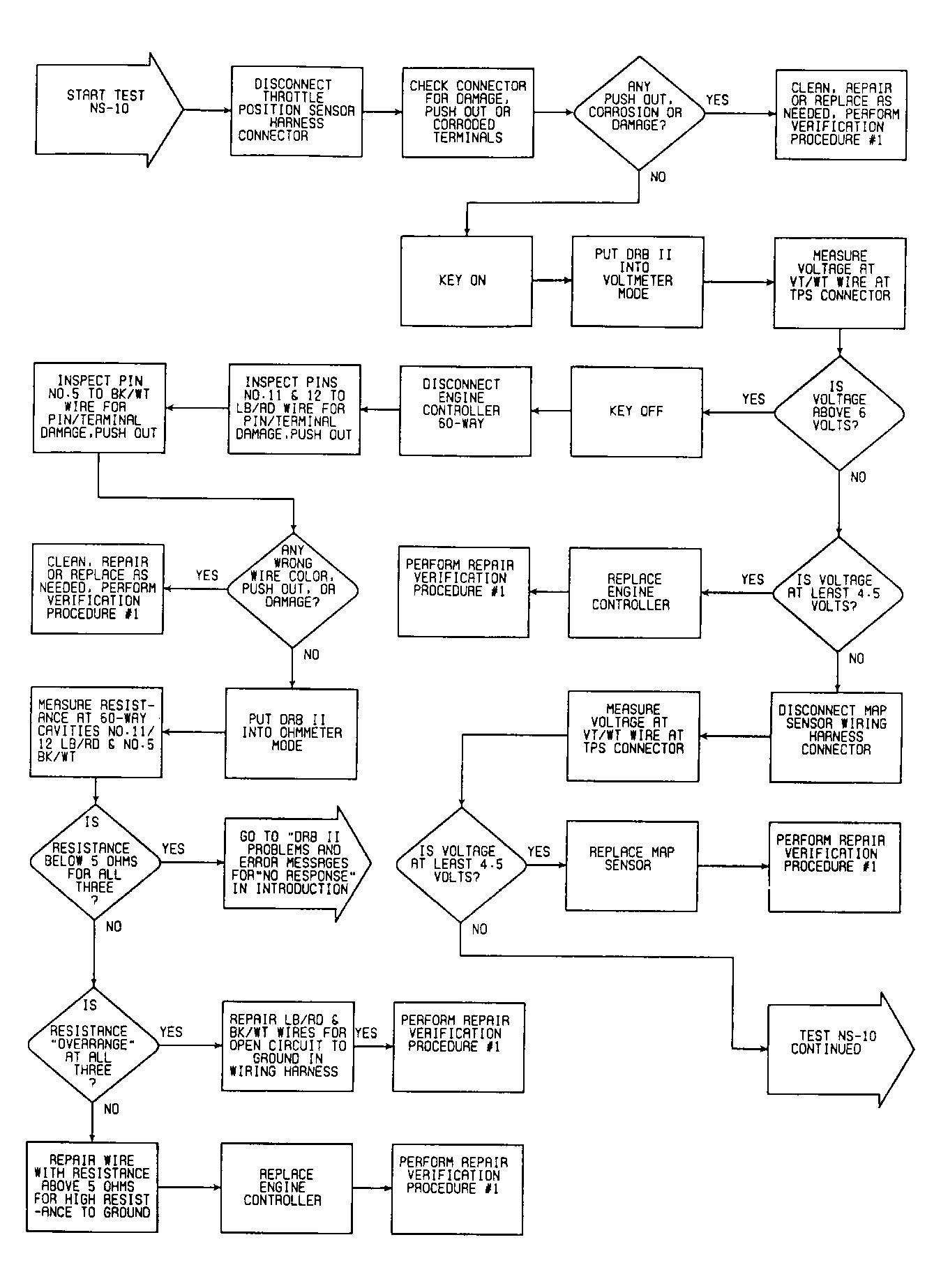

Fig 2: NS10: Flow Chart (1 of 2)
G90F06896

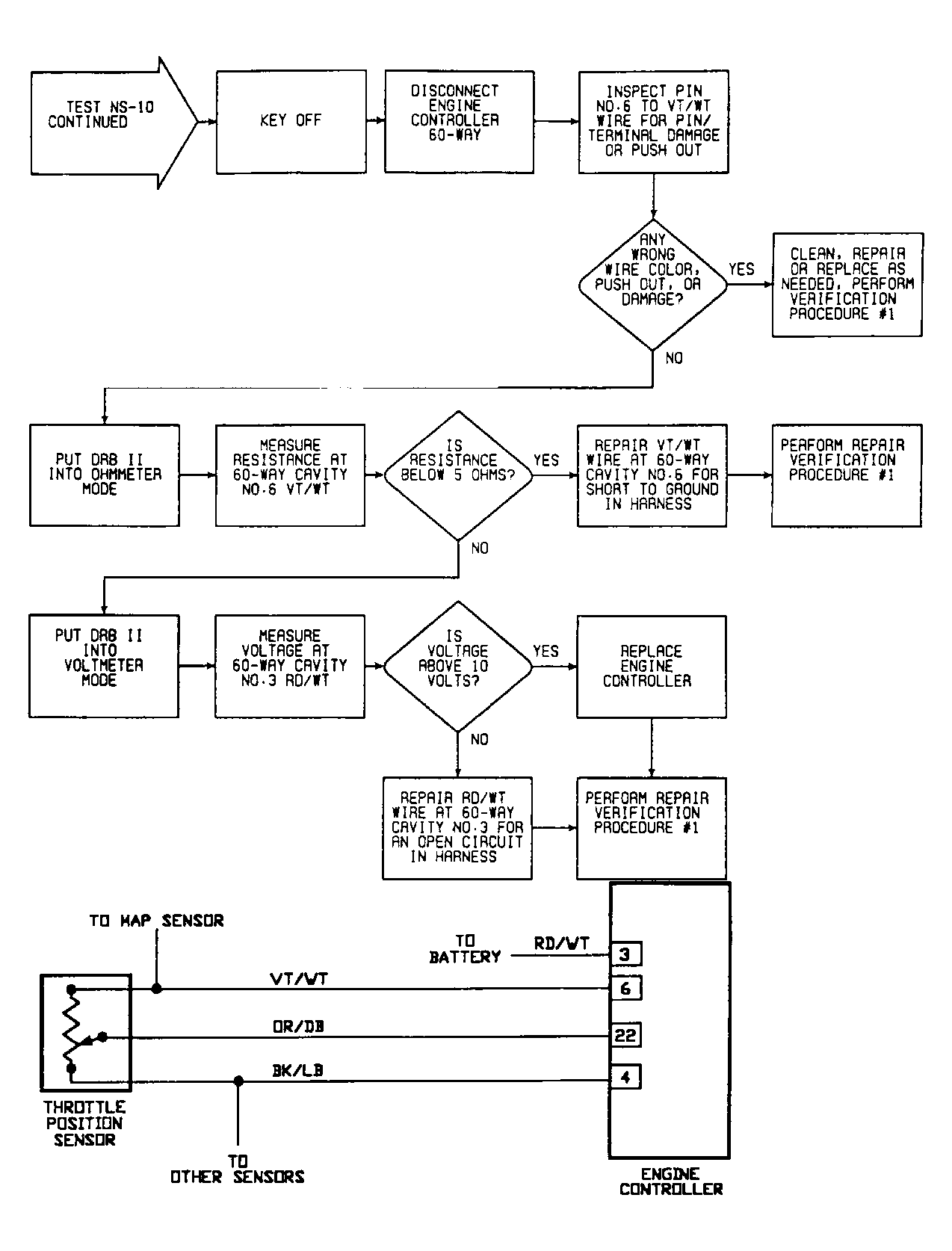

Fig 3: NS10: Circuit Diagram & Flow Chart (2 of 2)
G90H06897
