VER2: Verification Procedure 2

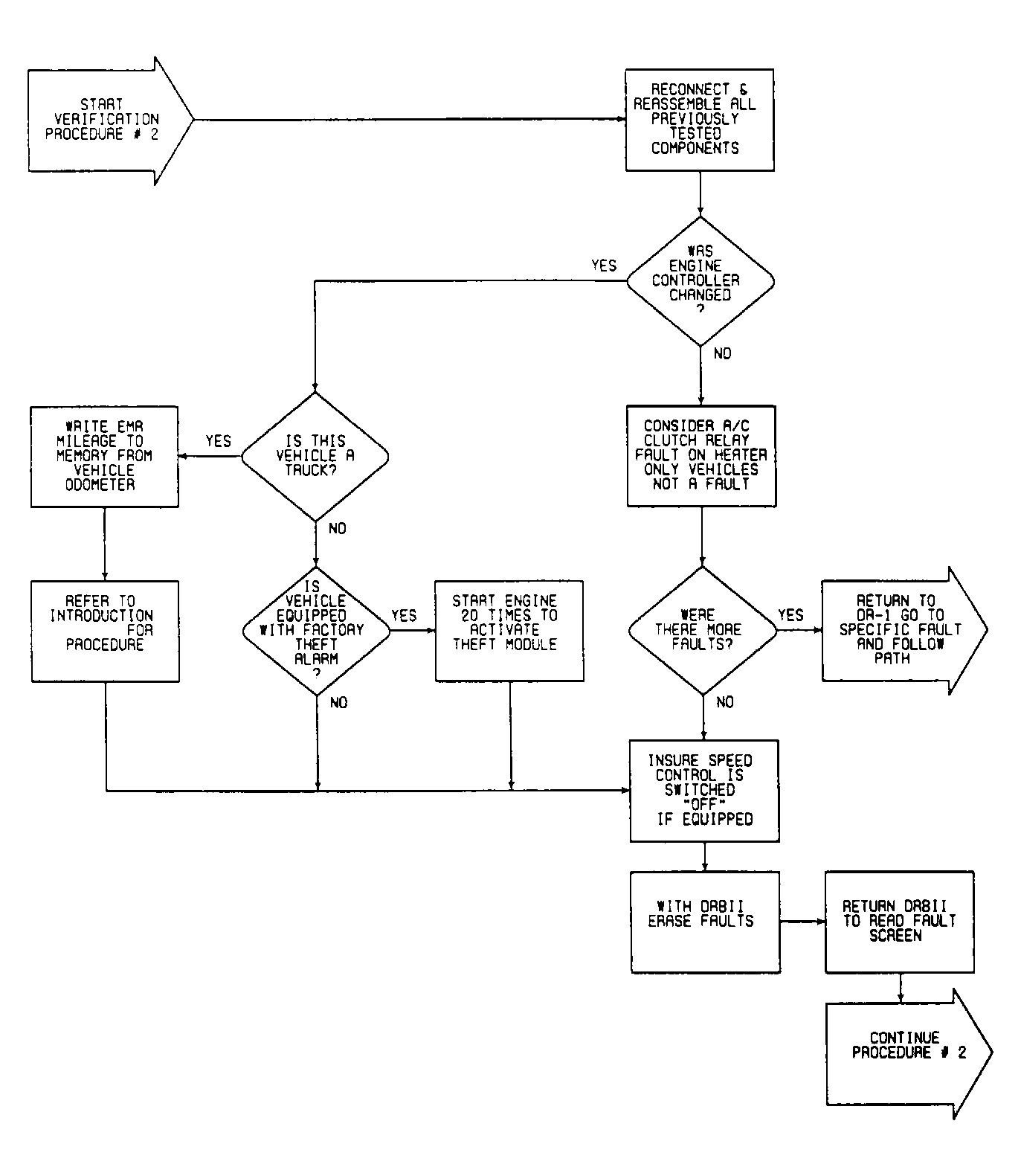

Fig 1: VER2: Flow Chart Verification Procedure 2 (1 of 2)
G90D06961

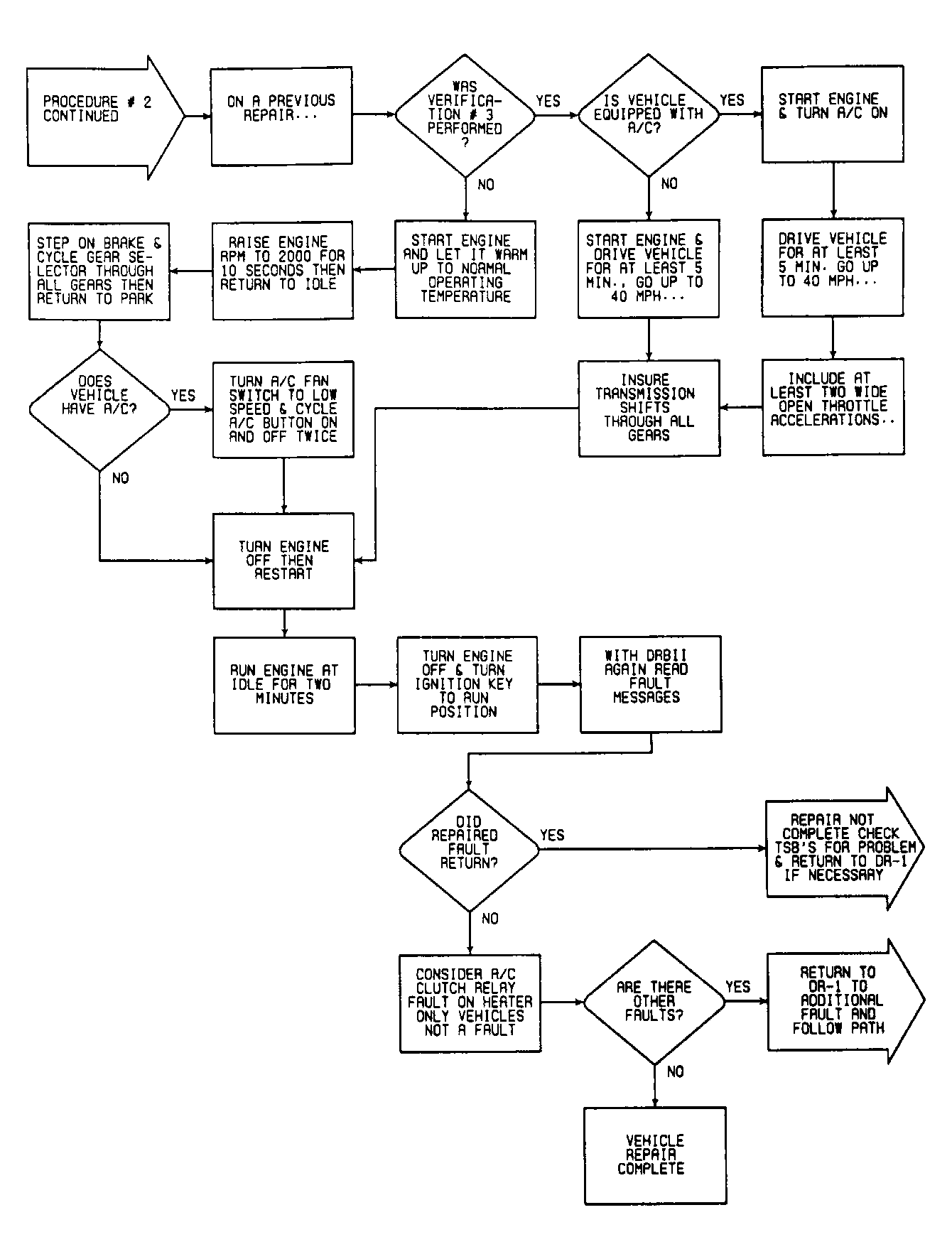

Fig 2: VER2: Flow Chart Verification Procedure 2 (2 of 2)
G90F06962
