Test 109: Repairing DRB-II Failures

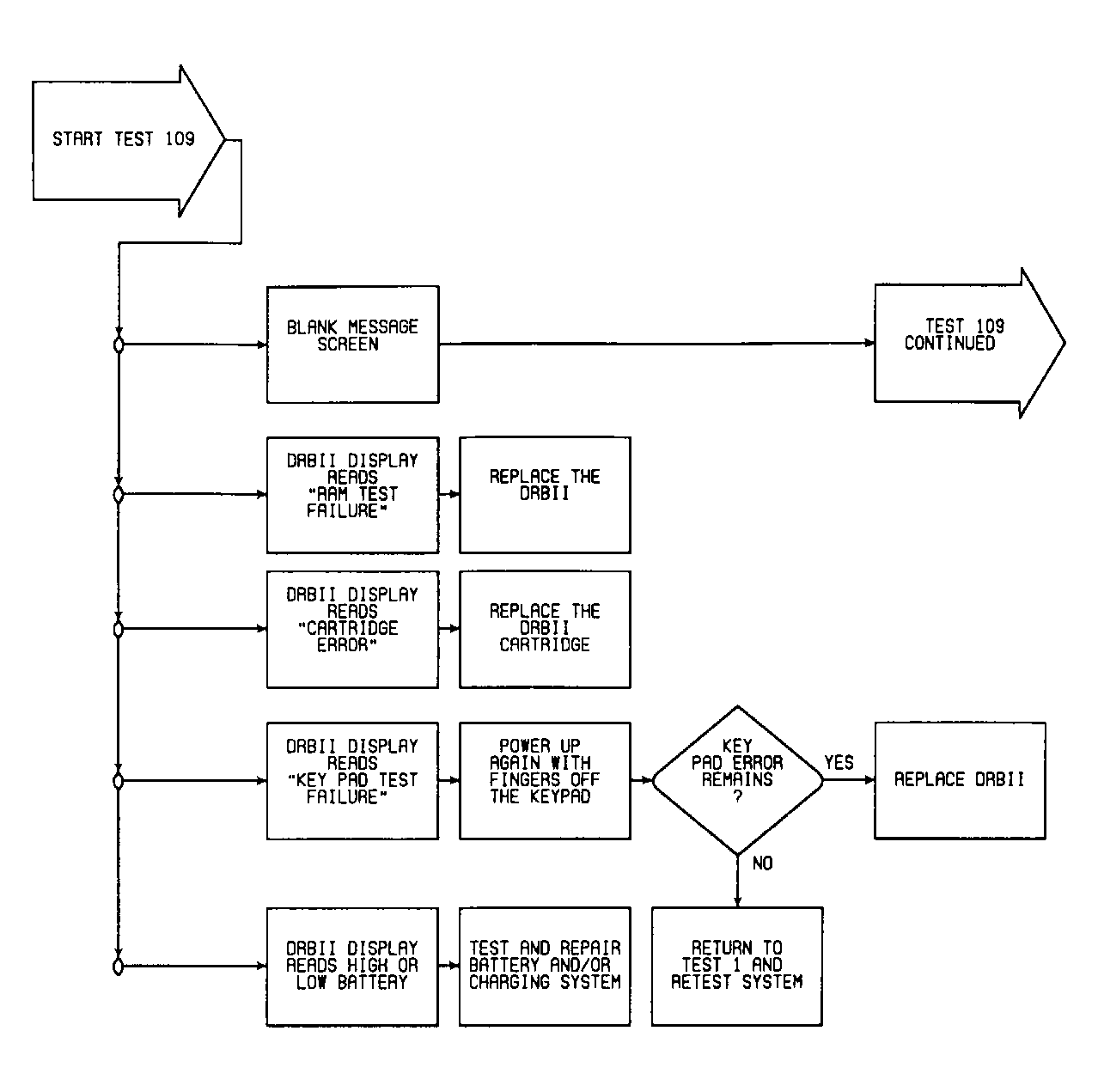

Fig 1: Test 109: Flow Chart (1 of 2)

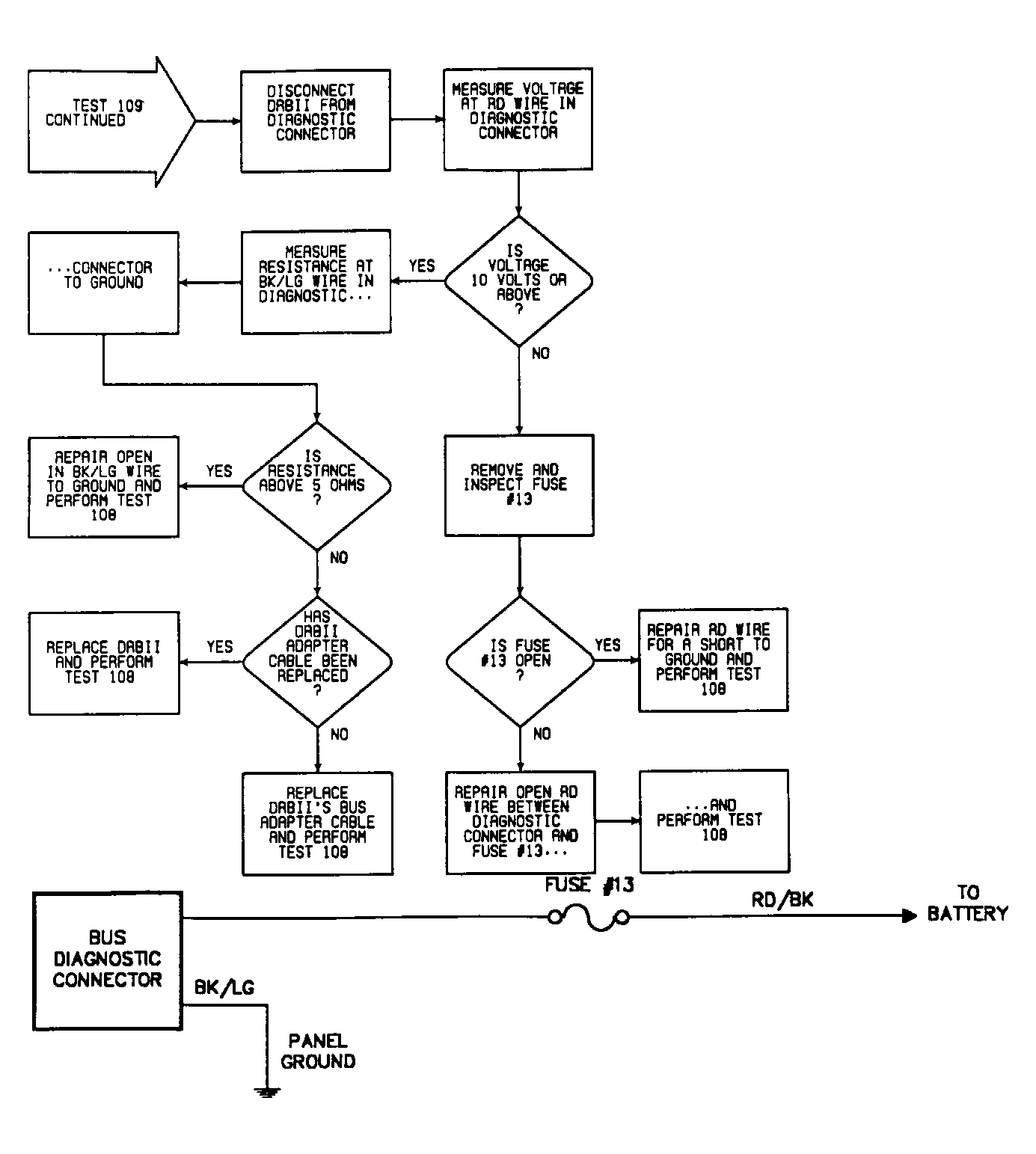

Fig 2: Test 109: Circuit Diagram & Flow Chart (2 of 2)
