Test 11: Engine Oil Level Low

Fig 1: Test 11: Circuit Diagram

G90A16501

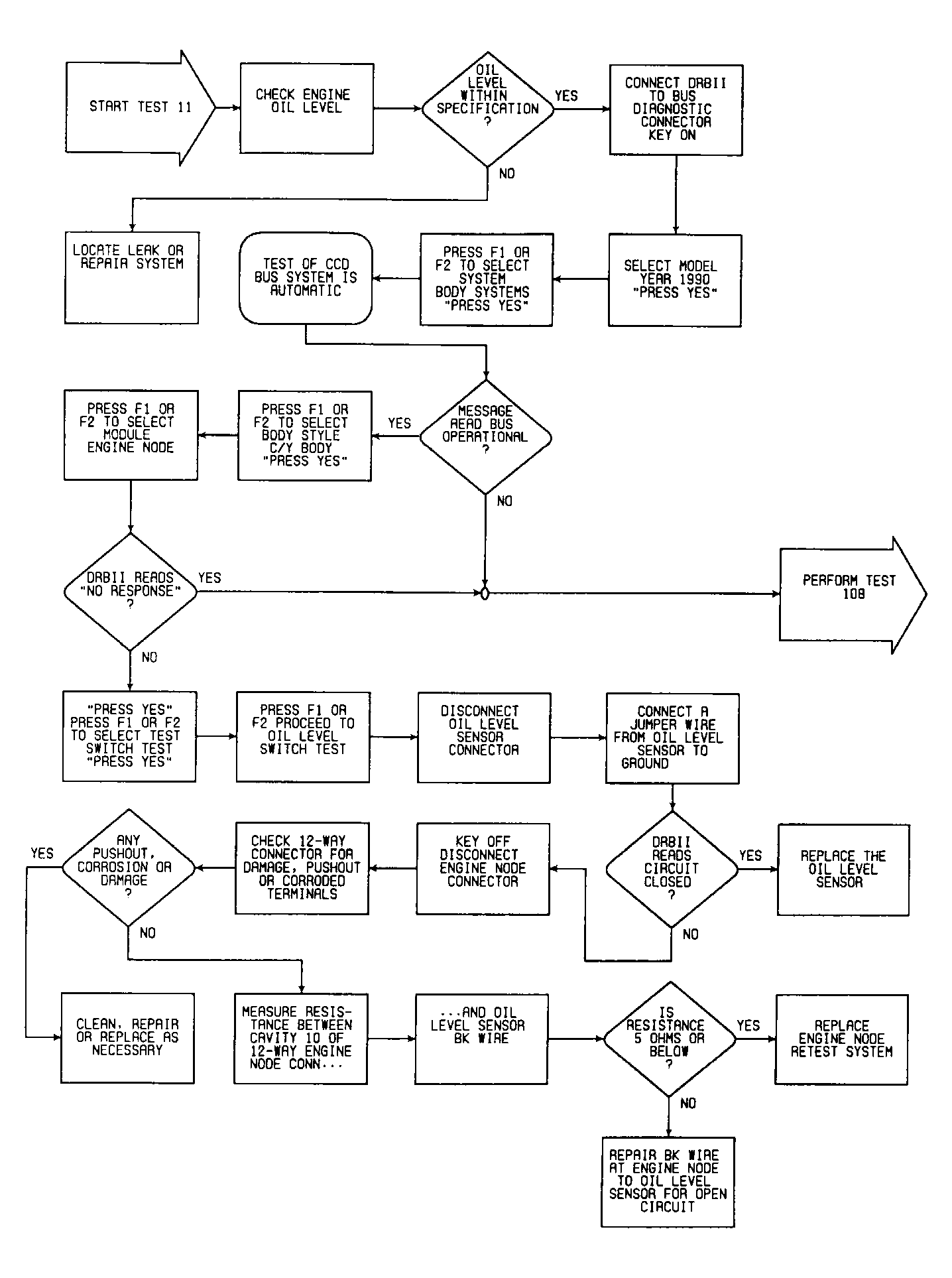

Fig 2: Test 11: Flow Chart

G90D12248
