Test 124: Repairing Bus System For No Termination Messages

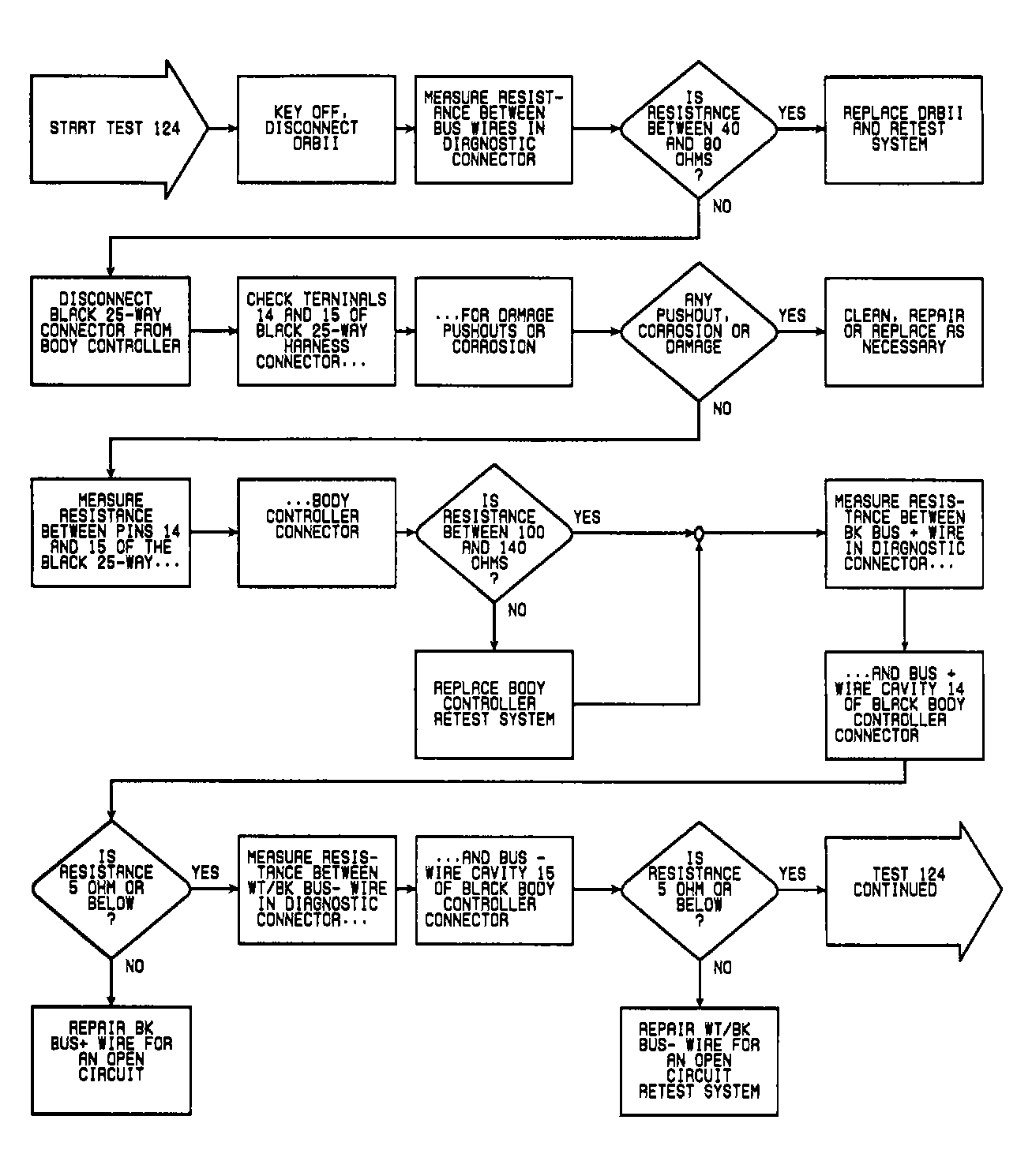

Fig 1: Test 124: Flow Chart (1 of 2)

G90G06203

Fig 2: Test 124: Circuit Diagram (For 2 of 2)

G90J17250

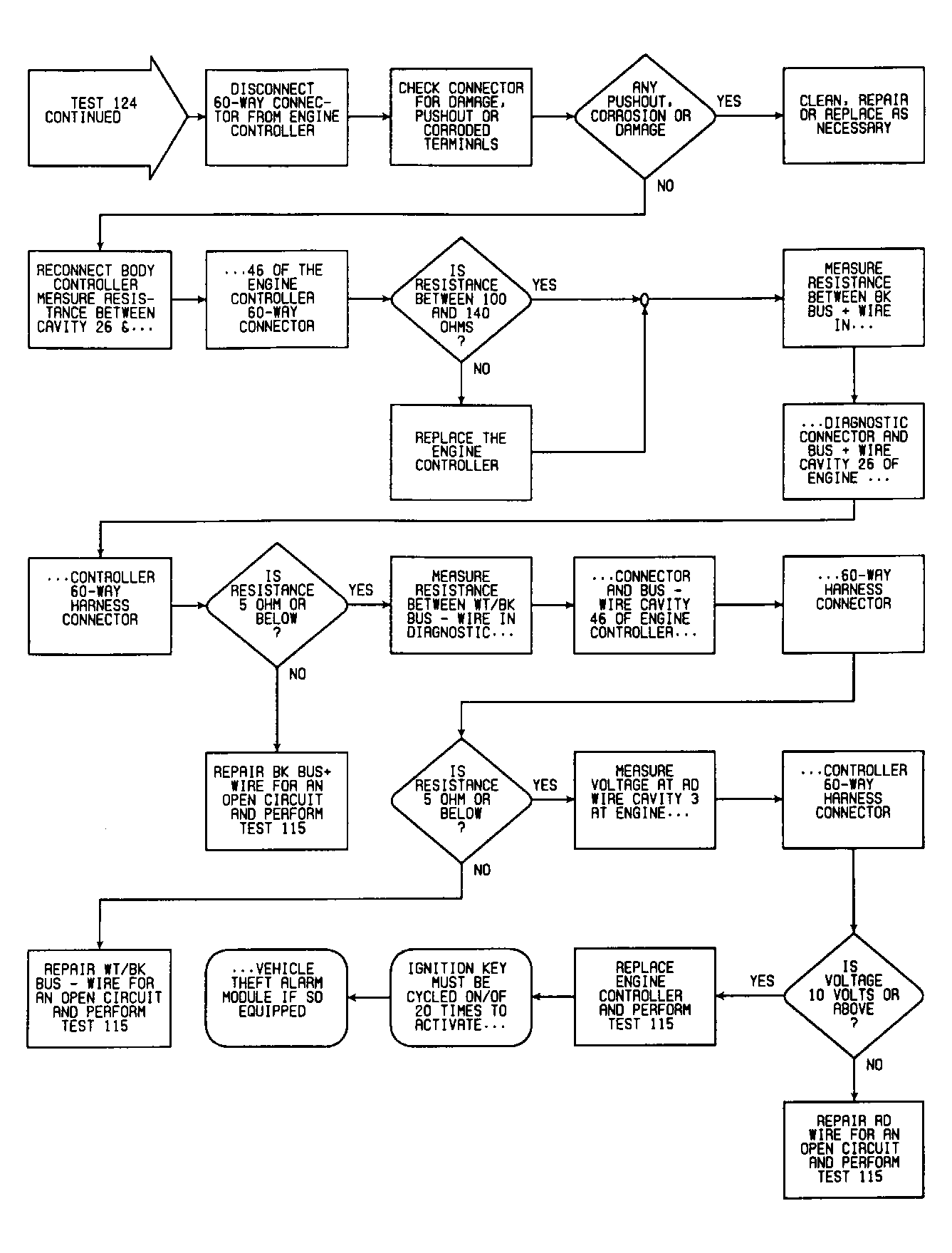

Fig 3: Test 124: Flow Chart (2 of 2)

G90I06204
