Test 15: Right Headlight Out

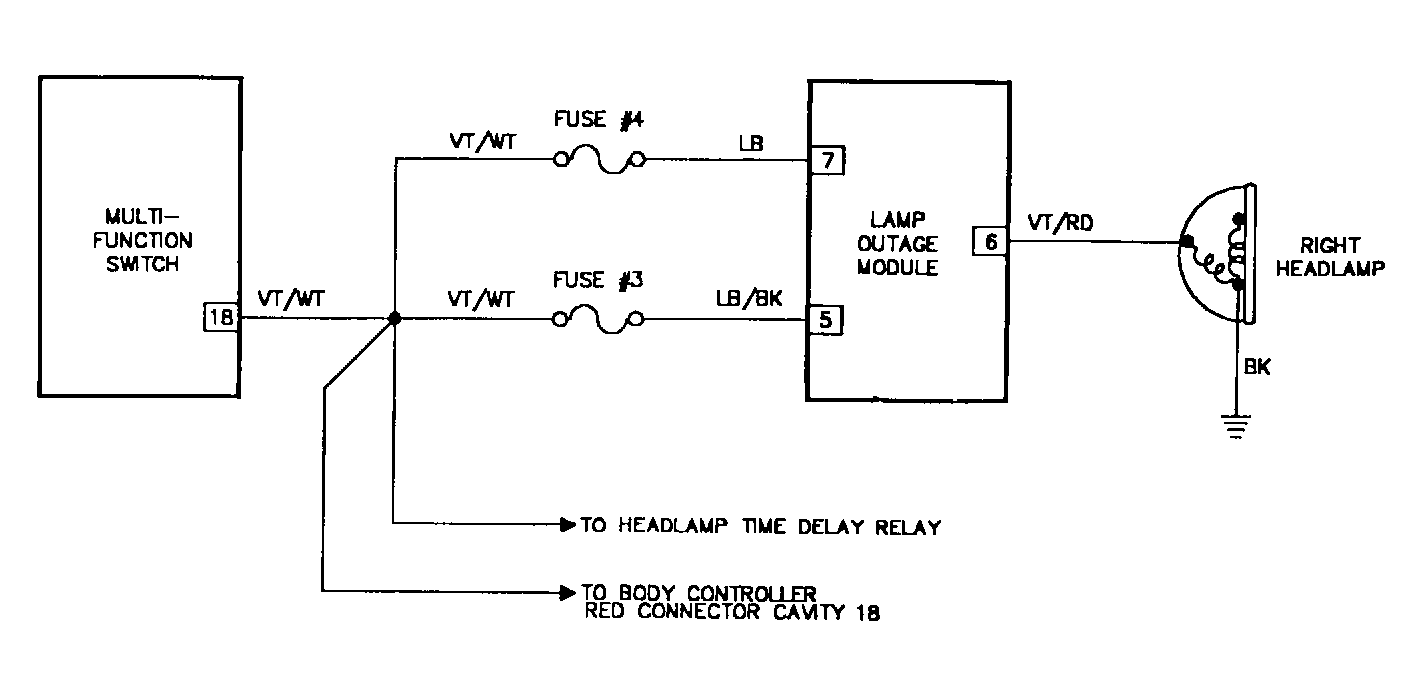

Fig 1: Test 15: Circuit Diagram (For 1 of 2)

G90E16505

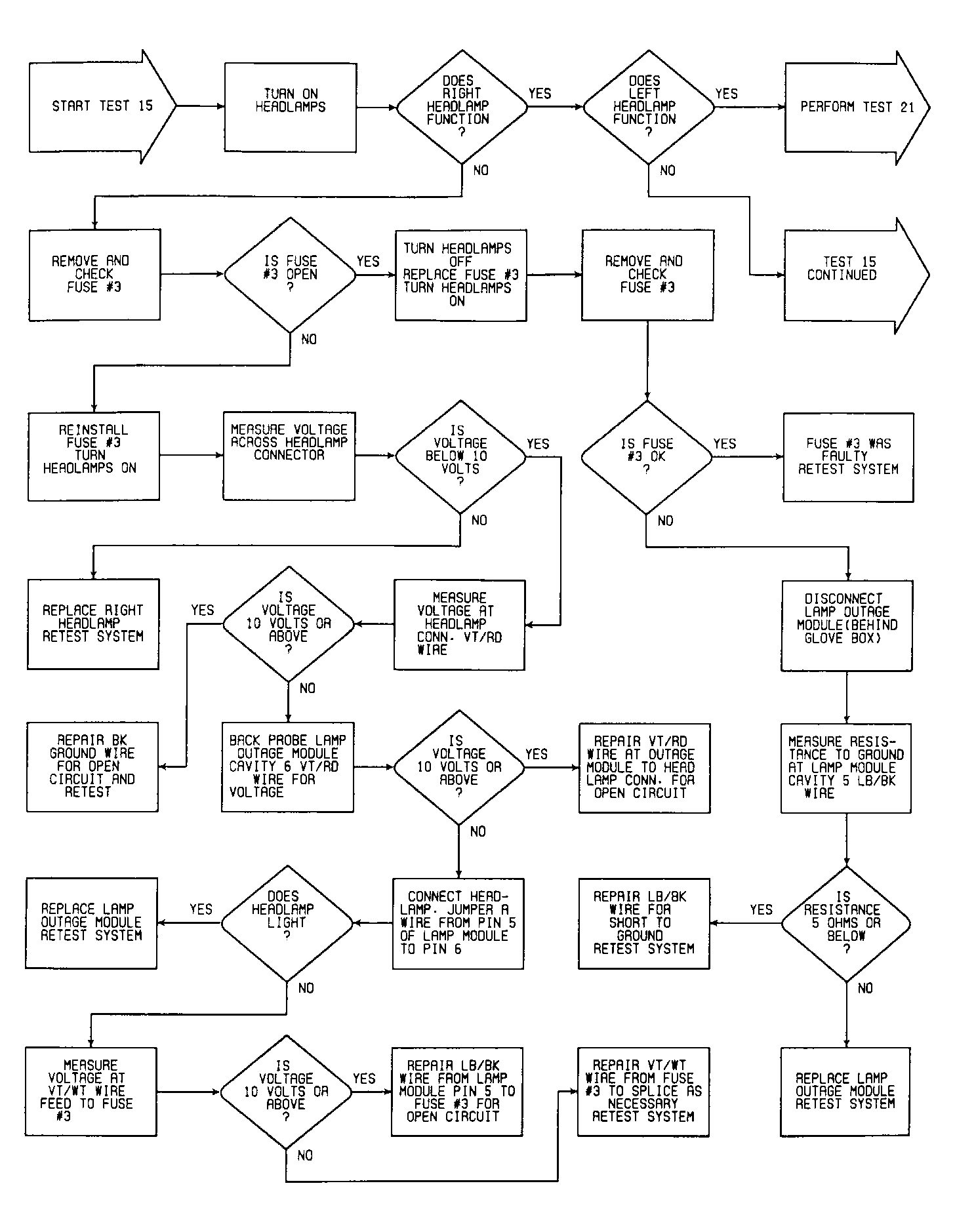

Fig 2: Test 15: Flow Chart (1 of 2)

G90B12253

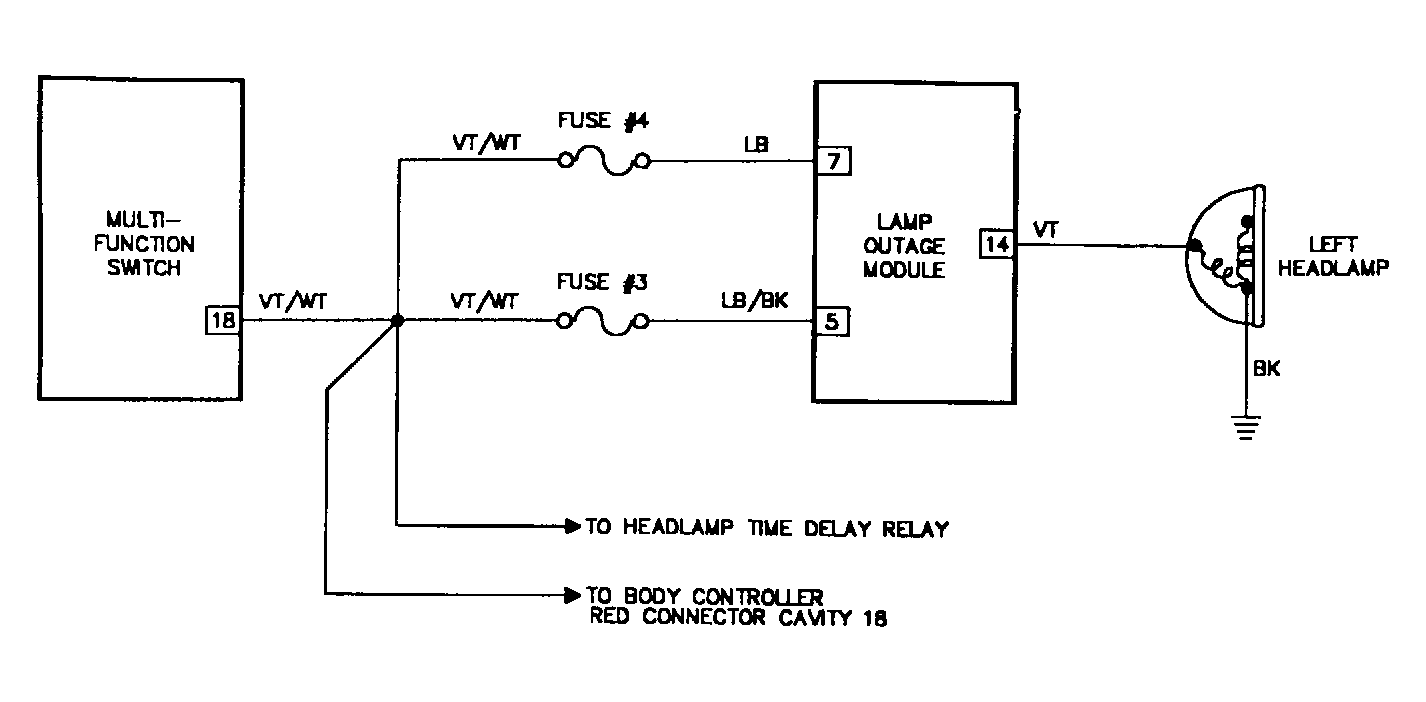

Fig 3: Test 15: Circuit Diagram (For 2 of 2)

G90F16506

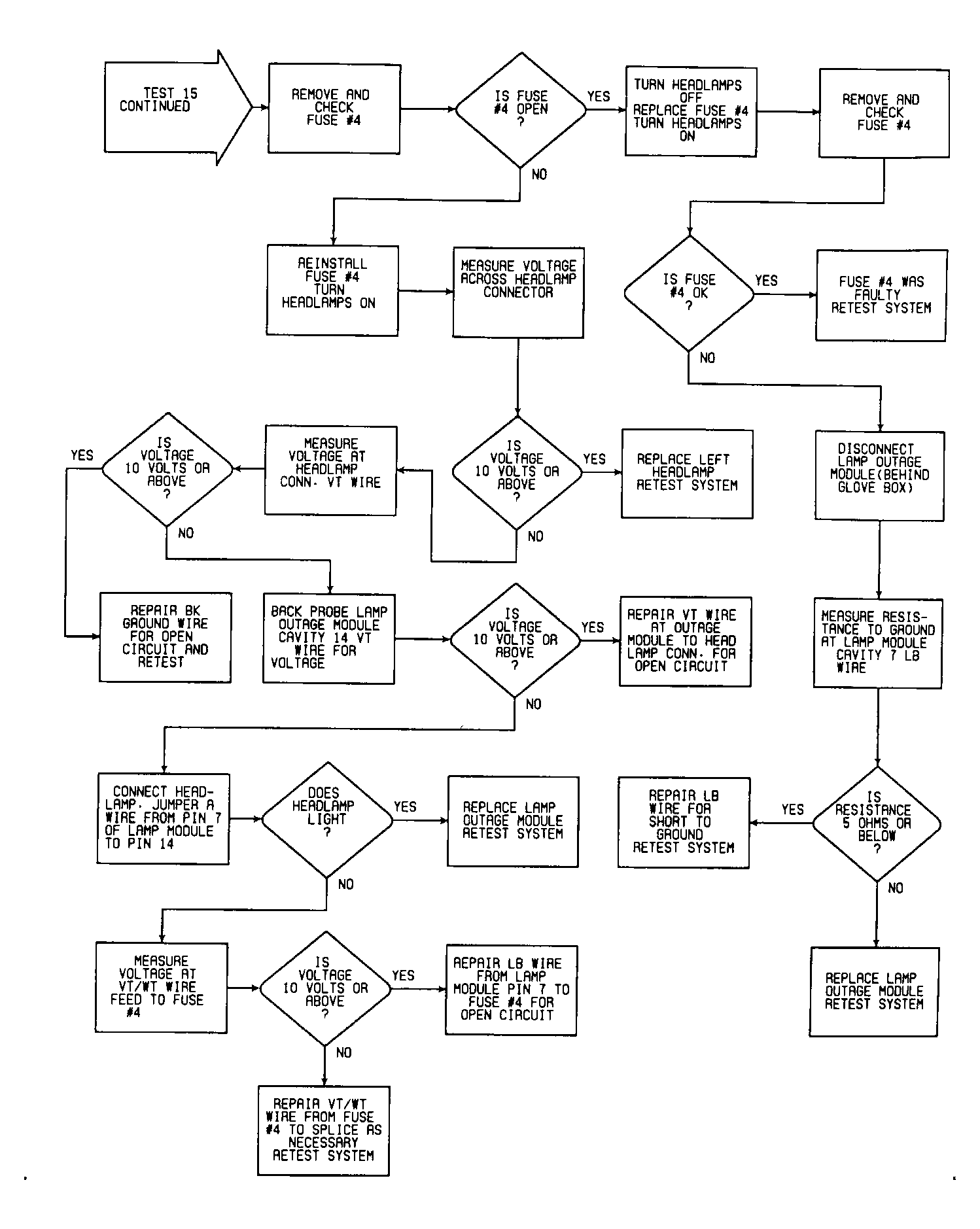

Fig 4: Test 15: Flow Chart (2 of 2)

G90C12254
