Test 3: Warning Messages

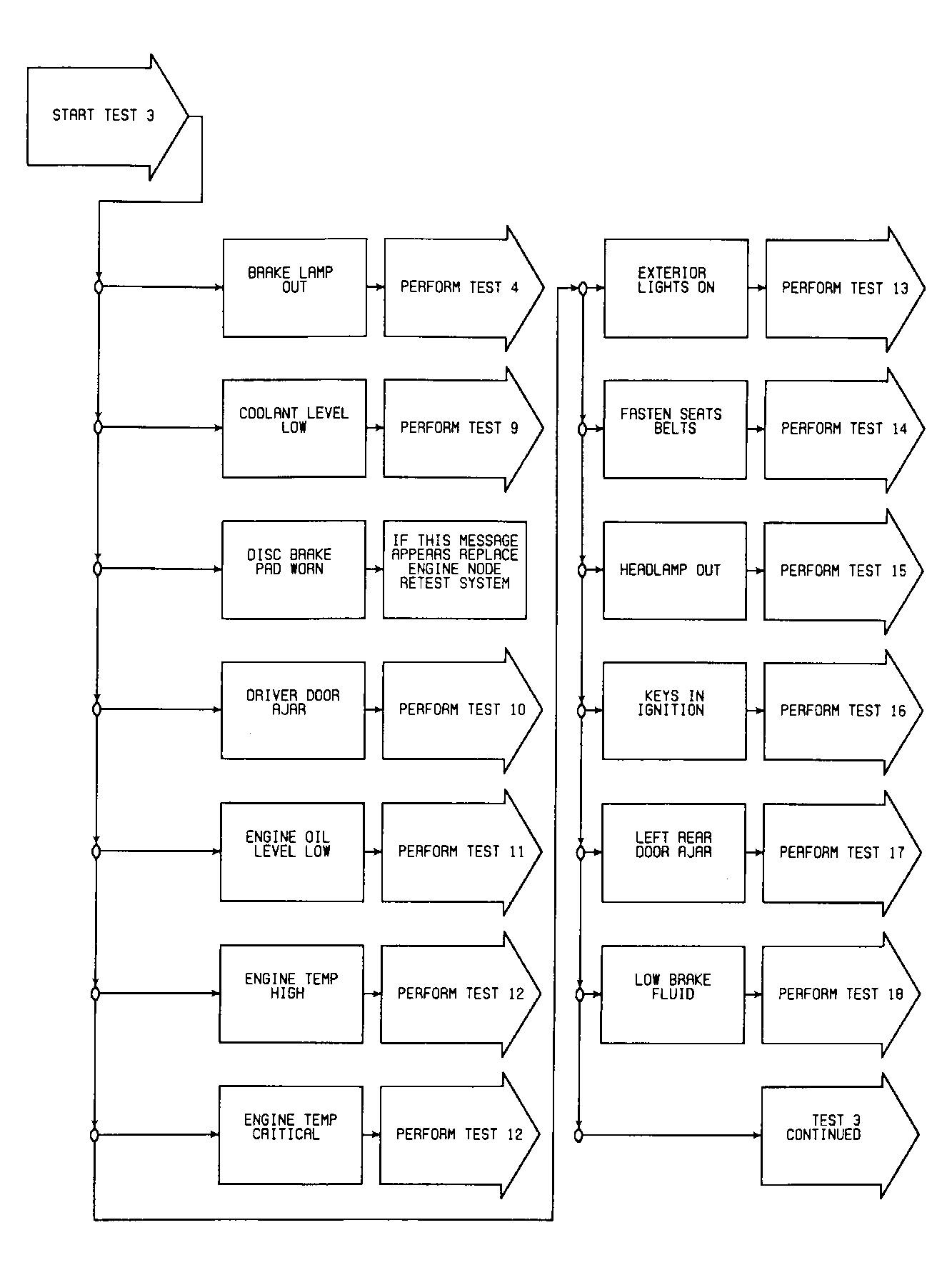

Fig 1: Test 3: Flow Chart (1 of 2)

G90C12239

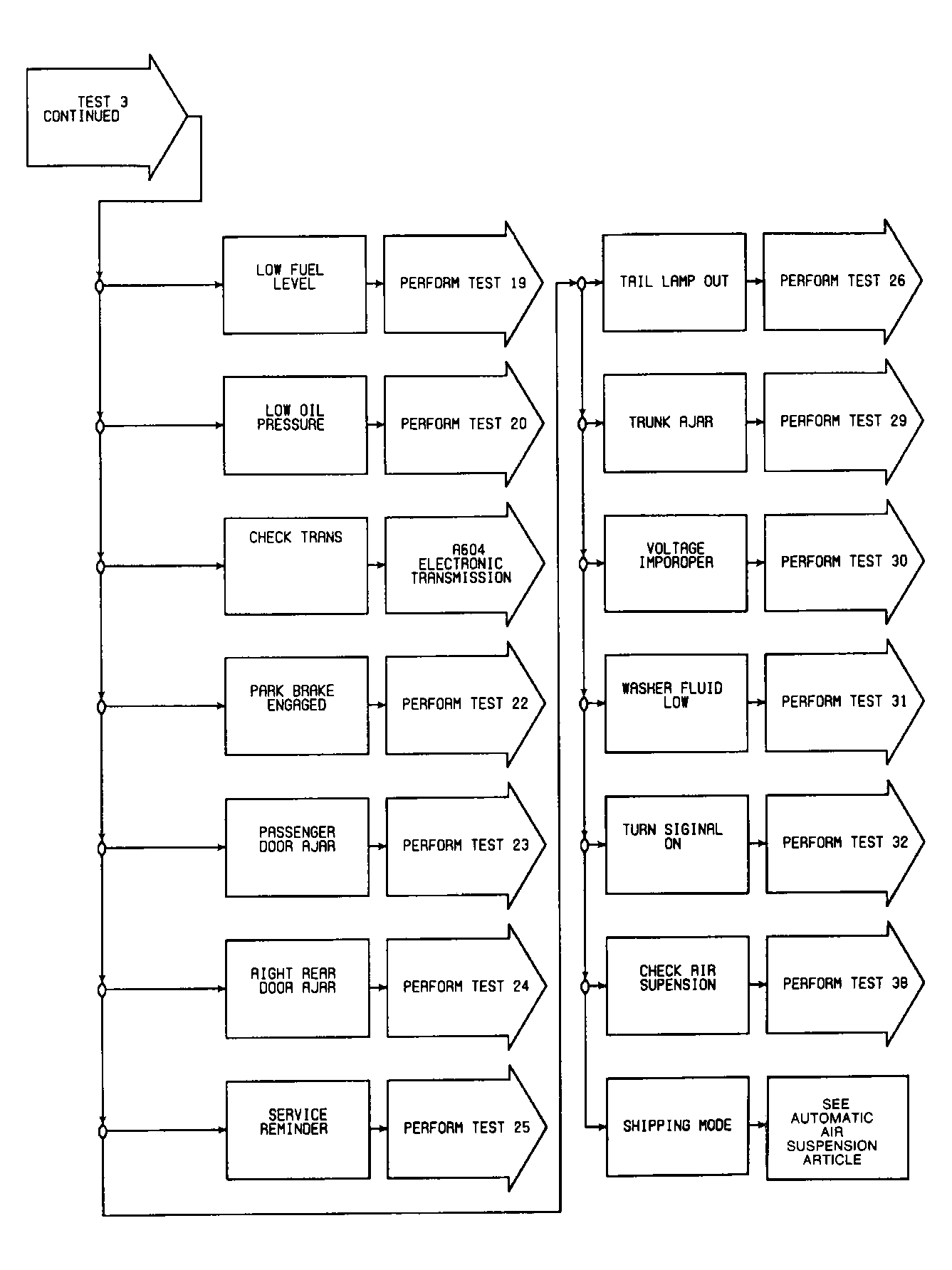

Fig 2: Test 3: Flow Chart (2 of 2)

G90F12240
