Test 39: EVIC Head Monitor Switch Test

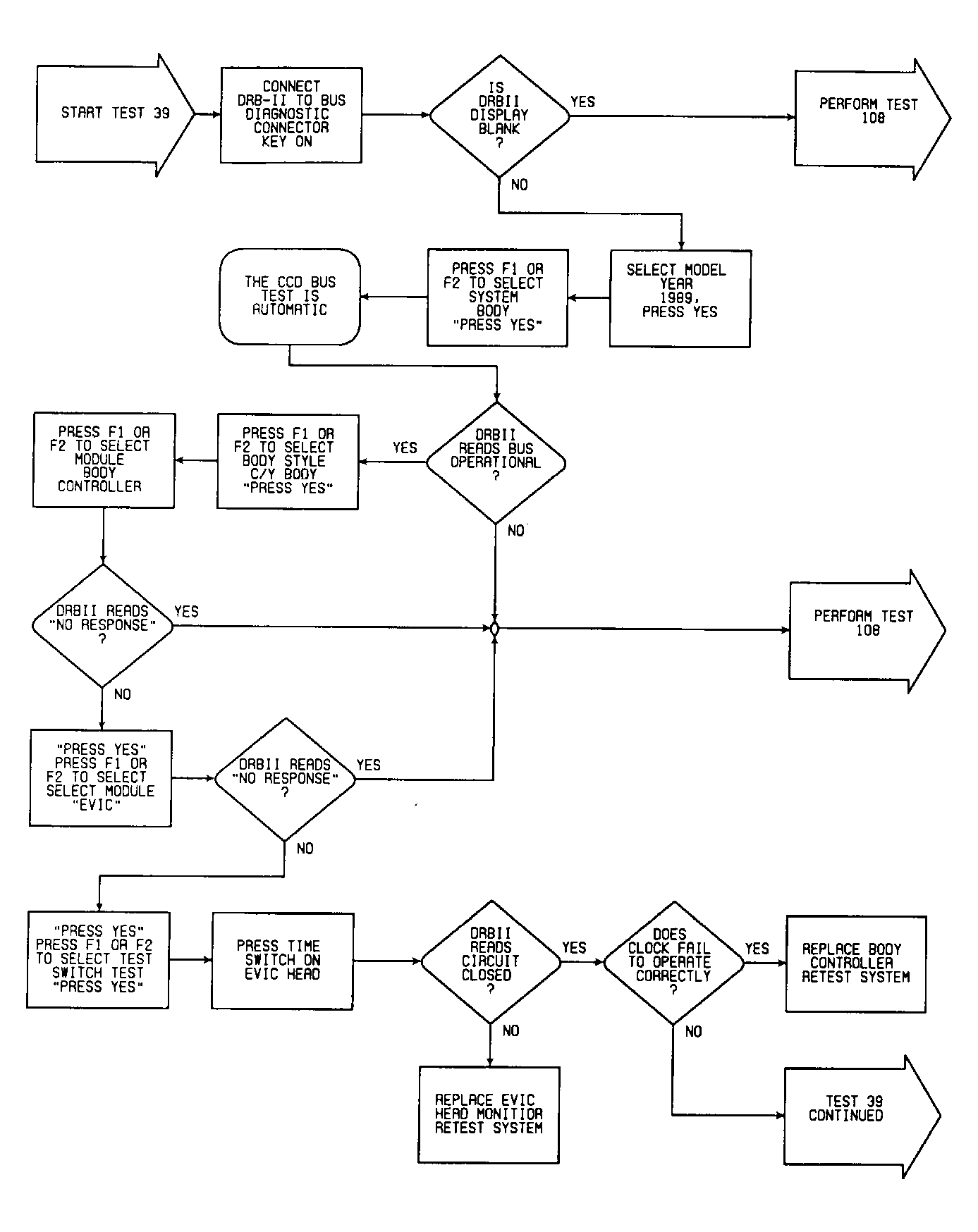

Fig 1: Test 39: Flow Chart (1 of 4)

G90G12282

Fig 2: Test 39: Circuit Diagram (For 2 of 4)

G90F17223

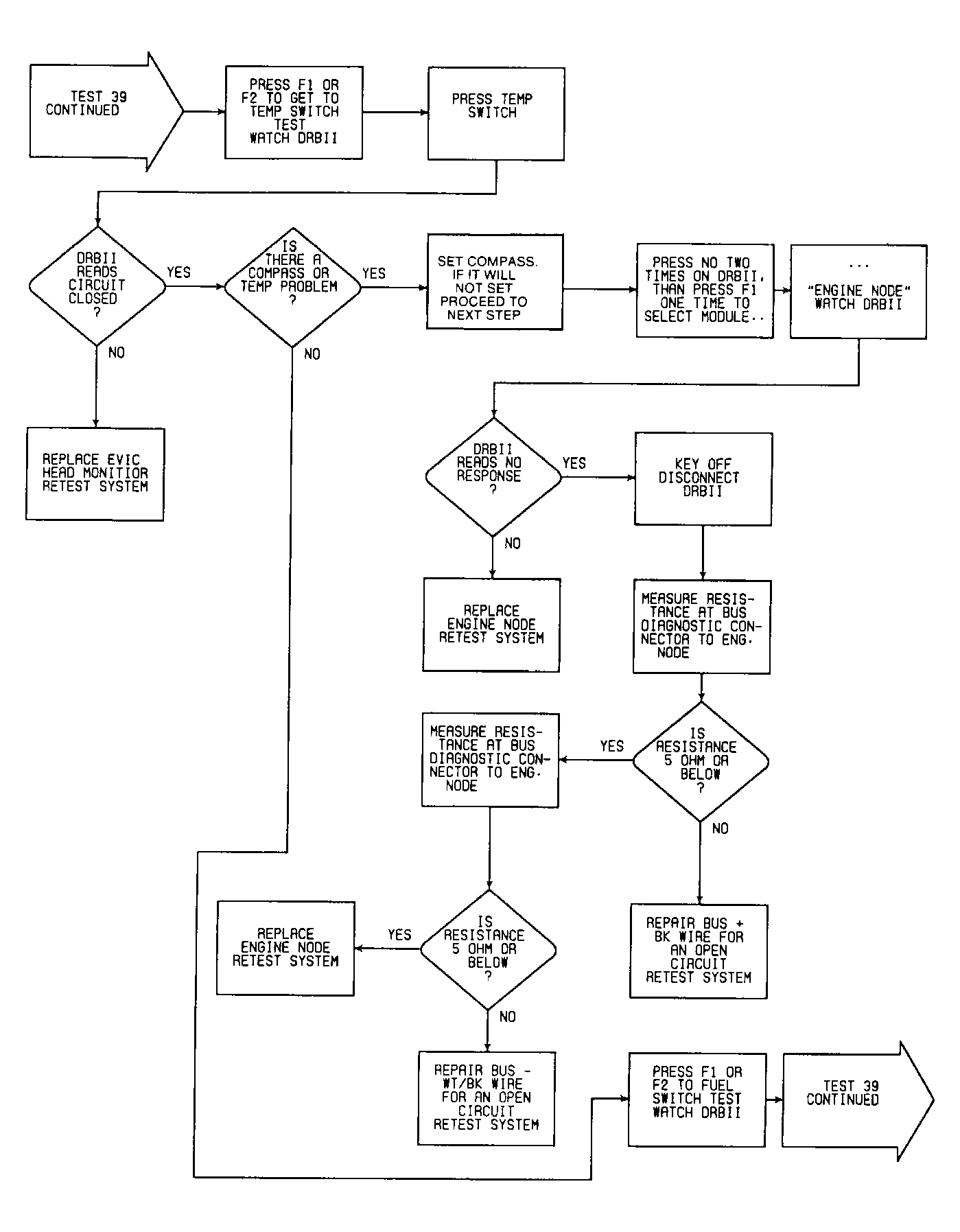

Fig 3: Test 39: Flow Chart (2 of 4)

G90H12283

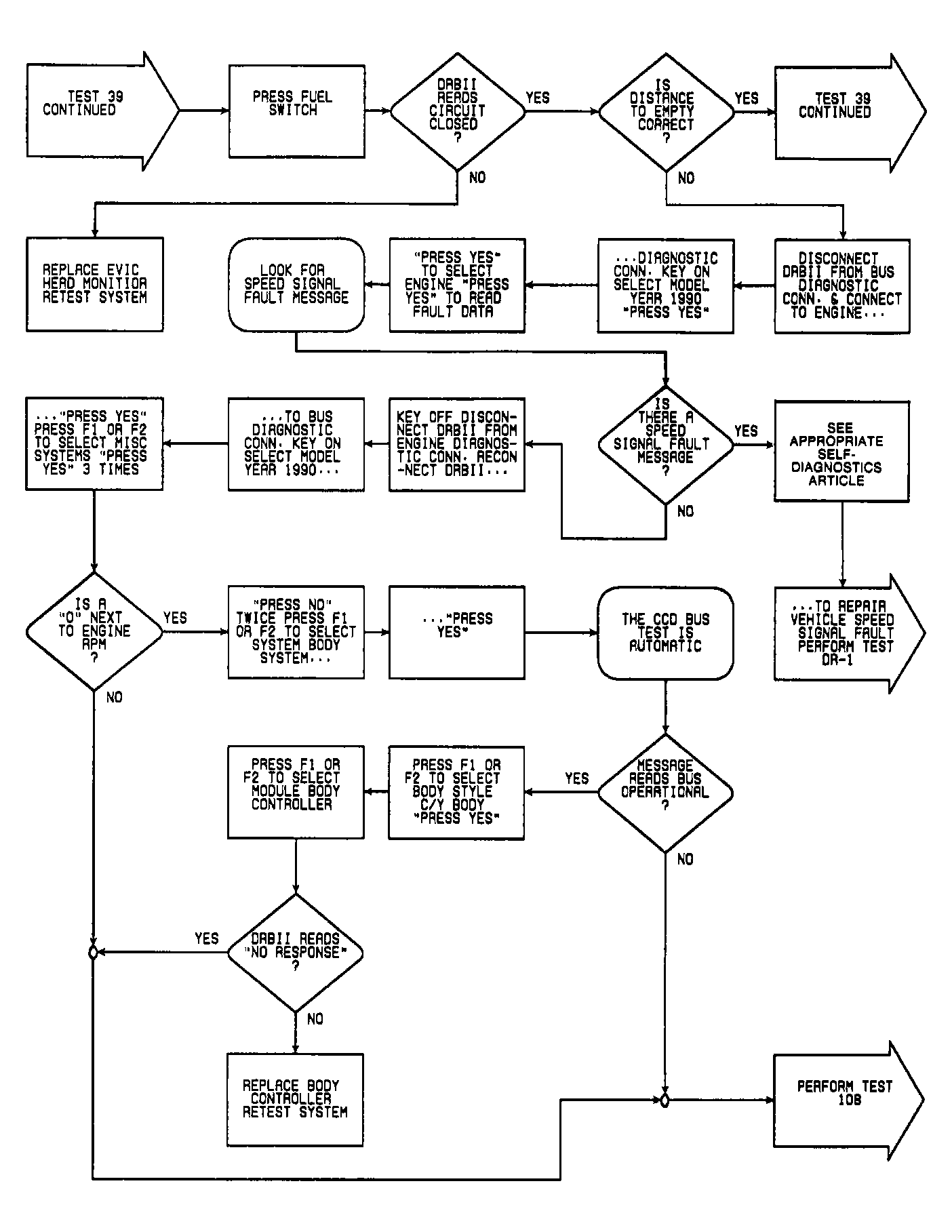

Fig 4: Test 39: Flow Chart (3 of 4)

G90I12284

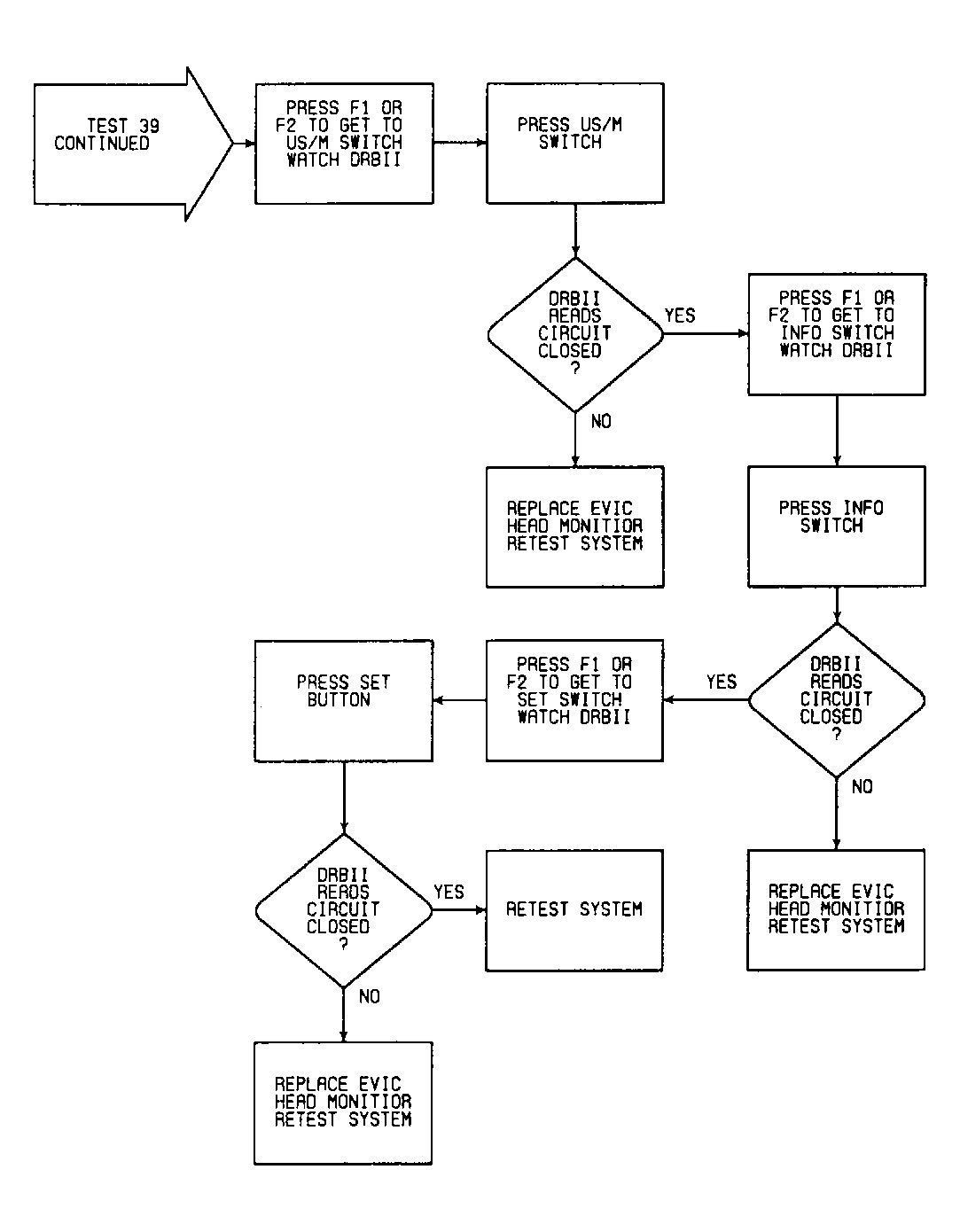

Fig 5: Test 39: Flow Chart (4 of 4)

G90J12285
