Test 50: Door/Deck Light Operating Incorrectly

Fig 1: Test 50: Circuit Diagram (For 1 & 2 of 6)

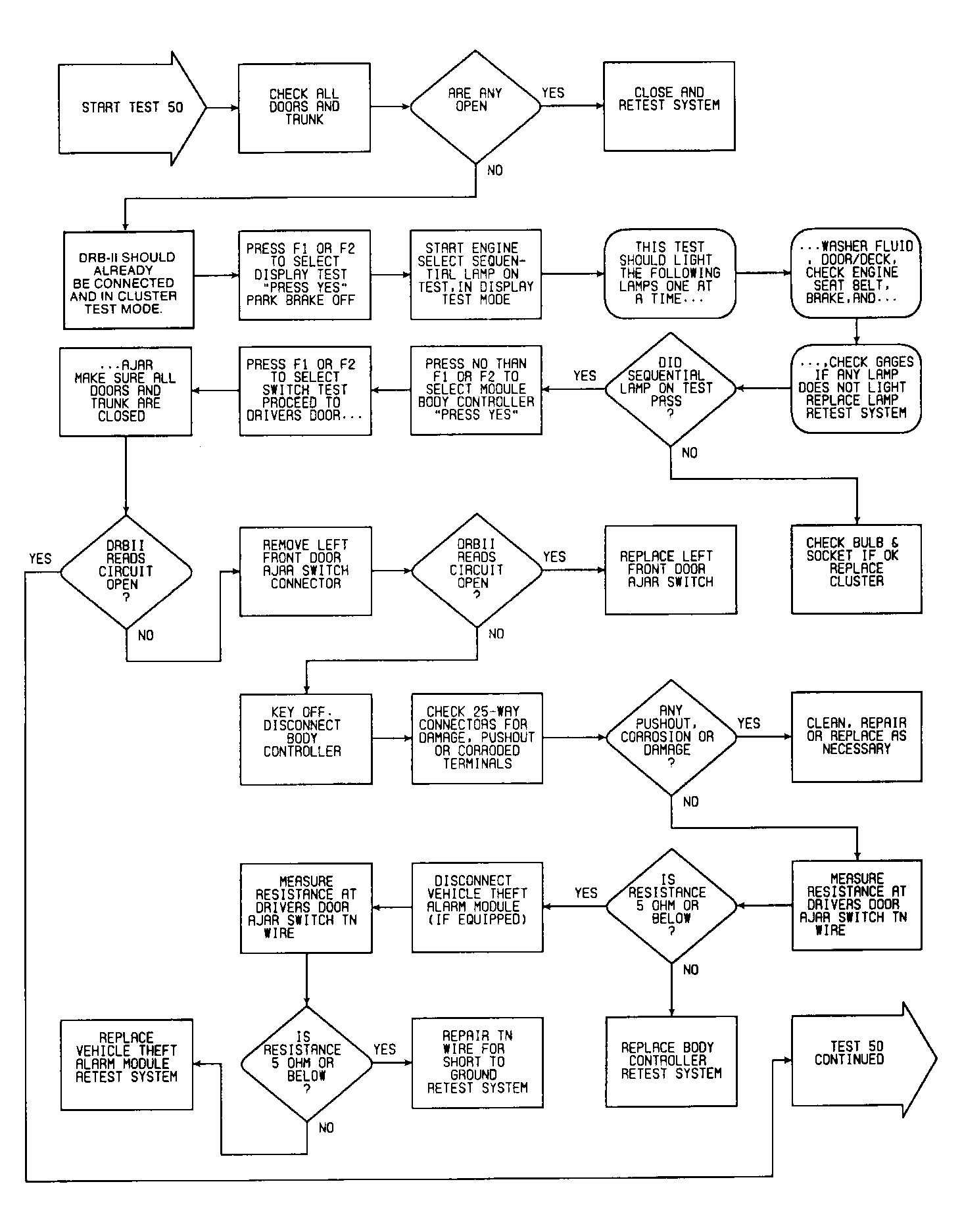

Fig 2: Test 50: Flow Chart (1 of 6)

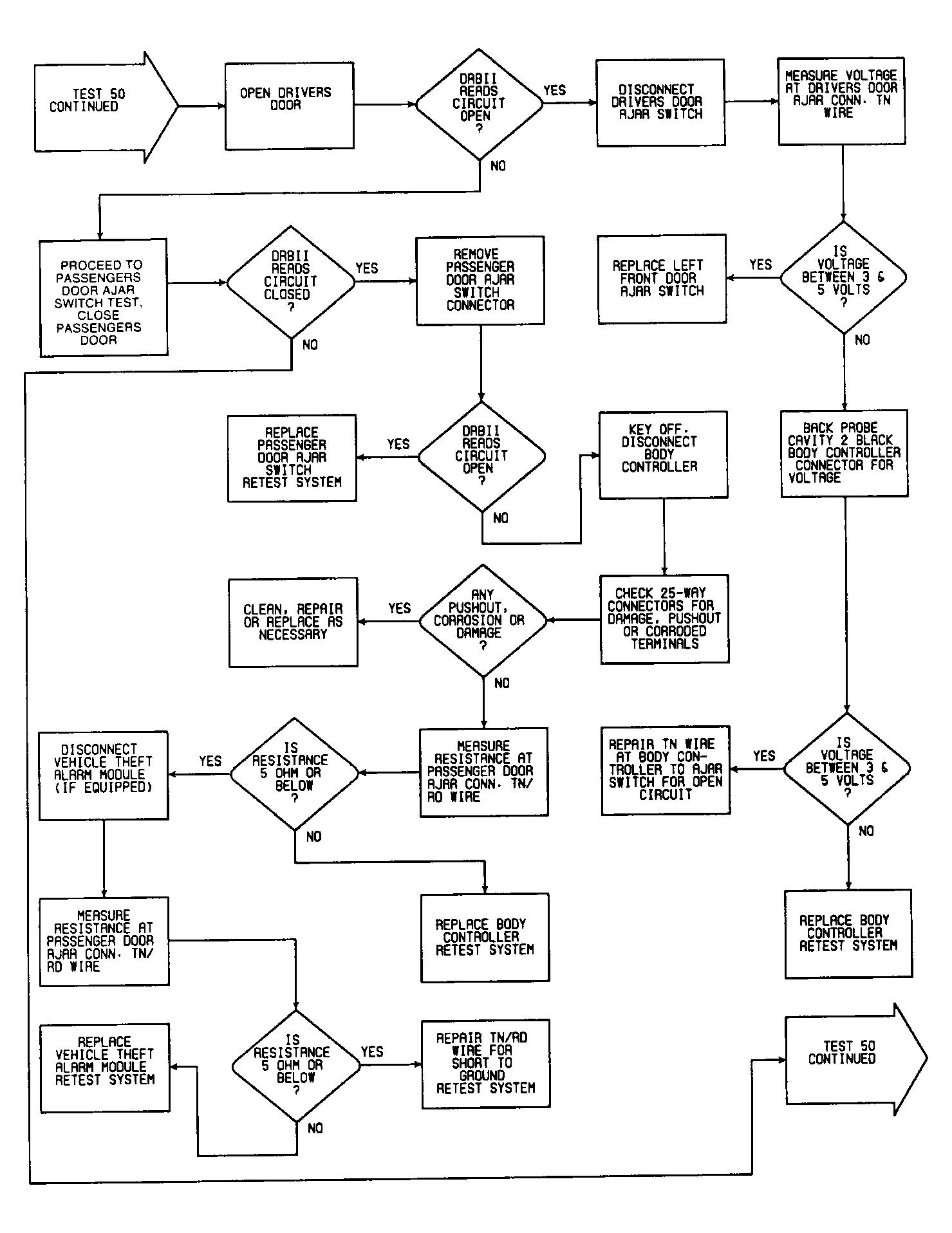

Fig 3: Test 50: Flow Chart (2 of 6)

Fig 4: Test 50: Circuit Diagram (For 3 of 6)

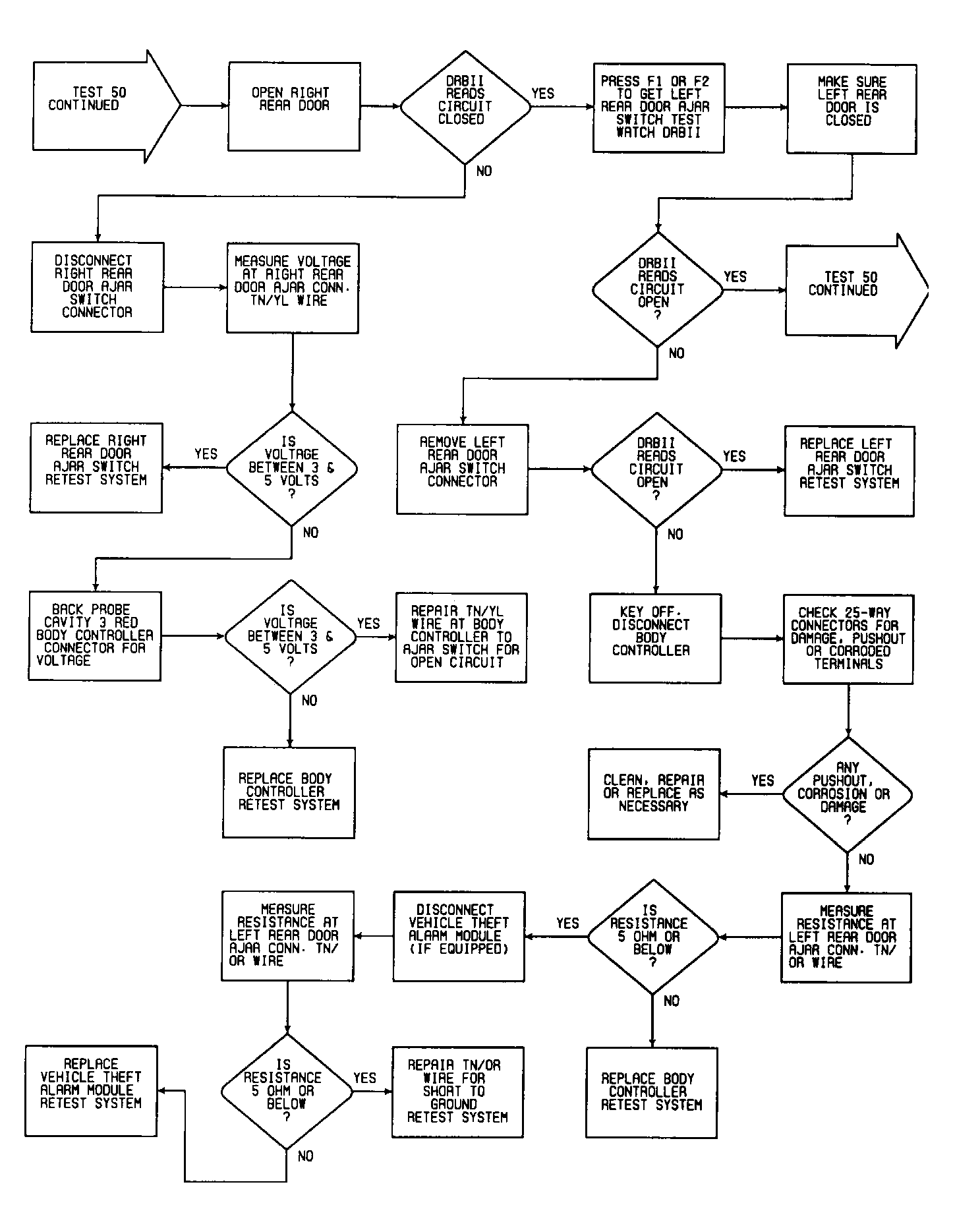

Fig 5: Test 50: Flow Chart (3 of 6)

Fig 6: Test 50: Circuit Diagram (For 4 of 6)

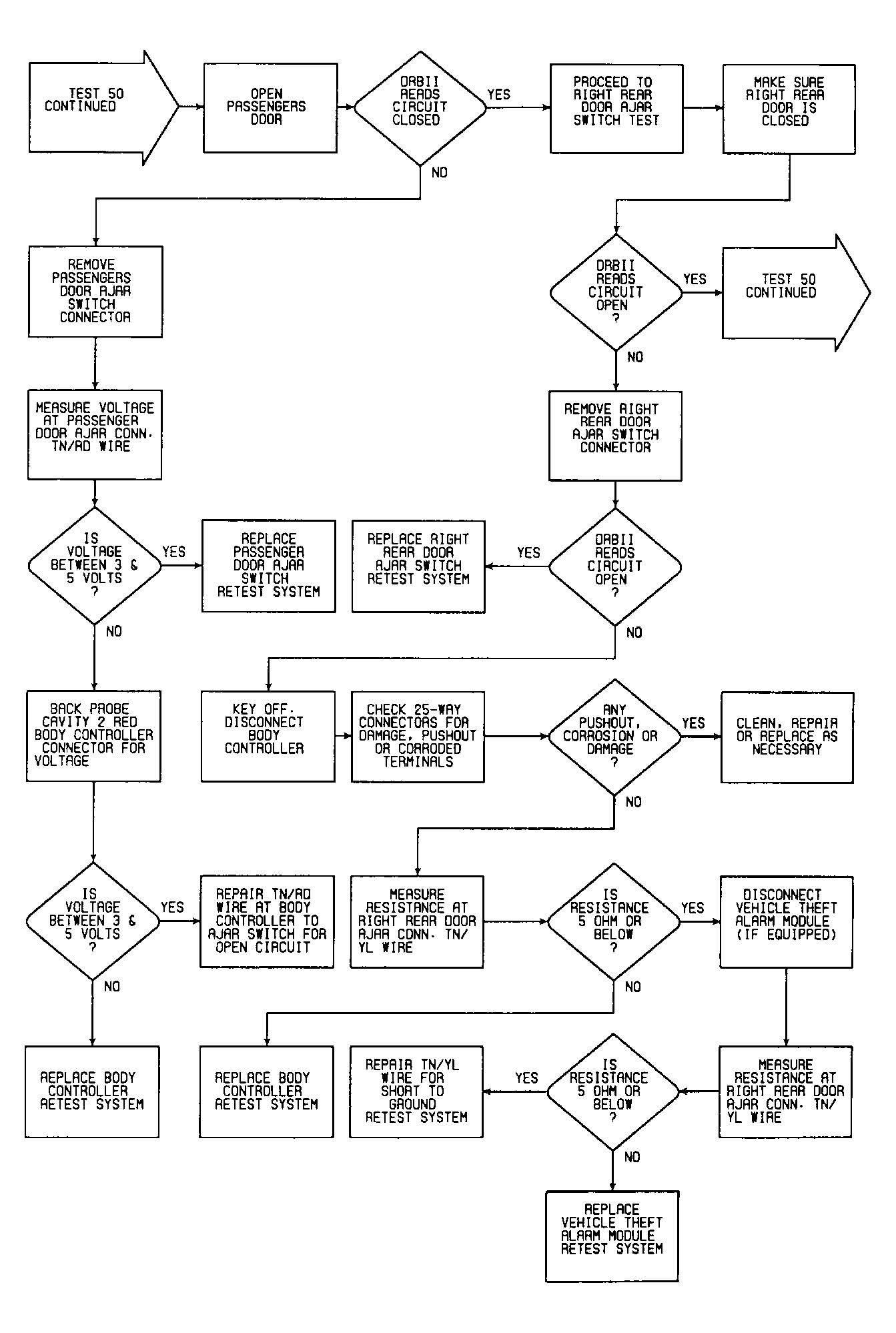

Fig 7: Test 50: Flow Chart (4 of 6)

Fig 8: Test 50: Circuit Diagram (For 5 & 6 of 6)

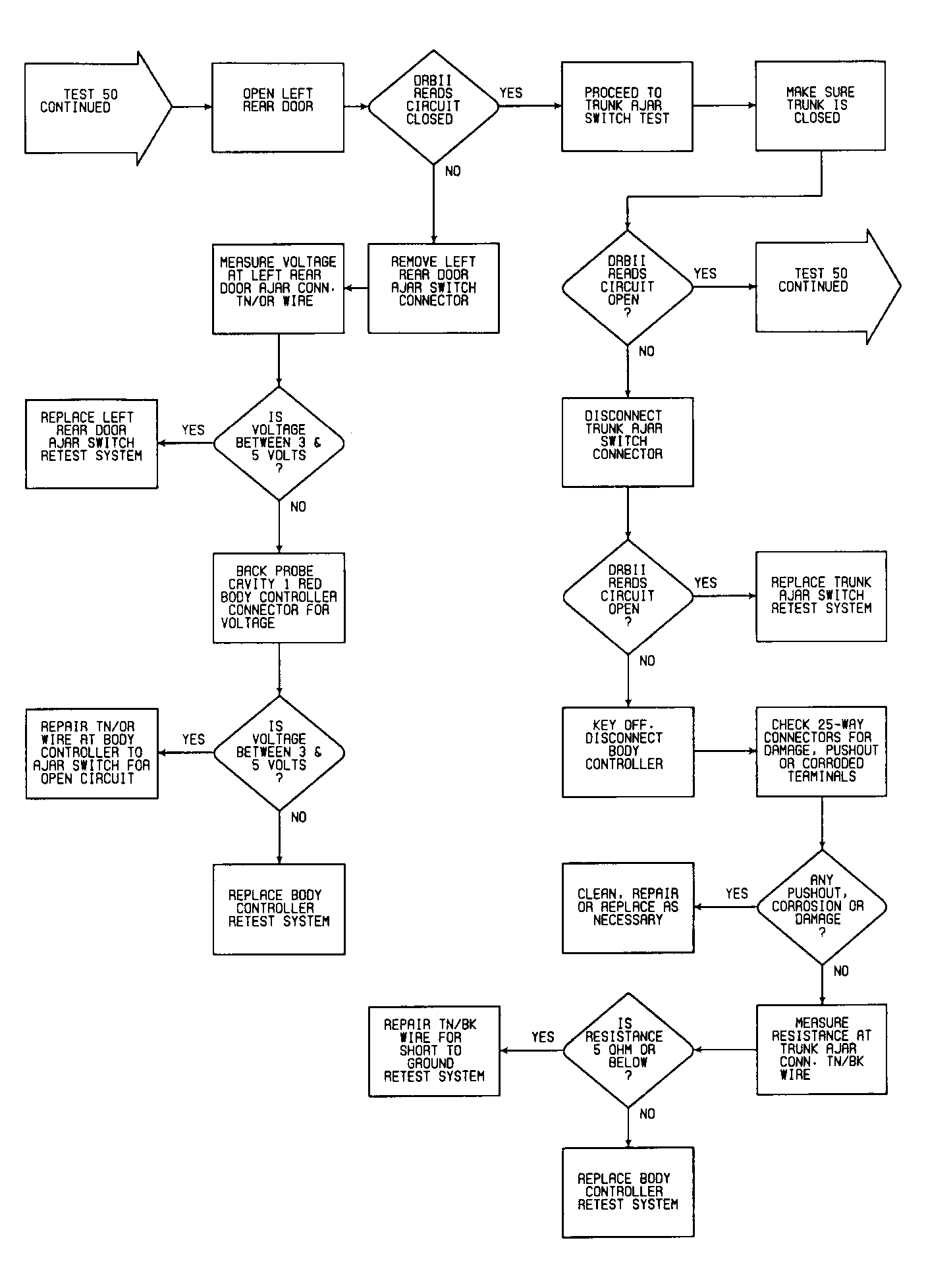

Fig 9: Test 50: Flow Chart (5 of 6)

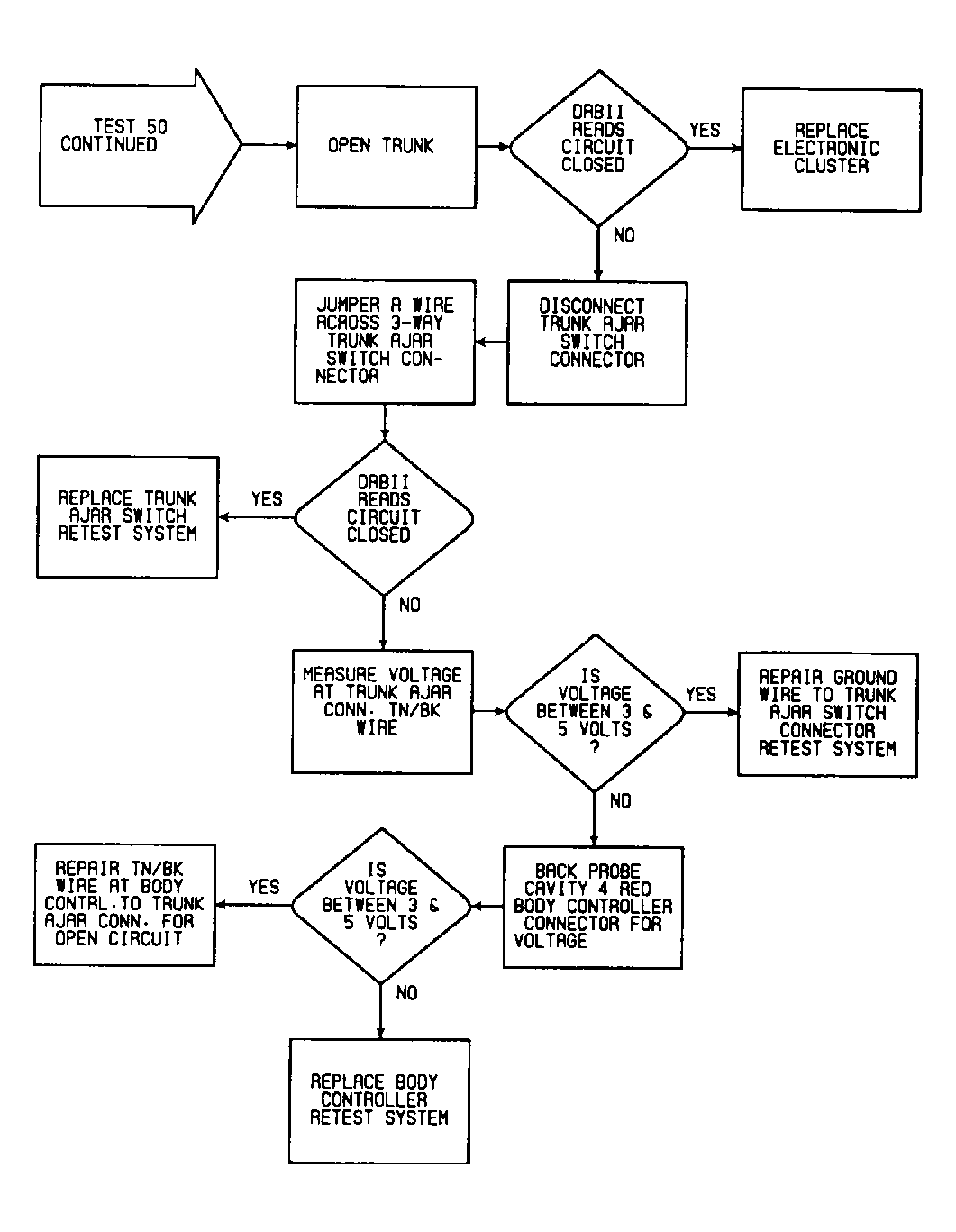

Fig 10: Test 50: Flow Chart (6 of 6)
