Test 52: Brake Light Not Operating Correctly

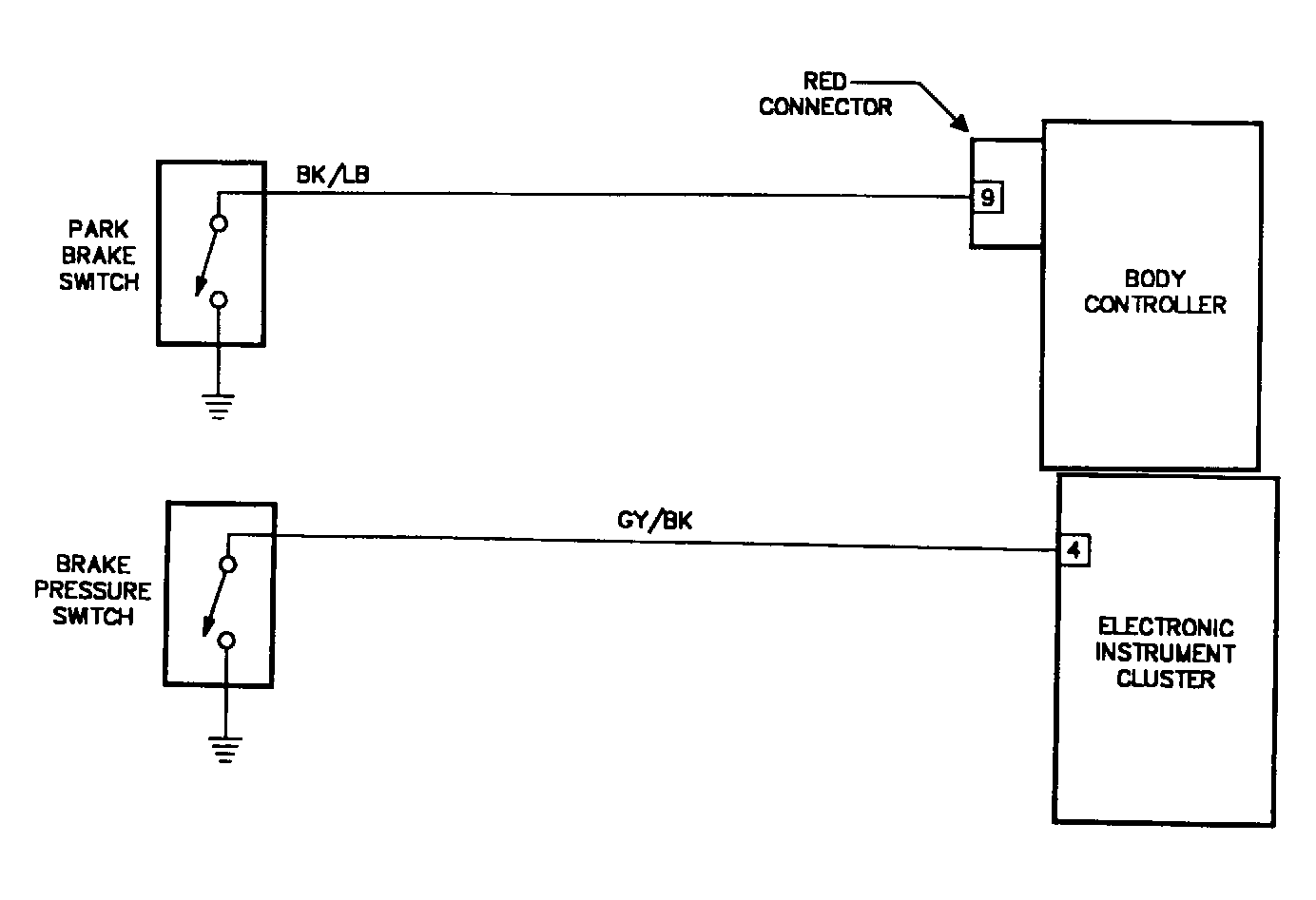

Fig 1: Test 52: Circuit Diagram

G90I17234

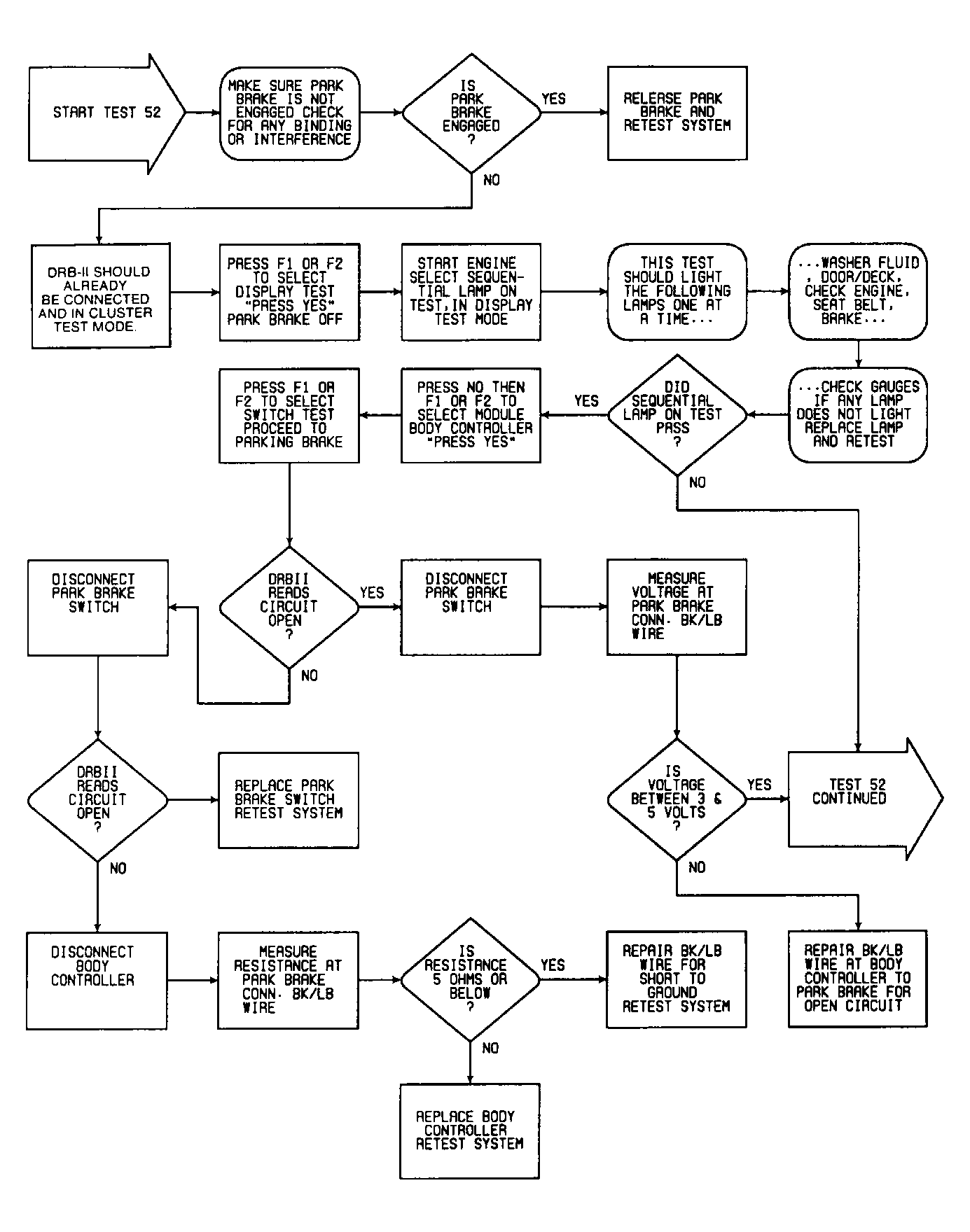

Fig 2: Test 52: Flow Chart (1 of 2)

G90A12310

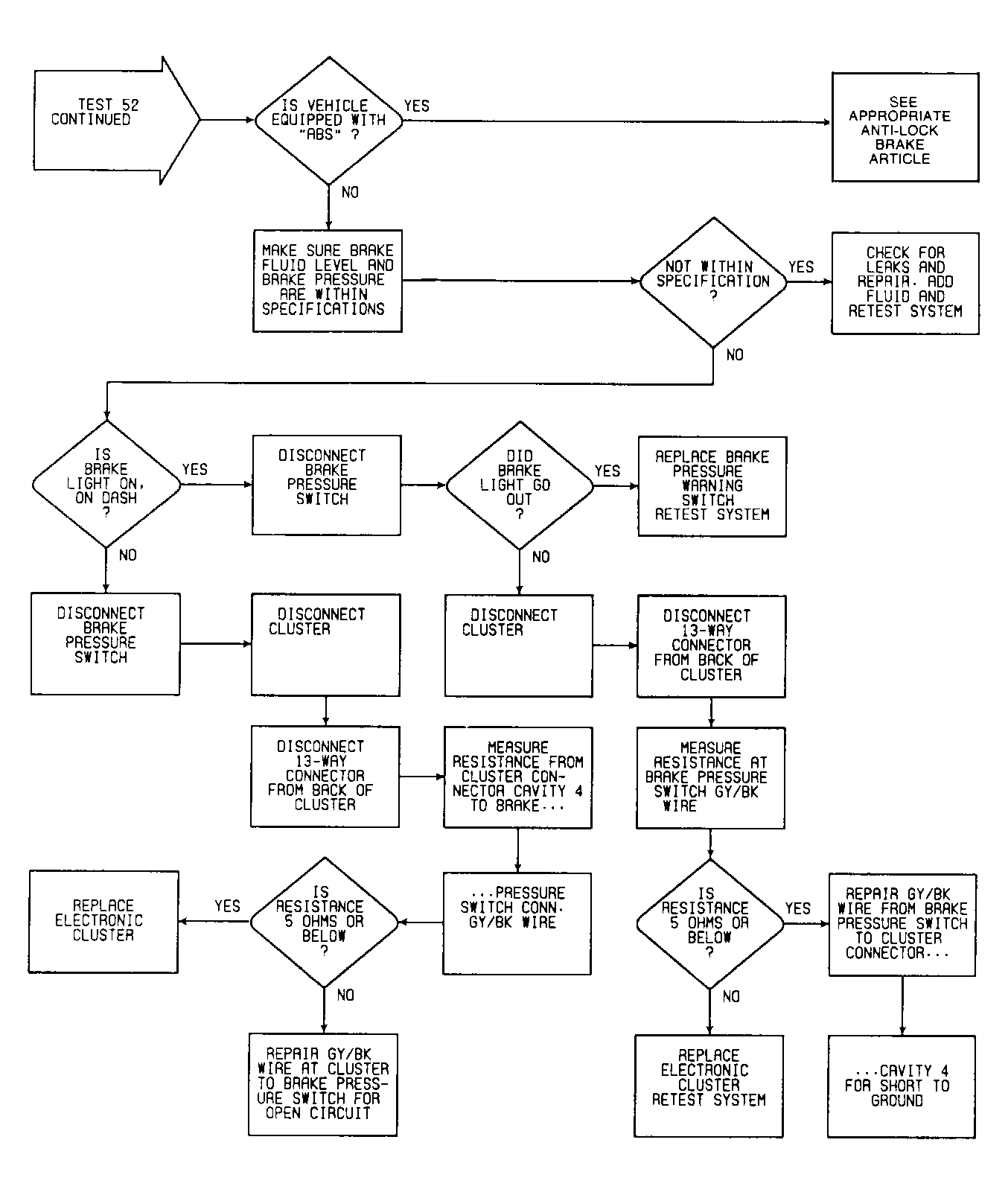

Fig 3: Test 52: Flow Chart (2 of 2)

G90B12311
