Firing Order & Distributor Rotation (3.9L)

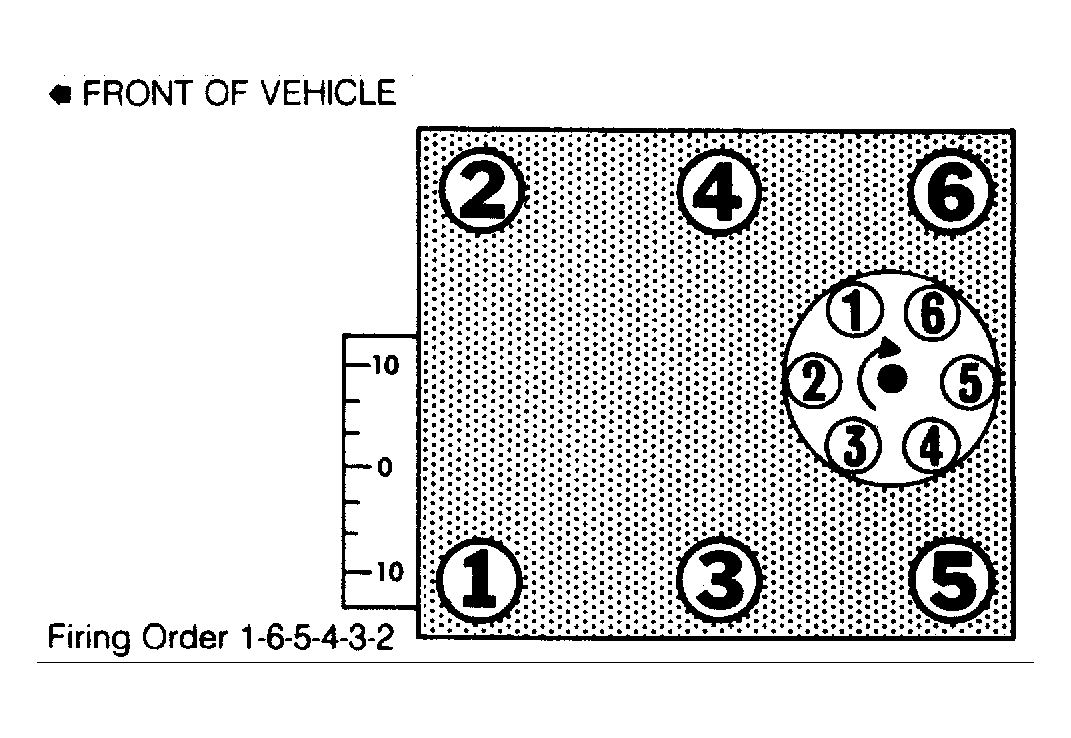

Fig 1: Firing Order & Distributor Rotation (3.9L)

G71868
