Test 6A - Repairing Temperature Gauge Problems

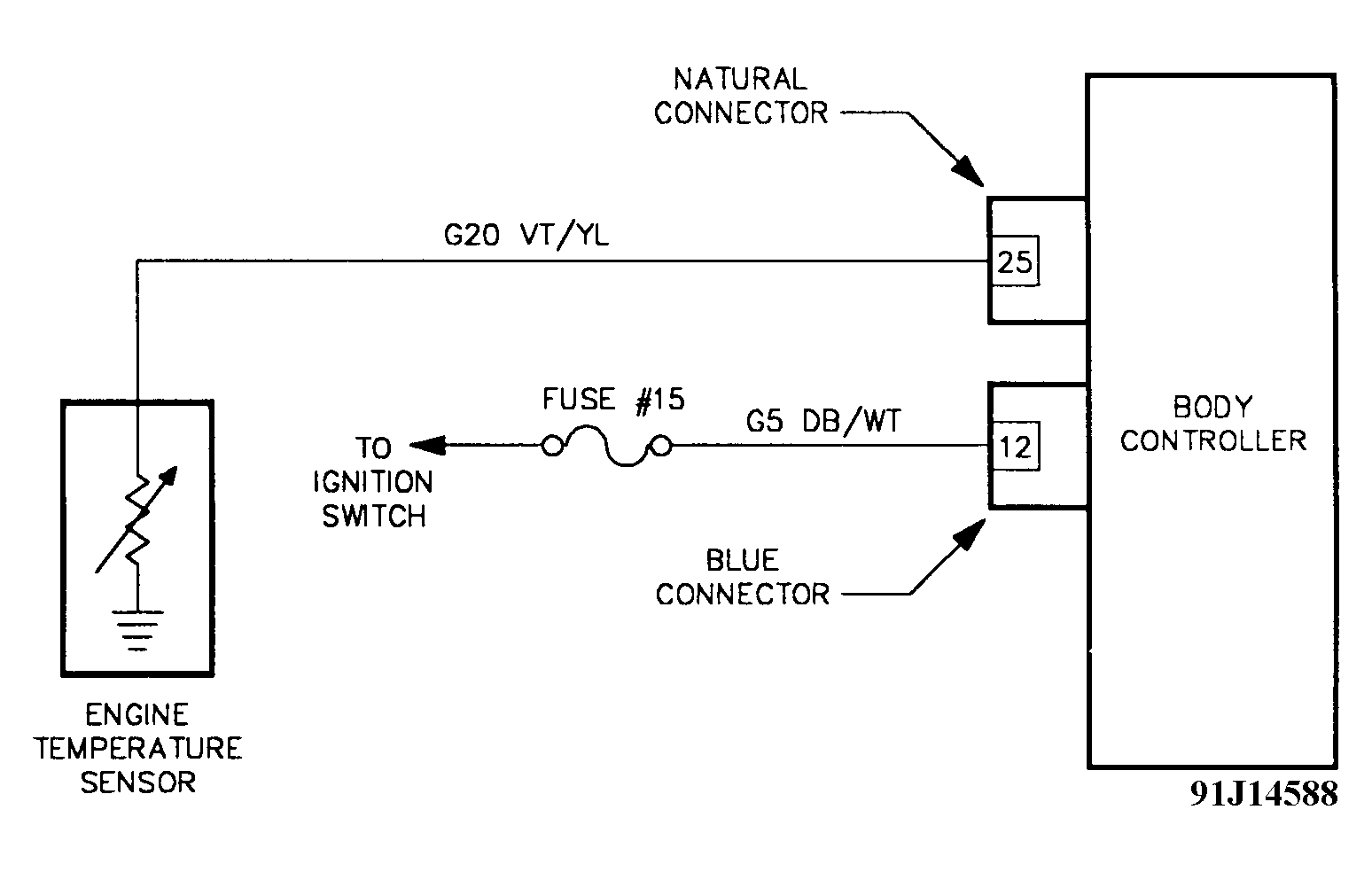

Fig 1: Test 6A Schematic - Repairing Temperature Gauge Problems
G91J14588

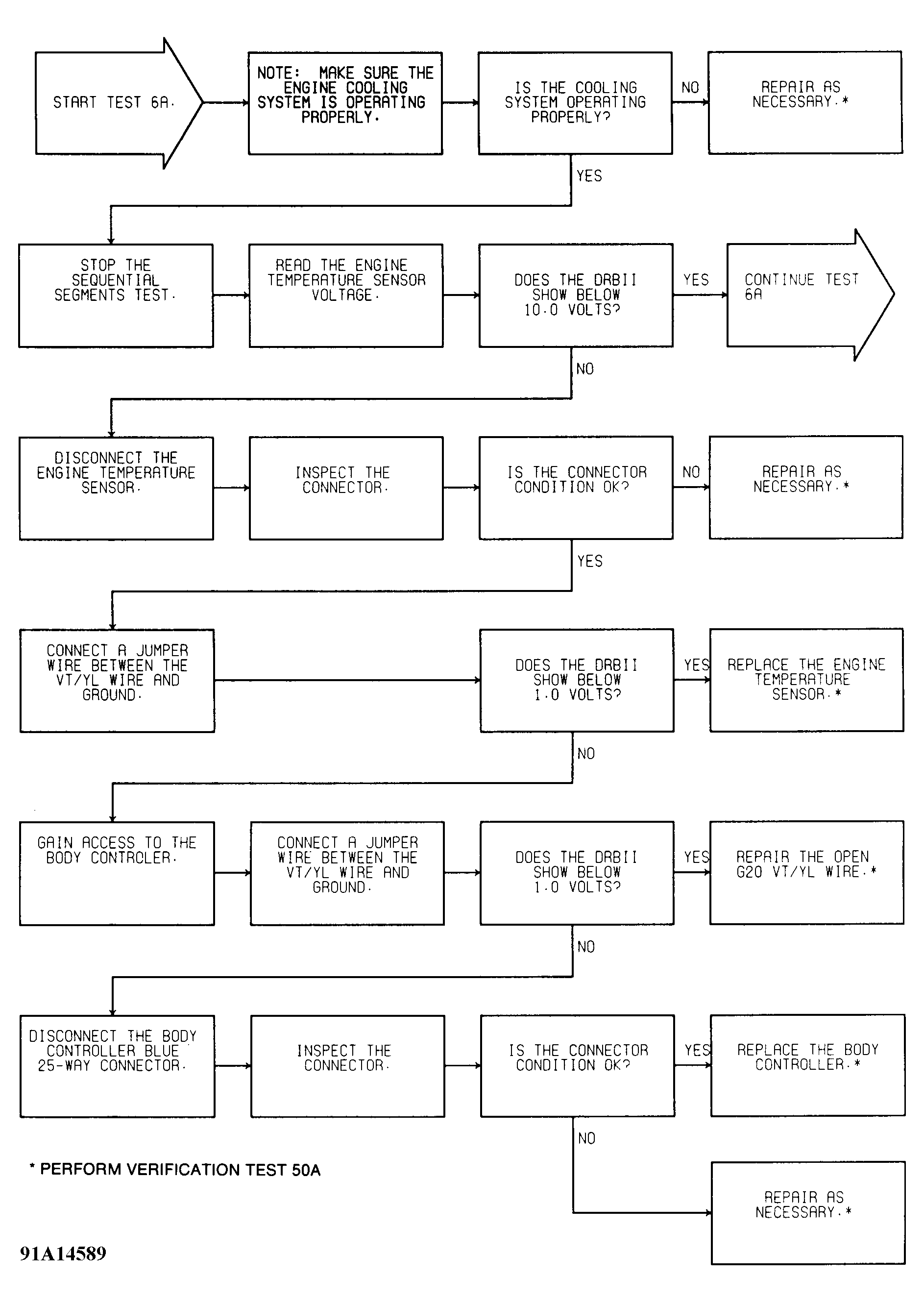

Fig 2: Test 6A Flow Chart (1 of 2) - Repairing Temp. Gauge Problems
G91A14589

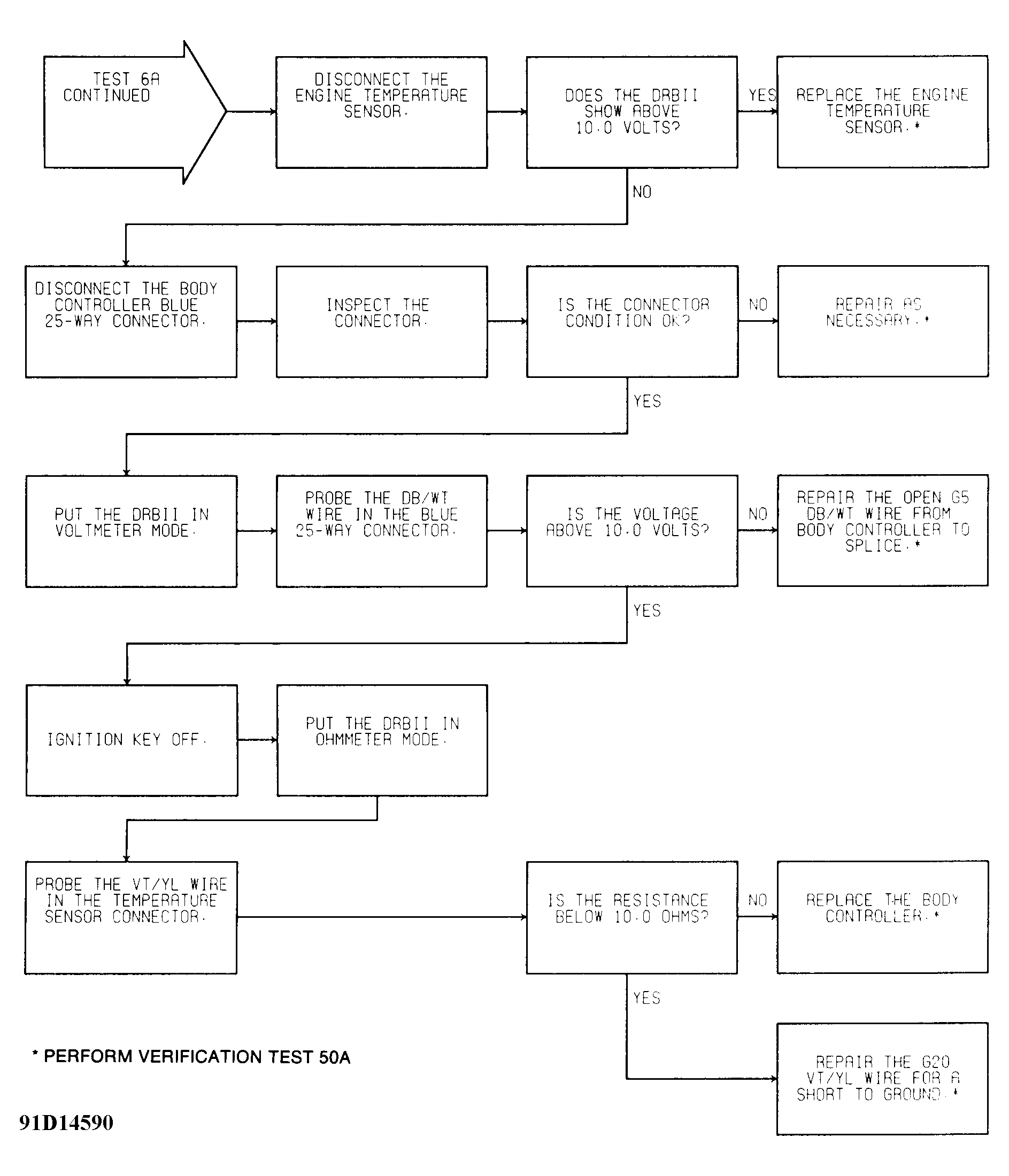

Fig 3: Test 6A Flow Chart (2 of 2) - Repairing Temp. Gauge Problems
G91D14590
