Recliner Switch

For switch testing, remove the switch from its mounting position. Using a ohmmeter, and check recliner switch continuity. See Fig 1 . If there is no continuity at any one of the switch positions, replace the switch.

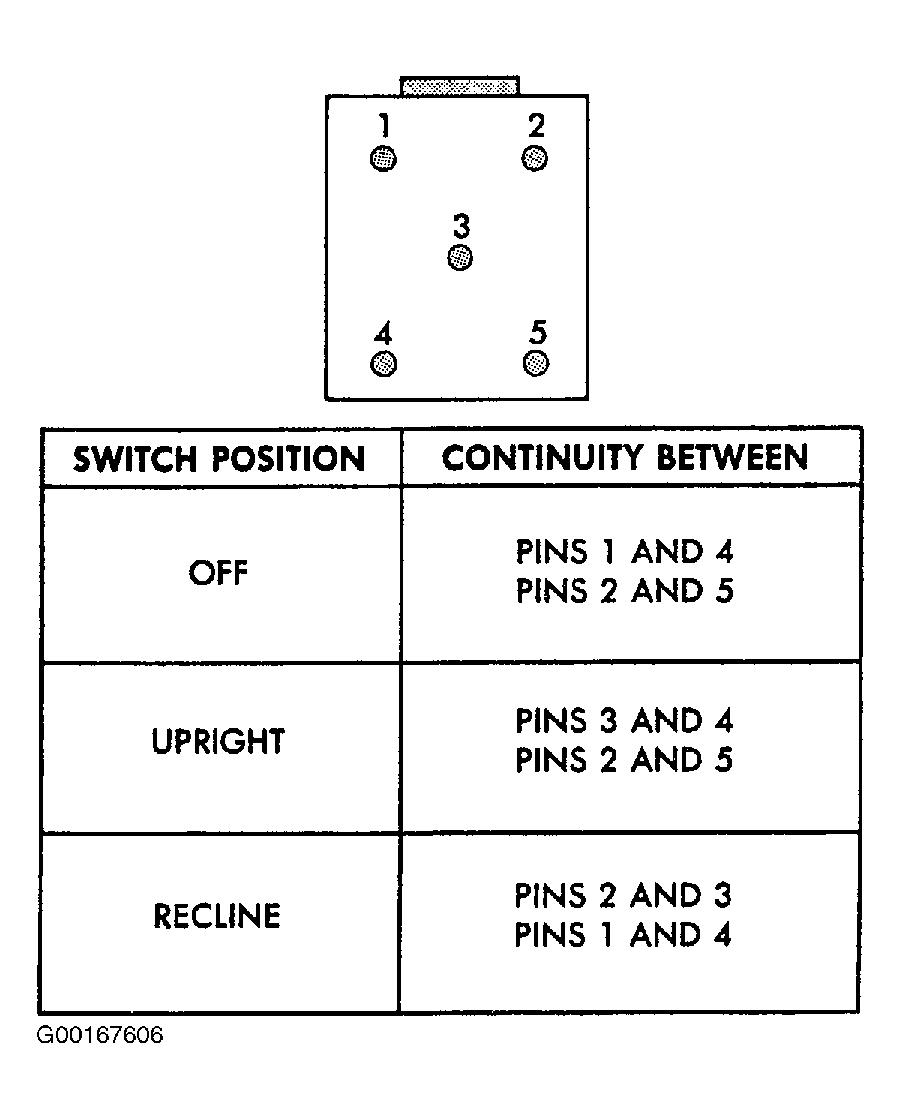

Fig 1: Testing Continuity In Recliner Switch

Courtesy of CHRYSLER CORP.
