Entering DRB-II Main Menu

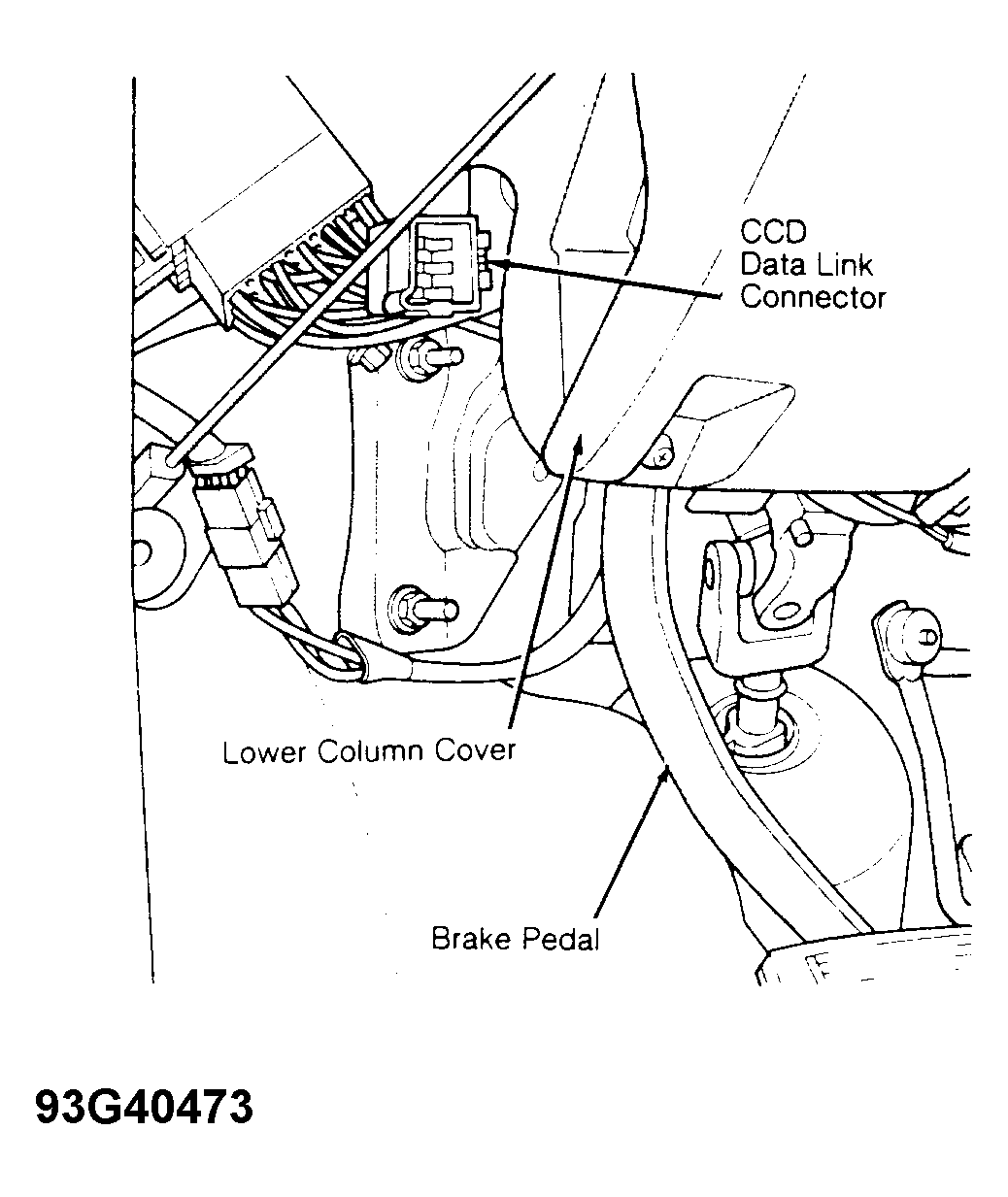

- Ensure ignition is off. Attach DRB-II to Chrysler Collision Detection (CCD) data link connector, located under instrument cluster, left of steering column. See Fig 1. Turn ignition to RUN position.
- All DRB-II character positions will illuminate and copyright information will appear on screen for a few seconds. DRB-II main menu will appear after a few seconds. If DRB-II screen is blank or any error messages appear, see DRB-II PROBLEMS & ERROR MESSAGES .
Courtesy of CHRYSLER CORP.
