Cruise Control Switch: Testing and Inspection

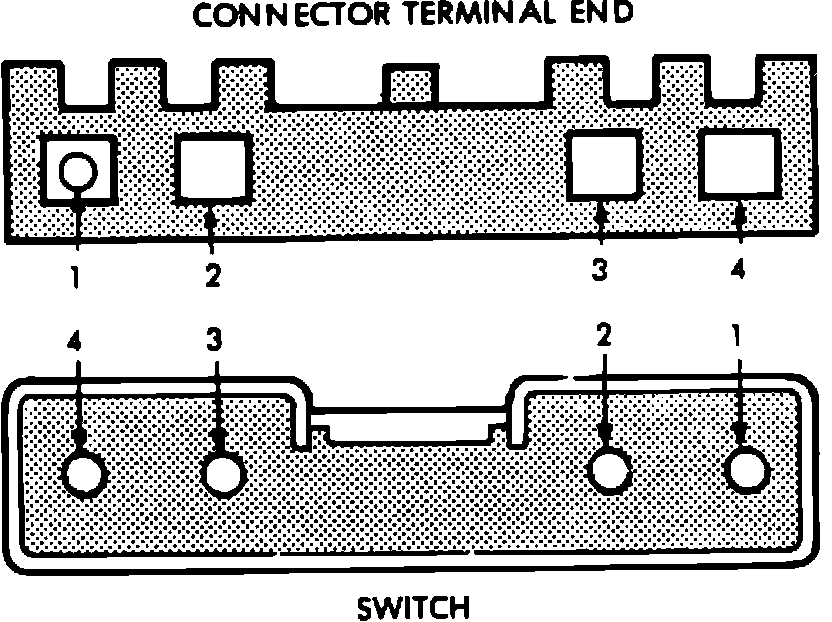

Fig. 8 Speed Control Connector Terminal Identification:

Fig. 9 Speed Control Continuity Chart. 1991 Models:

WARNING: If removal of airbag is necessary, refer to Air Bags and Seat Belts.

1. Remove the switch and disconnect the 4-way connector.
2. Using an ohmmeter, test continuity at the four pins of the vehicle speed control switch. Refer to figures 8 and 9.
3. If there is no continuity or incorrect continuity at any one of the switch positions, replace the switch.
