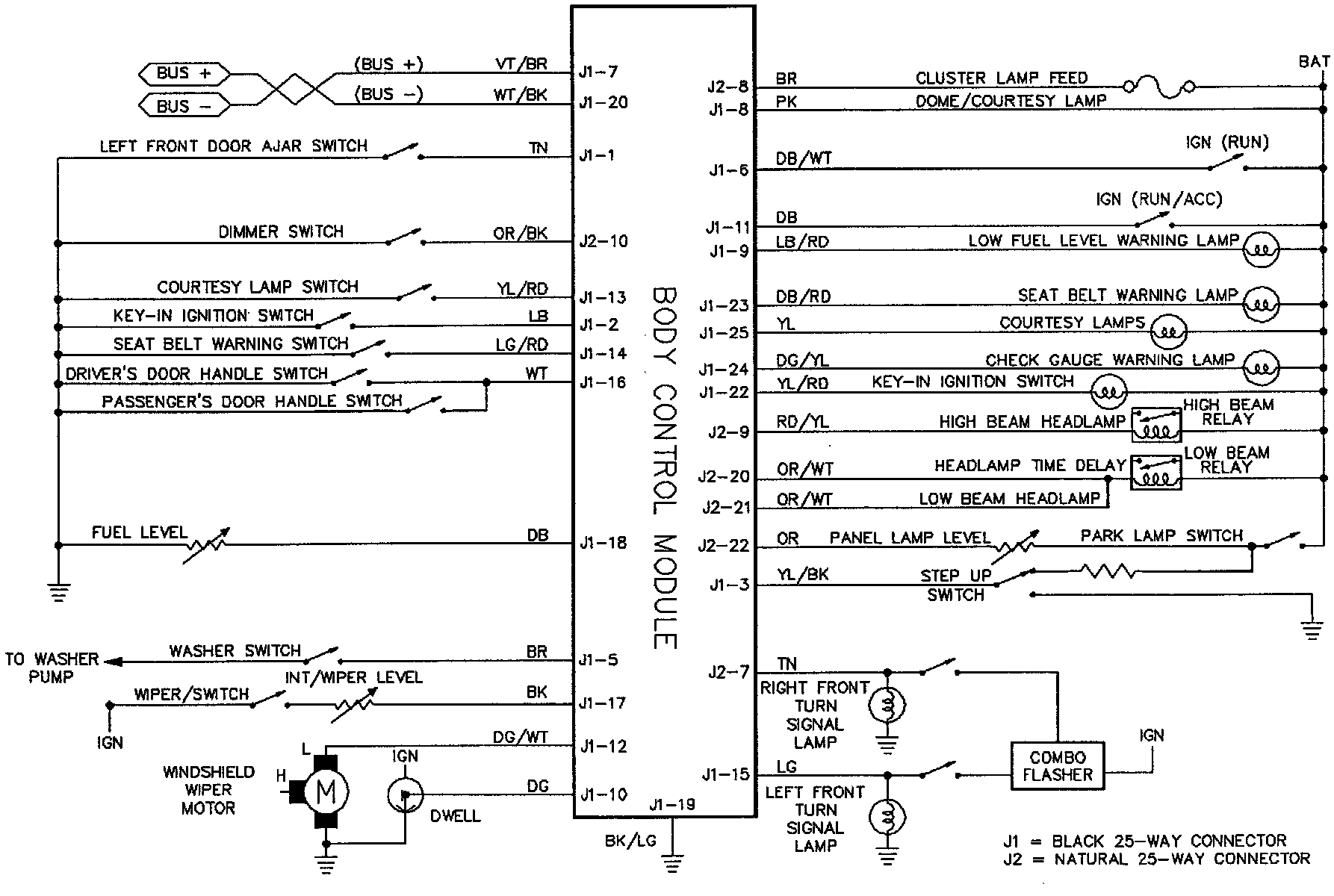

Home >> Chrysler >> 1993 >> Lebaron Convertible L4-135 2.2L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Wiring Diagrams >> Schematic Diagrams >> Body Control Module (Base)
