Component Tightening Specifications and Sequences

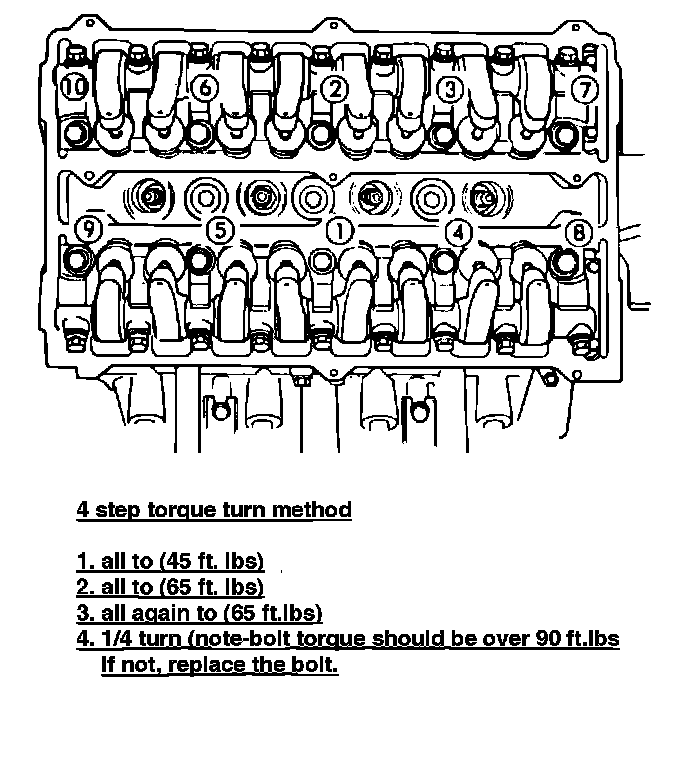

Fig. 11 Cylinder Head Tightening Sequence. 1991-92 2.2L/4-135 Turbo III Engine (VIN A).:
