Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector Figure
CCD Data Link 6
Controller Anti-Lock Brake (CAB) 7
Hydraulic Control Unit (HCU) 8
Relay Box 9
Rear Wheel Speed Sensor Harness 10
Wheel Speed Sensors 11
NOTE: The following illustrations are courtesy of Chrysler Corp.

Following table is for Fig 1:

CCD DATA LINK CONNECTOR

Terminal No. Wire Color Function
3 VIO/GRY CCD Bus (+)
4 BLK Ground
5 BLK/VIO Ground
6 LT GRN SCI Receive
7 PNK/LT BLU SCI Transmit/ISO 9141K
9 PNK Fused Battery (+)
14 WHT/DK GRN CCD Bus ( - )
Fig 1: Identifying CCD Data Link Connector Terminals
G95A13789Courtesy of CHRYSLER CORP.

Following table is for Fig 2:

CONTROLLER ANTI-LOCK BRAKE (CAB) CONNECTOR

Terminal No. Wire Color Function
1 YEL/DK BLU RR WSS ( - )
2 YEL RR WSS (+)
3 LT GRN/DK BLU LR WSS ( - )
4 LT GRN LR WSS (+)
5 BLK Ground
6 WHT/DK BLU RF WSS ( - )
7 WHT RF WSS (+)
8 ORG/DK BLU LF WSS ( - )
9 ORG LF WSS (+)
13 WHT/BRN (1)
14 GRY/DK GRN Brake Warning Light Driver
15 LT GRN/ORG ABS Warning Light Driver
16 GRY/LT BLU Pump/Motor Relay Control
20 BRN/WHT Pump/Motor Relay Monitor
42 BRN/YEL LF Decay Solenoid Control
43 DK GRN/YEL RF Decay Solenoid Control
46 BRN/LT BLU LR Decay Solenoid Control
47 BRN/RED ABS Relay Output
48 DK GRN/LT BLU RR Decay Solenoid Control
51 PNK/LT BLU SCI Transmit/ISO 9141K
57 BRN/BLK ABS Relay Control
60 DK BLU/WHT Fused Ignition Switch Output
(1) Brake warning light switch output.
Fig 2: Controller Anti-Lock Brake (CAB) Connector Terminals
G95D13790Courtesy of CHRYSLER CORP.

Following table is for Fig 3:

HYDRAULIC CONTROL UNIT CONNECTOR

Terminal No. Wire Color Function
1 BRN/LT BLU LR Decay Solenoid Control
2 DK GRN/YEL RF Decay Solenoid Control
3 BRN/YEL LF Decay Solenoid Control
4 DK GRN/LT BLU RR Decay Solenoid Control
5 BLK Ground
6 BLK Ground
Fig 3: Hydraulic Control Unit (HCU) Connector Terminals
G95F13792Courtesy of CHRYSLER CORP.

Following table is for Fig 4:

RELAY BOX 10-PIN CONNECTOR

Terminal No. Wire Color Function
1 RED/DK GRN Fused Battery (+)
2 BRN/BLK ABS Relay Control
3 GRY/LT BLU Pump/Motor Relay Control
5 RED/DK BLU SOL Fused Battery (+)
6 BRN/WHT Pump/Motor Relay Output
7 LT GRN/ORG ABS Warning Light Driver
9 BRN/RED ABS Relay Output
10 BLK Ground
Fig 4: Identifying Relay Box Connector Terminals
G95G13793Courtesy of CHRYSLER CORP.

Following table is for Fig 5:

REAR WHEEL SPEED SENSOR HARNESS CONNECTOR

Terminal No. Wire Color Function
1 DK GRN/WHT Fuel Pump Relay Output
2 VIO/BLK Reverse Light
3 BLK Ground
4 BLK/LT GRN Ground
5 LT GRN LR WSS (+)
6 LT GRN/DK BLU LR WSS ( - )
7 YEL RR WSS (+)
8 YEL/DK BLU RR WSS ( - )

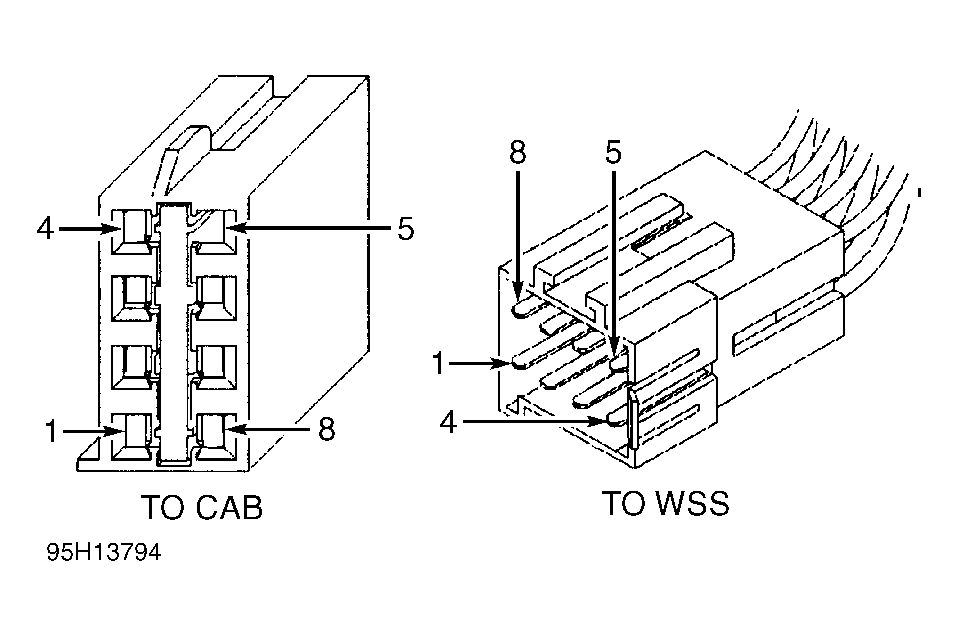

Fig 5: Rear Wheel Speed Sensor Harness Connector Terminals
G95H13794Courtesy of CHRYSLER CORP.

Following 4 tables are for Fig 6:

LEFT FRONT WHEEL SPEED SENSOR CONNECTOR

Terminal No. Wire Color Function
1 ORG Sensor (+)
2 ORG/DK BLU Sensor ( - )
LEFT REAR WHEEL SPEED SENSOR CONNECTOR

Terminal No. Wire Color Function
1 LT GRN Sensor (+)
2 LT GRN/DK BLU Sensor ( - )
RIGHT FRONT WHEEL SPEED SENSOR CONNECTOR

Terminal No. Wire Color Function
1 WHT Sensor (+)
2 WHT/DK BLU Sensor ( - )
RIGHT REAR WHEEL SPEED SENSOR CONNECTOR

Terminal No. Wire Color Function
1 YEL Sensor (+)
2 YEL/DK BLU Sensor ( - )
Fig 6: Identifying Wheel Speed Sensor Connector Terminals
G95J13796Courtesy of CHRYSLER CORP.
