Front Wheel Speed Sensor: Installation

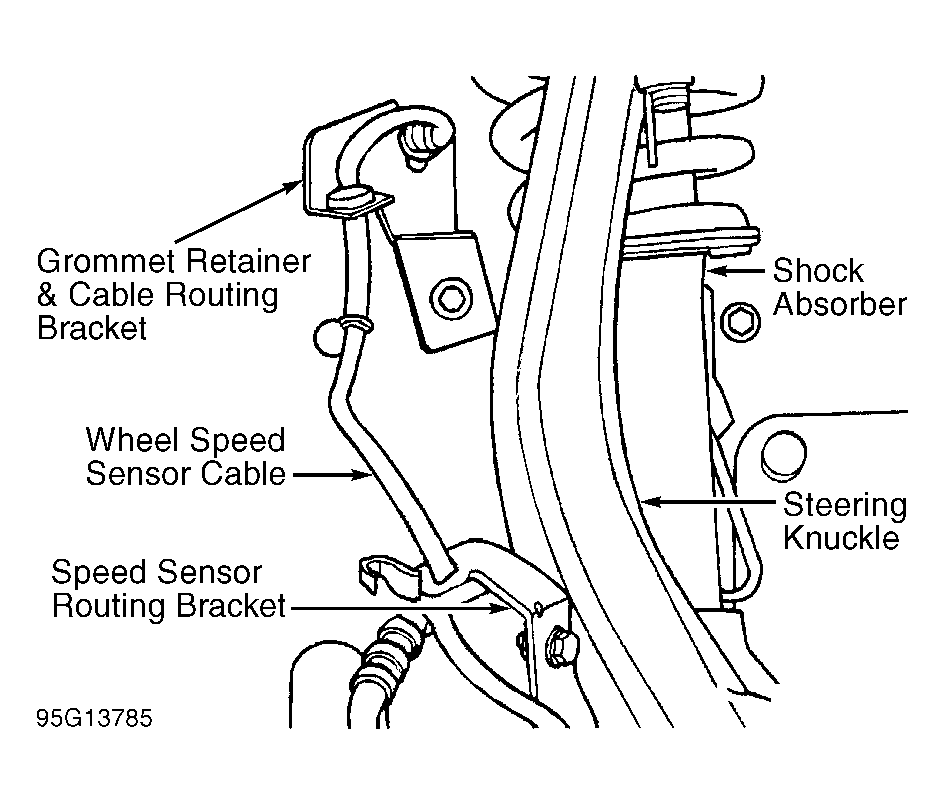

Ensure knuckle sensor hole is clean. Before installing sensor into housing hole, lightly coat sensor with high-temperature multipurpose grease. Tighten sensor screw to 55 INCH lbs. (6 N.m). There is no sensor air gap adjustment. When installing cable routing bracket on steering knuckle, ensure sensor cable is looped toward shock absorber. To complete installation, reverse removal procedure.
