Test Verification

For test procedures, see Fig 1.

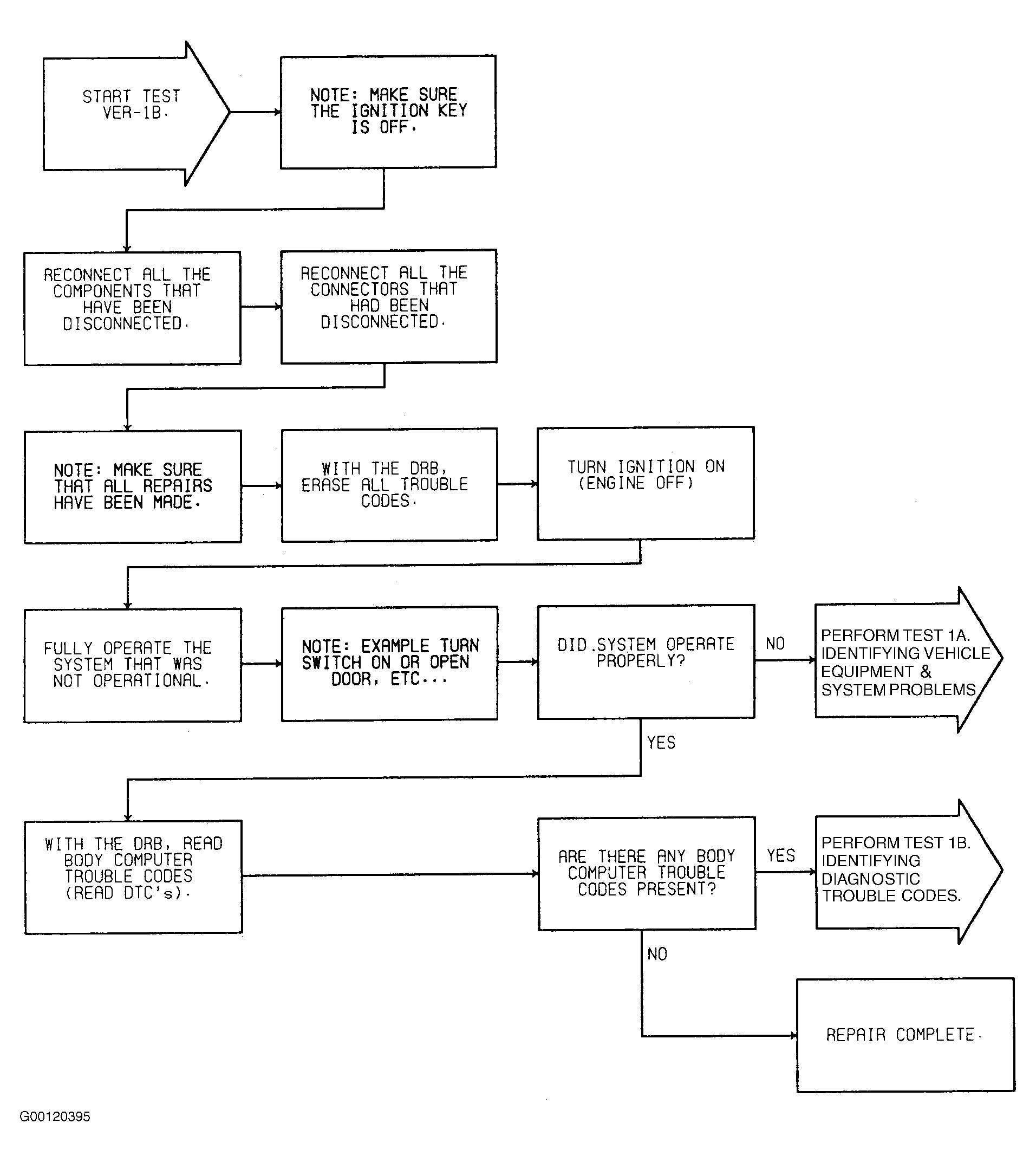

Fig 1: Verification Test 1-B
G00120395Courtesy of CHRYSLER CORP.
