Pump/Motor Assembly

Pump/motor assembly on Bendix-4 ABS can only be serviced as part of modulator assembly. See MODULATOR ASSEMBLY. See Fig 1.

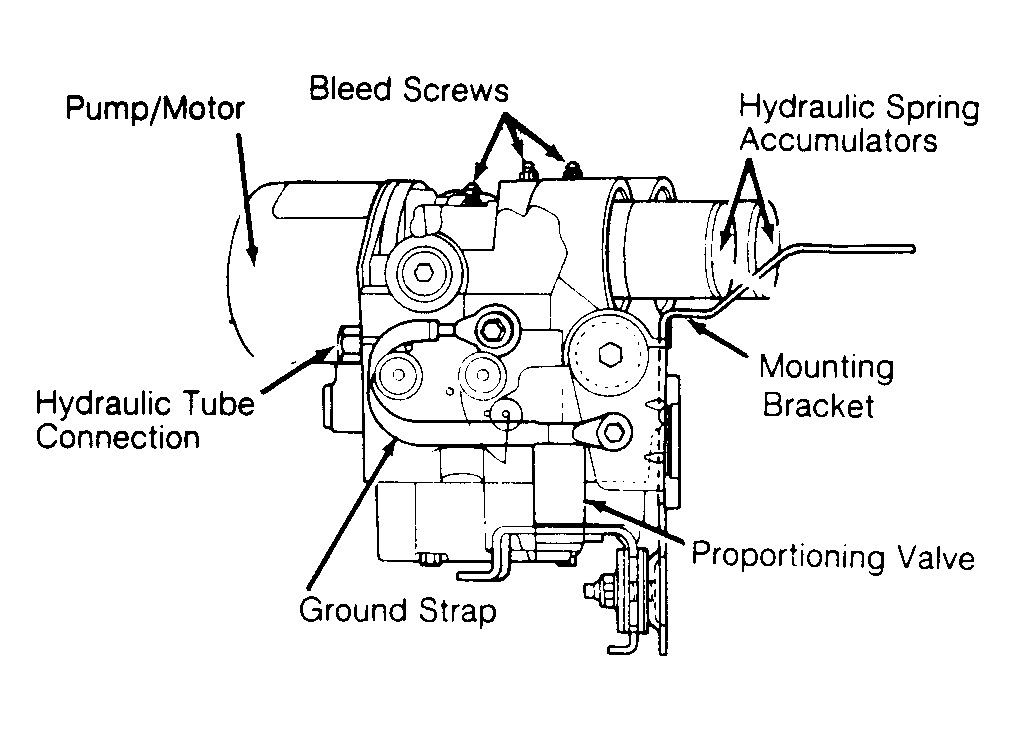

Fig 1: Locating Modulator Assembly Components

Courtesy of CHRYSLER CORP.
